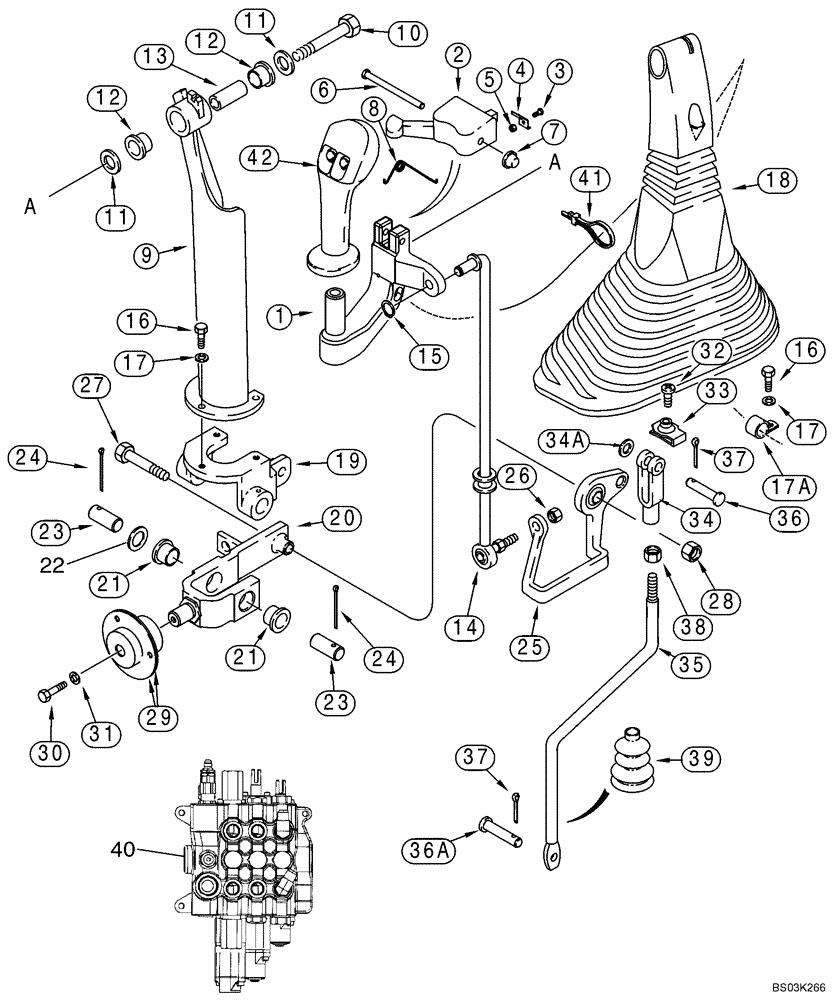

Запчасти Case 580M (09-02) - CONTROLS - LOADER CLAM (09) - CHASSIS/ATTACHMENTS

1

297615A1

HANDLE

1шт.

2

123815A1

LATCH

1шт.

3

170-104

SCREW,Sl Pan Hd, #5 - 40 x 3/8"

2шт.

4

129914A1

SPRING

2шт.

5

225-14105

NUT,#5-40

2шт.

6

439-5436

HEADED PIN,1/4" x 2 1/4", G5

1шт.

7

143210A1

BLANK-OFF PLUG

CAP

1шт.

8

124243A1

SPRING

1шт.

9

123493A1

SUPPORT

1шт.

10

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

11

495-21044

WASHER,3/8"

2шт.

12

108088A1

BUSHING,15.96mm ID x 19.15mm OD x 15mm L

2шт.

13

133989A1

SLEEVE

1шт.

14

239306A1

THREADED ROD

1шт.

15

103-1437

SNAP RING,#37, Ext

1шт.

16

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

Replaces 614-6016 M6 x 16 Bolt Used On Some Models

3шт.

17

495-11028

WASHER,1/4", SAE

3шт.

17a

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

1шт.

18

133617A1

BOOT

1шт.

19

195615A1

SUPPORT

1шт.

20

176311A1

BELLCRANK

Incl. Ref 21

1шт.

21

108088A1

BUSHING,15.96mm ID x 19.15mm OD x 15mm L

2шт.

22

495-81184

WASHER,21/32" x 1 1/2" x .030"

1шт.

23

102761A1

PIN,15.91mm OD x 35mm L

2шт.

24

432-828

COTTER PIN,1/8" x 1 3/4"

2шт.

25

112382A1

BELLCRANK

Bellcrank

1шт.

26

425-116

NUT,3/8" - 24, Gr 5

1шт.

27

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

28

231-1446

NUT,3/8" - 16, Gr 5

1шт.

29

112380A1

BEARING ASSY

Incl (1) 465004R91 Internal Bearing

2шт.

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

1шт.

30

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

1шт.

31

396-41028

WASHER,.281" x 7/8" x .098", HDN

1шт.

32

87310126

SCREW,Phillips Drive, Pan HD, #10 - 24 x 3/4", SST

No. 10 x 3/4, Stainless Steel; Replaces 140-107 Non-Stainless Steel Screw Used On Some Models

1шт.

33

131-121

SPRING NUT,Tinn, U, #10-24

1шт.

34

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

1шт.

34a

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

1шт.

35

87428153

THREADED ROD

Clam Control Rod

1шт.

36

D149288

PIN,8.33mm OD x 30.66mm L

1шт.

36a

D149287

PIN,7.9mm OD x 26.72mm L

1шт.

37

432-612

COTTER PIN,3/32" x 3/4"

2шт.

38

425-116

NUT,3/8" - 24, Gr 5

1шт.

39

132873A1

BELLOWS

1шт.

189109A1

SPRING,Compression, 42mm OD

Boot Retainer

1шт.

40

REF

INSTRUCTION

LOADER CONTROL VALVE; Three Spool, See Figure 08-31 for Three Spool Valve Options

1шт.

41

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.

42

87412687

HANDLE

Loader Control Lever; Two Button, Declutch and Differential Lock Switches

1шт.

256347A1

CONNECTOR, ELEC,Male, 4 Cavities

CONNECTOR

1шт.

258616A1

LOCK

1шт.

298176A1

PLUG

1шт.

87301351

ADHESIVE

Permabond Adhesive, F246, 1 ml With No. 5 Initiator; For Attaching Ref 1 to Ref 42

1шт.
