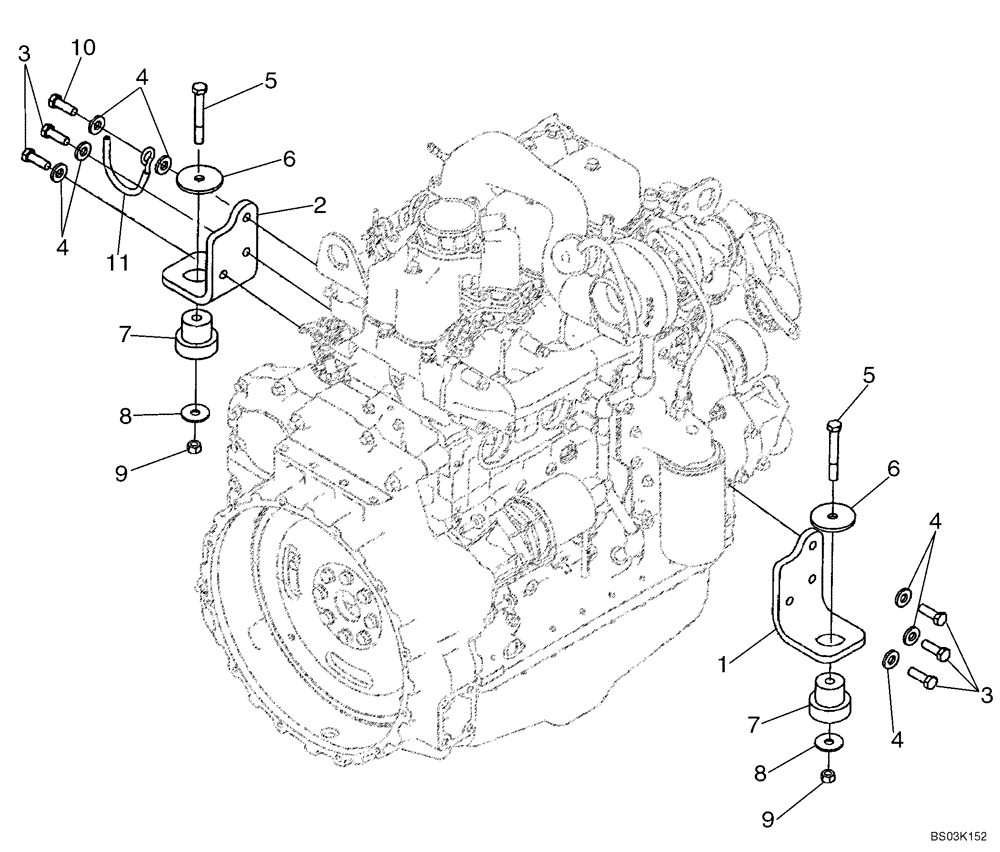

Запчасти Case 580M (02-07) - ENGINE - MOUNTING (02) - ENGINE

87437201

ENGINE

80hp Engine, 60 KW, Models Without Turbocharged Engine; Includes Parts On Figures 02-08 - 02-28, 02-30 - 02-41, 03-04 - 03-11; Replaces 86990708, 87437201 Engine

1шт.

87437201C

CORE-REPLACEMENT ENG

Return Number, For N.A. Only

1шт.

87437201R

REMAN-REPLACEMENT EN

580M Series 2, Naturally Aspirated, Tier 2 Emissions, N.A. Only

1шт.

87399201

ENGINE

80 hp Engine, Models Without Turbocharged Engine; Includes Parts On Figures 02-08 - 02-41, 03-4 - 03-11; Replaces 86990708, 87437201 Engine

1шт.

84284125R

REMAN-BASIC ENGINE,4 Cylinders, W/ Turbocharger

580M Series 2, T2 Eng., Aspiration

1шт.

84284125C

CORE-BASIC ENGINE

Return Number

1шт.

87399202

ENGINE

85 hp Engine, Models With Turbocharged Engine; Includes Parts On Figures 02-08 - 02-41, 03-4 - 03-11; Replaces 86990709, 87437202 Engine

1шт.

87399202R

REMAN-REPLACEMENT EN,63kW, 4 Cylinders, W/ Turbocharger

580M Series 2, w/NEF 4 Cyl., 2 Valve, Turbocharged, Tier 2 Engine(2/04)

1шт.

87399202C

CORE-REPLACEMENT ENG

Return Number

1шт.

87533516R

REMAN-SHORT ENGINE

580M Series 2,Tier 2 (2/04-) Reman Short Block For P/N 87399202

1шт.

87533516C

CORE-ENGINE

Return Number

1шт.

84284130R

REMAN-BASIC ENGINE

580M Series 2, T2 Eng., Aspiration LTC, Start Yr. 2/04, N.A. Only

1шт.

84284130C

CORE-BASIC ENGINE

Return Number, For N.A. Only

1шт.

1

87411319

ENGINE MOUNT

RH

1шт.

2

87411320

BRACKET

LH

1шт.

3

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

5шт.

4

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

7шт.

5

814-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8

2шт.

6

85801585

SEALING WASHER,13mm ID x 65mm OD x 5mm Thk

2шт.

7

87416966

ISOLATOR

Insulator, Rubber Mount

2шт.

8

85802618

SEALING WASHER,13mm ID x 41mm OD x 3mm Thk

2шт.

9

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

10

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

1шт.

11

87431799

SUPPORT

Hose

1шт.
