Артикул
Название
Примечание
Количество
1
128760A1

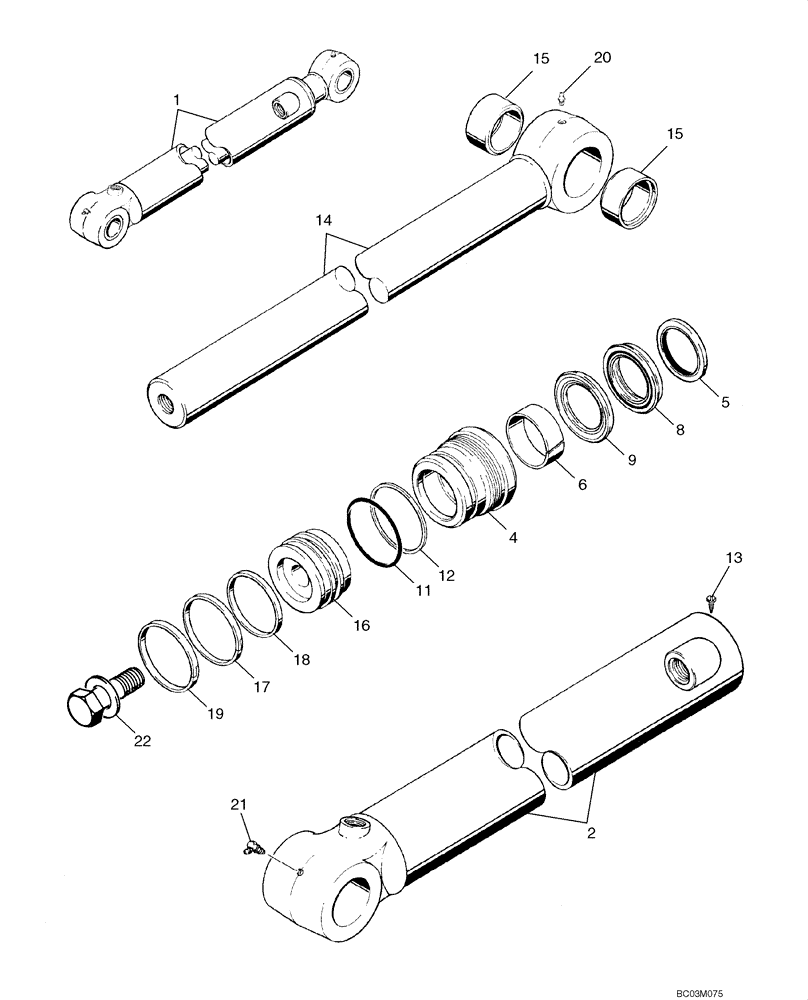

CYLINDER ASSY.,Double Acting, 57.2mm Rod, 871.7mm Stroke
83 ID x 872 mm strk, Incl. Ref 2 - 22
1шт.
1
128760A1R
REMAN-HYD CYLINDER
Bucket Cylinder - For N.A. Only
1шт.
1
128760A1C
CORE-HYD CYLINDER
Bucket Cylinder - For N.A. Only
1шт.
2
128761A1
TUBE,82.5mm Bore Dia
TUBE
1шт.
4
128770A2
CYLINDER END CAP
GLAND
1шт.
5
D95145
WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W
1шт.
6
1346476C1
RING,57.15mm ID, Int
1шт.
SEAL KIT,57.2mm Rod
Rod and Buffer; Incl. Ref 8, 9; Not Serviced Separately; Order 131750A2 Seal Kit
1шт.
8
NSS
NOT SOLD SEPARAT
Rod Seal; Order 131750A2 Seal Kit
1шт.
9
NSS
NOT SOLD SEPARAT
Buffer Seal; Order 131750A2 Seal Kit
1шт.
11
238-5233
O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro
1шт.
12
G32122
BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk
Backup
1шт.
13
276-2446
SELF-TAP SCREW,Hex Hd, #8 x 3/8"
1шт.
14
198033A1
PISTON ROD
57 mm (2-1/4 in) dia, Incl. Ref 15
1шт.
15
D140029
BUSHING,50.22mm ID x 60mm OD x 25.5mm L
2шт.
16
128772A1
PISTON
1шт.
17
G102287
SEAL,Locking, 79.07mm ID x 83.8mm OD x 6.96mm Thk
1шт.
18
S109444
RING,Square, 5.28mm Thk x 68.96mm ID
1шт.
19
S109445
RING,82.55mm OD, Ext
1шт.
20
219-1
LUBE NIPPLE,1/8" - 27 NPTF
1шт.
21
219-36
LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF
1шт.
22
86982441
SPECIAL BOLT,Hex, 12, 1 1/4 x 3"
1,25 x 3,00; Incl. Washer
1шт.
Выбрано товаров: 23
