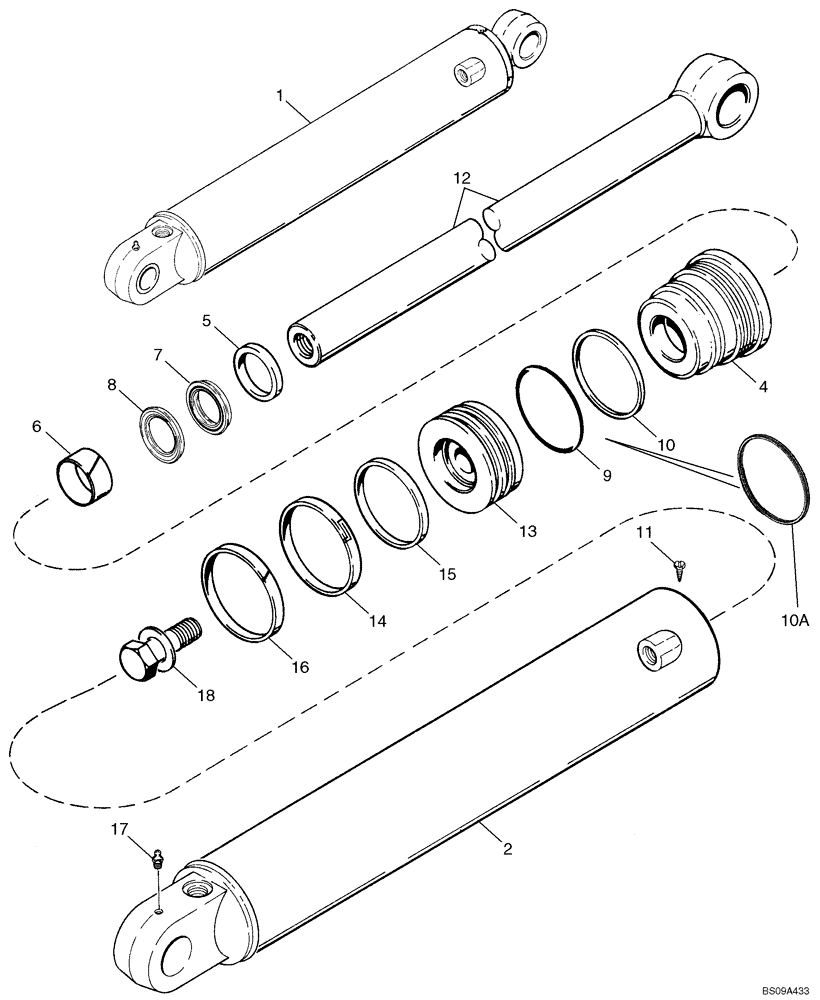

Запчасти Case 580M (08-61) - CYLINDER ASSY - BACKHOE STABILIZER (08) - HYDRAULICS

1

195503A1

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 553.3mm Stroke

102 ID x 553 mm strk, RH, Incl. Ref 2 - 18

1шт.

1

195503A1R

REMAN-HYD CYLINDER

580M SERIES 2 LOADER BACKHOE (TIER 2) (NA), 102 ID x 553 mm strk, RH (2/04-)

1шт.

1

195503A1C

CORE-HYD CYLINDER

Return Number

1шт.

1

195504A1

CYLINDER,Double Acting, 50.8mm Rod, 553.3mm Stroke

102 ID x 553 mm strk, LH, Incl. Ref 2 - 18

1шт.

1

195504A1R

REMAN-HYD CYLINDER

580M SERIES 2 LOADER BACKHOE (TIER 2) (NA), LH (2/04-)

1шт.

1

195504A1C

CORE-HYD CYLINDER

Return Number

1шт.

2

195505A1

TUBE,101.47mm Bore Dia

RH

1шт.

2

195506A1

TUBE,101.47mm Bore Dia

LH

1шт.

4

128135A2

GLAND

1шт.

1543269C1

SEAL KIT

Seal, Incl. Ref 5 - 10, 14 - 16, No Longer Used, For Service Order 84155087 Seal Kit

1шт.

84155087

SEAL KIT

Repair; Incl. Ref 5 - 8, 10A, 14 - 16

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper

1шт.

6

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

1шт.

1542876C1

SEAL KIT,50.8mm Rod

Rod and Buffer Seal; Incl Ref 7, 8; Not Serviced Separately; Order 1543269C1 or 84155087 Seal Kit

1шт.

7

NSS

NOT SOLD SEPARAT

Rod Seal; Order 1543269C1 or 84155087 Seal Kit

1шт.

8

NSS

NOT SOLD SEPARAT

Buffer Seal; Order 1543269C1 or 84155087 Seal Kit

1шт.

9

238-5239

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

Replaced by ref# 10A

1шт.

10

G109299

BACK-UP RING,94.87mm ID x 97.67mm OD x 1.4mm Thk

Replaced by ref# 10A

1шт.

10a

87615482

SEAL,93.85mm ID x 104.57mm OD x 4.85mm Thk

Static Head

1шт.

11

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

12

123726A1

PISTON ROD

51 mm (2 in) dia

1шт.

13

G108123

PISTON,100.94mm Bore, 50.9mm Rod, 50.65mm W

1шт.

14

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

1шт.

15

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

1шт.

16

G100448

RING,101.6mm OD, Ext

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

18

86982440

SPECIAL BOLT,Hex, 1-1/4' x 2.75

1,25 x 2,75; Incl. Washer

1шт.
