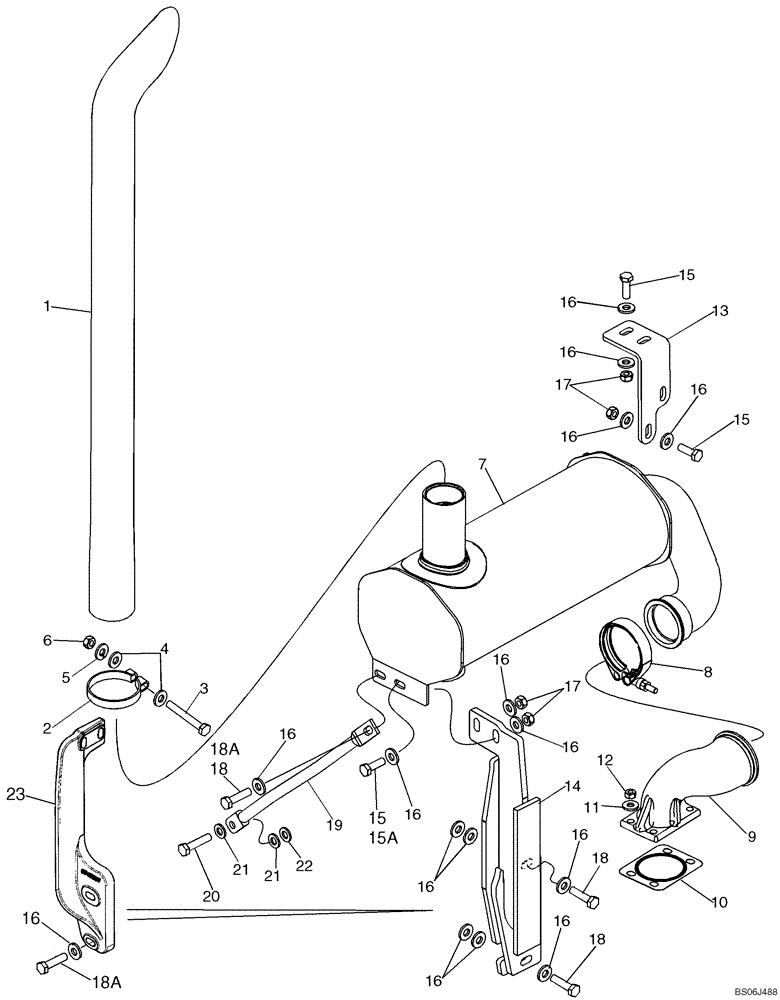

Запчасти Case 580M (02-06B) - MUFFLER - EXHAUST SYSTEM (WITHOUT TURBOCHARGER) (02) - ENGINE

1

87309656

EXHAUST SYSTEM PIPE

844 mm (33-1/4 in) Long Stack; Replaces 87437805 868 mm (34-11/64 in) Long Stack

1шт.

2

87437804

PIPE CLAMP,94mm ID

Stack

1шт.

3

614-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8, Full Thd

1шт.

4

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

5

892-11010

LOCK WASHER,M10

1шт.

6

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

7

87440555

MUFFLER

Naturally Aspirated Engine

1шт.

8

A170467

CLAMP,72mm ID

Includes Hardware

1шт.

9

87410196

ELBOW

1шт.

10

J936995

GASKET,0.51mm Thk

1шт.

11

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

12

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

13

87423531

BRACKET, SUPPORTING

Front Support Bracket

1шт.

14

87441285

BRACKET, SUPPORTING

Rear Support Bracket; Weldment; No Longer Available, Order 87451167, Ref 23

1шт.

15

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4-5шт.

15a

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

Used with Ref 23 Cast Bracket

1шт.

16

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

14-18шт.

17

829-1410

NUT,M10 x 1.5, Cl 10.9

6шт.

18

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

Used with Ref 14 Welded Bracket

3шт.

18a

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

Used with Ref 23 Cast Bracket

3шт.

19

87442357

BRACE

1шт.

20

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

21

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

22

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

Used as a shim

1шт.

23

87451167

SUPPORT

Rear Support; Cast

1шт.
