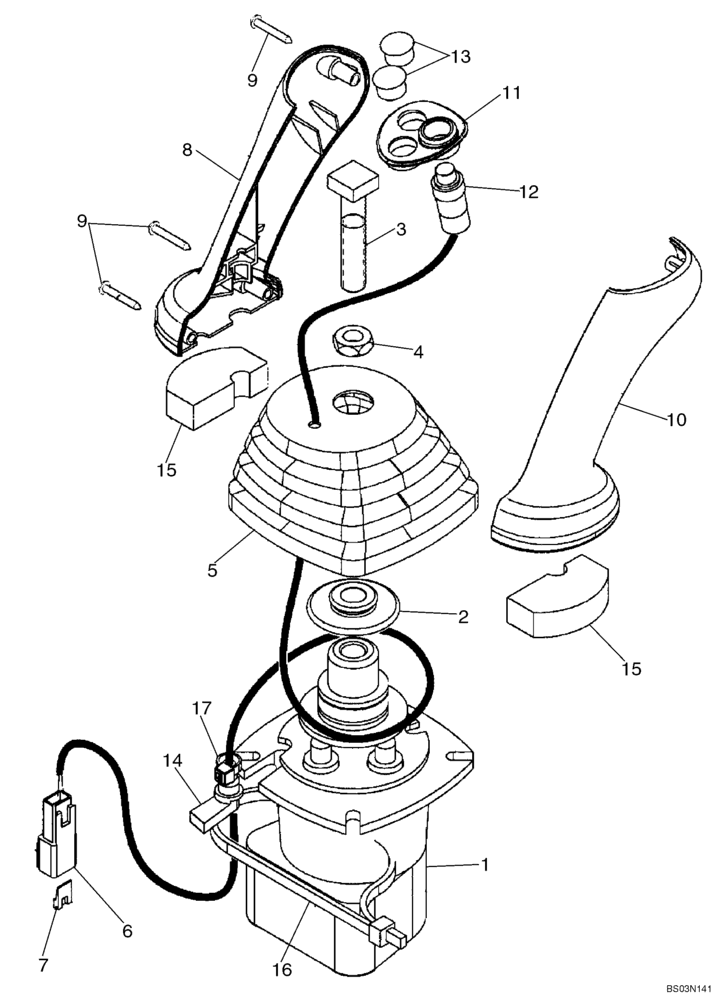

Запчасти Case 580M (08-50) - VALVE, JOYSTICK (PILOT CONTROLS) (LEFT-HAND) WITH HORN BUTTON (08) - HYDRAULICS

87308844

JOYSTICK

Pilot Controls, LH; With Horn Button; Includes 86983311 Base Valve; Incl. Ref 1, 2 - 17; Replaces 87443740; Part Number Stamped On Valve Base; No Longer Available, For Service Order 87388704

1шт.

1

86983311

CONTROL VALVE

Pilot Control Joystick Valve; Included in 87308844 Joystick Control Valve; Incl 84127469, 84127480, 84127481; If Used

1шт.

1-1

84127469

KIT

Brass Guide (18mm OD x 35mm L) (2 Brass Guides per Kit)

2шт.

1-2

84127481

VALVE SECTION

4шт.

1-3

84127480

SPRING KIT

Set of 4 Return Springs

1шт.

87388704

JOYSTICK

Pilot Controls, LH; With Horn Button; Includes 87398960 Base Valve; Incl. Ref 1, 2 - 17; Part Number Stamped On Valve Base; If Used

1шт.

1

87398960

PILOT VALVE

Pilot Control Joystick Valve; Included in 87388704 Joystick Control Valve; Incl 87586760, 87586772, 87586773; If Used; Not Illustrated

1шт.

1-1

87586760

PLUNGER

Brass Guide

4шт.

1-2

87586772

PLATE

4шт.

1-3

87586773

KIT

Set of 4 Return Springs

1шт.

87685948

JOYSTICK

Pilot Controls, LH; With Horn Button; Includes 87687141 Base Valve; Incl. 1, 2 - 17; Part Number Stamped On Valve Base; If Used

1шт.

1

87687141

PILOT VALVE

Pilot Control Joystick Valve; Included in 87685948 Joystick Control Valve; Incl. 87473380, 87586772, 87586773; If Used; Not Illustrated

1шт.

1

87687141R

REMAN-HYD VALVE

Pilot Control Joystick Valve; Included in 87685948 Joystick Control Valve; Incl. 87473380, 87586772, 87586773; If Used; Not Illustrated

1шт.

1

87687141C

CORE-VALVE HYD

Core Return Number

1шт.

1-1

87473380

GUIDE

Plunger Assy, Guide (43mm OD x 22mm L)

4шт.

1-2

87586772

PLATE

Spring

4шт.

1-3

87586773

KIT

Set of 4 Return Springs

1шт.

87586776

HANDLE

Incl. Ref 2 - 17

1шт.

2

87436225

RETAINER,12.5mm ID, 46mm OD

Control Boot Retainer

1шт.

3

87428023

BOLT,Square Head, M12 x 1.75 x 60

Square Head Bolt

1шт.

4

87037944

THIN NUT,Thin, M12 x 1.75, Cl 05

1шт.

5

87443721

BOOT

Control Handle

1шт.

6

225315C1

ELEC CONNECTOR,Male, 2 Pin

1шт.

7

225318C1

ELEC CONNECTOR,2 Pin

Connector

1шт.

8

87308838

HANDLE GRIP

Joystick Control Handle; Replaces 87428164

1шт.

9

15687475

SELF-TAP SCREW,Pan Hd, M3.5 x 25mm, SST

Replaces 87032819 Black Zinc Plated Screw, Which Is Used In Other Applications

3шт.

10

87308839

HANDLE GRIP

Joystick Control Handle; Replaces 87428165

1шт.

11

87435243

BEZEL

Switch Mounting

1шт.

12

87437372

SWITCH ASSY

Push Button Horn

1шт.

13

86625128

PLUG,Dome, .562" hole, Nylon

2шт.

14

87424267

GROMMET

Wire

1шт.

15

87435506

SEAL,52mmL

Pilot Control Handle Seal, Lower

2шт.

16

87438046

CABLE TIE,375.9 mm L x 8mm W

CABLE STRAP

1шт.

17

87000312

CABLE TIE,4.8mm W x 203.2mm OAL, Nylon

CABLE STRAP

1шт.
