Запчасти Case 580M (08-39A) - VALVE SECTION - INLET (WITH PILOT CONTROLS) (08) - HYDRAULICS

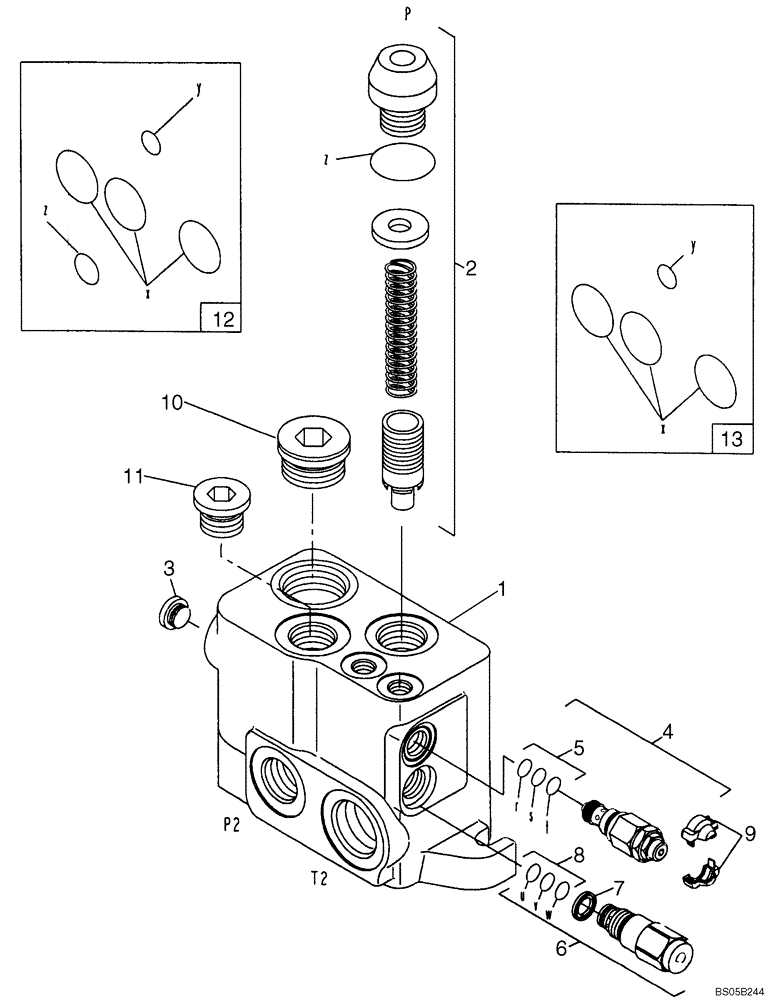

Схема запчастей Case 580M - (08-39A) - VALVE SECTION - INLET (WITH PILOT CONTROLS) (08) - HYDRAULICS
2
9
1
5
7
3
8
12
11
6
13
4
10

Артикул

Название

Примечание

Количество

87441495

HYD VALVE SECTION

Inlet Section; With Orifice Threaded In LS Cavity; Incl. Ref 1 - 13

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

85820129

KIT

Relief Valve Regulator; Component Parts Not Serviced Separately

1шт.

3

85811923

PLUG,9/16" UNF

1шт.

4

85811946

VALVE PRESSURE RELIE

LS Port; Incl. Ref 5

2шт.

5

85821236

SEAL KIT

LS Relief Valve; Includes (2) O-Rings, (1) Thrust Ring

1шт.

6

85820128

REGULATOR

Regulator, Flow; Incl. Ref 7, 8

1шт.

7

85817669

FILTER

For Regulated Drain Flow

1шт.

8

85821235

SEAL KIT

Includes (2) O-Rings, (1) Thrust Ring

1шт.

9

85811934

COVER,Half, Orange

Two Piece; If Used

1шт.

9

85811935

COVER,Half, Blue

Two Piece; If Used

1шт.

10

85811922

PLUG,1'5/16-UNF 2A

1-5/16

1шт.

11

85811921

PLUG

1-1/16

1шт.

12

85825477

SEAL KIT

Low Pressure Inlet Elements; Includes (5) O-Rings

1шт.

13

85825473

SEAL KIT

Between Elements; Includes (4) O-Rings

1шт.

Выбрано товаров: 15
