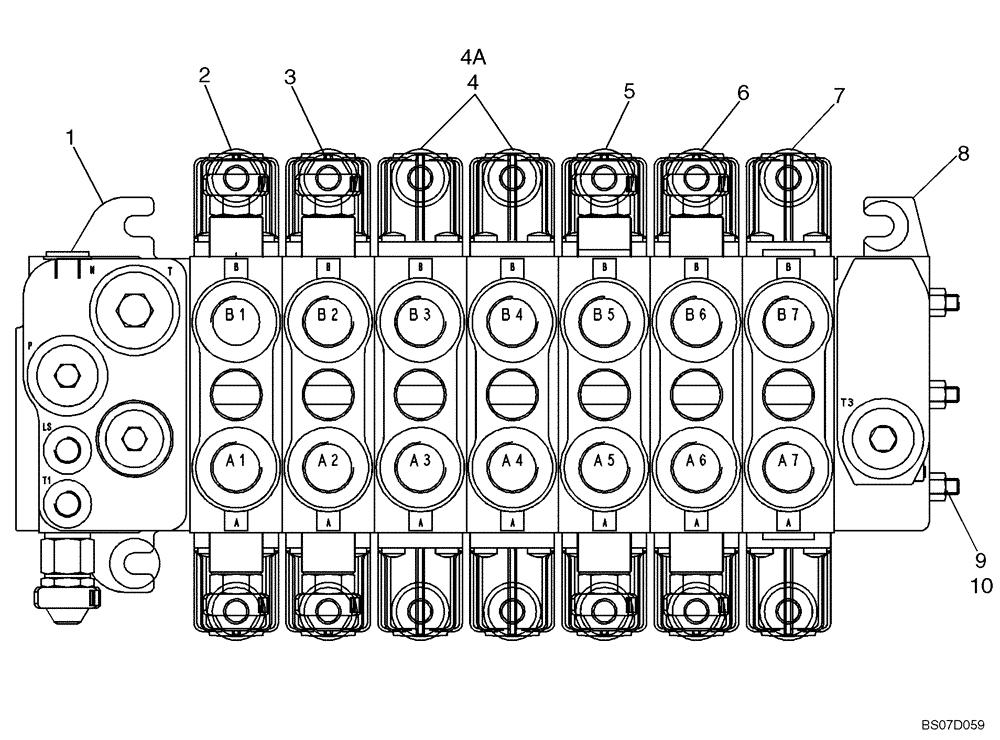

Запчасти Case 580M (08-37) - VALVE ASSY - BACKHOE CONTROL, 7 SPOOL (W/ EXT DIPPER, W/ OR W/O AUX HYDS, W/ PILOT CONTROLS) (08) - HYDRAULICS

86987460

CONTROL VALVE

Backhoe, 7 Spool; Rexroth No. 08 401 167; Check Data Plate On Valve For Part Number; Incl. Ref 1 - 3, 4, 5 - 10; If Used

1шт.

87577346

CONTROL VALVE

Backhoe 7 Spool; Rexroth No. 08 402 663; Check Data Plate On Valve For Part Number; Incl. Ref 1 - 3, 4A, 5 - 10; If Used

1шт.

1

87441495

HYD VALVE SECTION

Inlet Section; With Orifice Threaded In LS Cavity; See Figure 08-39A

1шт.

2

85826339

HYD VALVE SECTION

Swing Section; See Figure 08-40

1шт.

3

85826337

HYD VALVE SECTION

Boom Section; See Figure 08-41

1шт.

4

85826340

HYD VALVE SECTION

Stabilizer Section; 86987460 Valve; See Figure 08-42; If Used

2шт.

4a

87617618

HYD VALVE SECTION

Stabilizer Section; Without Flow Sharing to Provide Open Center Performance; 87577346 Valve; See Figure 08-42; If Used

2шт.

5

85826338

HYD VALVE SECTION

Dipper Section; See Figure 08-43

1шт.

6

85826365

HYD VALVE SECTION

Bucket Section; See Figure 08-44

1шт.

7

85826341

HYD VALVE SECTION

Extendable Dipper Section; See Figure 08-45

1шт.

8

NSS

NOT SOLD SEPARAT

Outlet Section

1шт.

9

NSS

NOT SOLD SEPARAT

Tie Bolt

3шт.

10

NSS

NOT SOLD SEPARAT

Nut

3шт.
