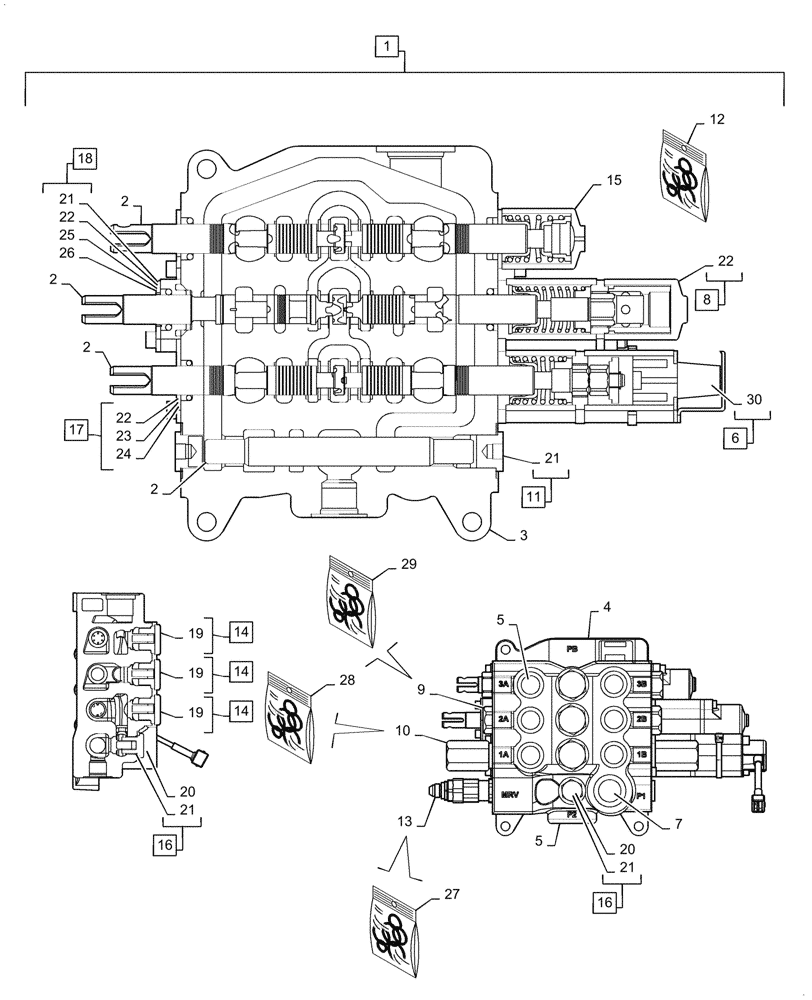

Запчасти Case 580M (08-31B) - VALVE ASSY - LOADER CONTROL, THREE SPOOL (08) - HYDRAULICS

1

48009554

VALVE

Loader, 3 Spool, Dual Stage R/V, Assy, Incl 2 - 30

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

NSS

NOT SOLD SEPARAT

Housing

1шт.

4

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

1шт.

5

86625138

PLUG,7/18" - 14

2шт.

6

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

Incl 30

1шт.

7

83981068

STOP PLUG,Hex, 1/16 - 12 UN

Shut-Off

1шт.

8

87426227

DETENT

Incl 22

1шт.

9

81868381

CHECK VALVE,1-1/16" - 12

Anti Void

2шт.

10

87450978

VALVE PRESSURE RELIE

2шт.

11

87426233

PLUG,7/8" Male

Incl 21

2шт.

12

84296788

SEAL KIT

1шт.

13

87426235

VALVE PRESSURE RELIE

2 Stage

1шт.

14

87426238

VALVE, CHECK

Incl 19

3шт.

15

87426241

KIT

Endcap

1шт.

16

87426716

VALVE, CHECK

Incl 20, 21

1шт.

17

87440814

KIT

Assy, Incl 22 - 24

2шт.

18

87440815

PLATE

Assy, Incl 21 - 22, 25 26

1шт.

19

87455975

O-RING

3шт.

20

87309001

O-RING

1шт.

21

87455974

O-RING,0.097" Thk x 0.755" ID

3шт.

22

87454547

O-RING

3шт.

23

87454548

WIPER SEAL

2шт.

24

87455540

HEX SOC SCREW

4шт.

25

87455534

HEX SOC SCREW

2шт.

26

87455538

O-RING,0.125" Thk x 1" ID, -214, 70 Duro

1шт.

27

87455550

SERVICE KIT

1шт.

28

87455549

SEAL KIT

2шт.

29

87455580

O-RING KIT

2шт.

30

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
