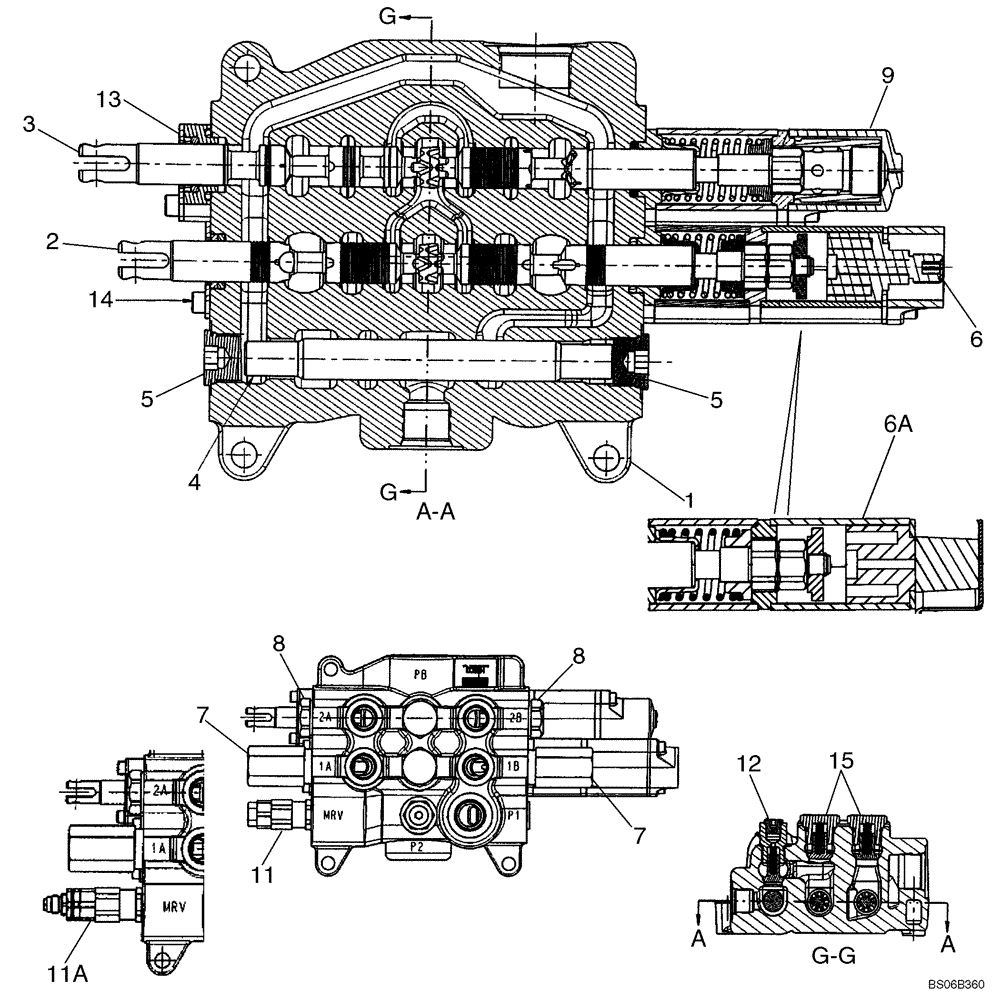

Запчасти Case 580M (08-30) - VALVE ASSY - LOADER CONTROL, TWO SPOOL (08) - HYDRAULICS

87434766

HYDRAULIC VALVE

Two Spool Loader Valve, Used On Models Without Pilot Controls; Incl. Ref 1 - 6, 7 - 11, 12 - 15; No Longer Used, Order 87351494 Valve

1шт.

87351494

HYDRAULIC VALVE

Two Spool Loader Valve, Used On Models Without Pilot Controls; Incl. Ref 1 - 5, 6A - 11, 12 - 15

1шт.

87434768

HYDRAULIC VALVE

Two Spool Loader Valve, Used On Models With Pilot Controls; Incl. Ref 1 - 6, 7 - 9, 11A - 15; No Longer Used, Order 87351498 Valve

1шт.

87351498

HYDRAULIC VALVE

Two Spool Loader Valve, Used On Models With Pilot Controls; Incl. Ref 1 - 5, 6A - 9, 11A - 15

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL, Bucket

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL, Lift

1шт.

4

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

5

87426233

PLUG,7/8" Male

7/8 - 14 NF Plug, Includes Serviceable (1) 87455974 O-Ring

2шт.

6

87426221

DETENT

(Return to Dig) Magnetic Detent Kit, Bucket; Included In 87434766 or 87434768 Valve, Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (1) 87310277 Magnet, (2) 87310278 Screw

1шт.

6a

84124604

KIT

(Return to Dig) Magnetic Detent Kit, Bucket; Included In 87351494 or 87351498 Valve, Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (1) 87515957 Magnet, (2) 87310278 Screw; Replaces 87515955

1шт.

7

87450978

VALVE PRESSURE RELIE

Assembly; Replaces 87426232; Component Parts Not Serviced Separately; Serviceable Includes (1) 87455549 Seal Kit

2шт.

8

81868381

CHECK VALVE,1-1/16" - 12

Load Check Valve, Anti-Void; Component Parts Not Serviced Separately; Includes Serviceable 87455580 Seal Kit

2шт.

9

87426227

DETENT

Manual Detent Assembly, Lift; Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (2) 87310275 Screw, (4) 87310276 Ball Bearing

1шт.

11

87426717

VALVE PRESSURE RELIE

Main Relief Valve Assembly, Single Stage; 87434766 or 87351494 Loader Valve, Models Without Pilot Controls; Component Parts Not Serviced Separately; Includes Serviceable 87455551 Seal Kit

1шт.

11a

87426235

VALVE PRESSURE RELIE

Main Relief Valve Assembly, Two Stage; 87434768 or 87351498 Loader Valve, Models With Pilot Controls; Component Parts Not Serviced Separately; Includes Serviceable 87455550 Seal Kit

1шт.

12

87426716

VALVE, CHECK

Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87455974 O-Ring, (1) 87309001 O-Ring, (1) 87446002 Poppet, (1) 87446003 Spring

1шт.

13

87440815

PLATE

Lift Spool Plate and Seal Assembly; Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (1) 87454548 Seal, (1) 87455538 O-Ring, (2) 87455534 Screw

1шт.

14

87440814

KIT

Bucket Spool Plate and Seal Assembly; Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (1) 87454548 Seal, (2) 87455540 Screw

1шт.

15

87426238

VALVE, CHECK

Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87455975 O-Ring

2шт.
