(08-23C) - VALVE ASSY - AUXILIARY UNI-DIRECTIONAL (WITH PILOT CONTROLS)

Запчасти Case 580M (08-23C) - VALVE ASSY - AUXILIARY UNI-DIRECTIONAL (WITH PILOT CONTROLS) (08) - HYDRAULICS

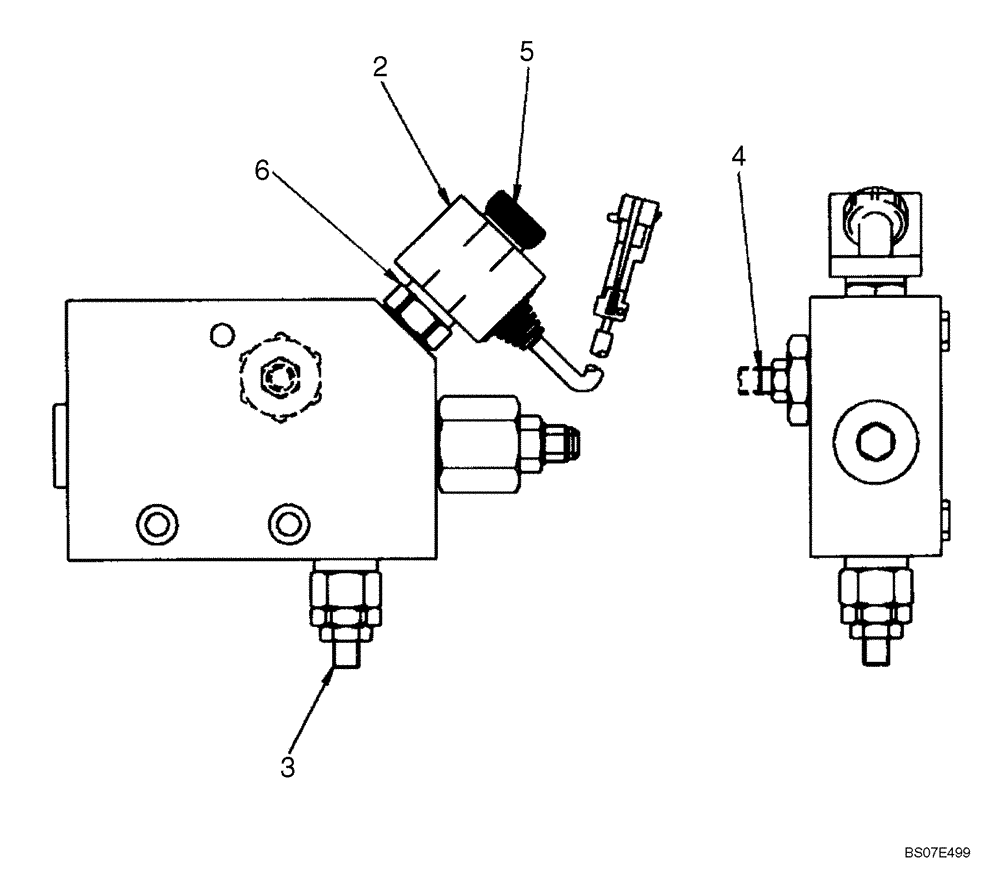

Схема запчастей Case 580M - (08-23C) - VALVE ASSY - AUXILIARY UNI-DIRECTIONAL (WITH PILOT CONTROLS) (08) - HYDRAULICS
5
3
6
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87421836

HYDRAULIC VALVE

See Fig. 08-23B, Serial Range: -N6C412133

1шт.

87448993

HYDRAULIC VALVE

Auxiliary Uni-Directional Valve; Inc. 1 - 6, Start Serial: N6C412134

1шт.

1

9970181

SEAL KIT

Miscellaneous Gaskets (Not Shown)

1шт.

2

87421832

COIL

Solenoid With Connector

1шт.

3

9970178

VALVE PRESSURE RELIE

1шт.

4

9970179

REGULATOR

Voltage

1шт.

5

9970384

RING NUT

Ring

1шт.

6

9970180

SOLENOID VALVE

1шт.
