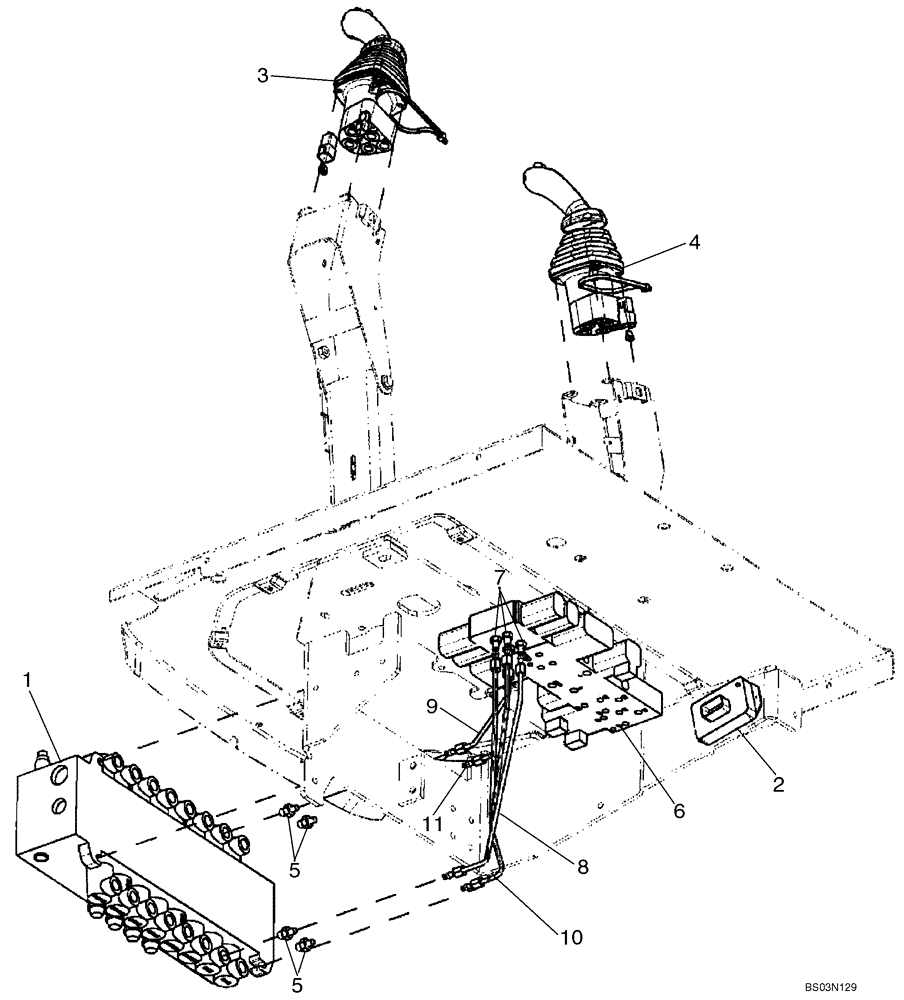

Запчасти Case 580M (08-20) - HYDRAULICS - VALVE, PILOT CONTROL AND JOYSTICKS (8 SPOOL, W/ EXT DIPPER, W/ AUX HYDS) (08) - HYDRAULICS

REF

INSTRUCTION

EIGHT SPOOL VALVE WITH EXTENDABLE DIPPER; WITH AUXILIARY HYDRAULICS; WITH AUTO-UP; WITH BI-DIRECTIONAL

1шт.

1

86987461

HYDRAULIC VALVE

Backhoe, 8 Spool; Rexroth No. 08 401 232; Check Data Plate On Valve For Part Number; See Figure 08-39; For Mounting See Figure 08-22; If Used

1шт.

1

87577349

CONTROL VALVE

Backhoe, 8 Spool; Rexroth No. 08 403 271; Check Data Plate On Valve For Part Number; See Figure 08-39; For Mounting See Figure 08-22; If Used

1шт.

2

87419455

CONTROL UNIT

Box, Pilot Control Power Supply Module

1шт.

840-1416

SCREW,Pan, M4 x 16mm, Cl 4.8

2шт.

3

87308845

CONTROL VALVE

JOYSTICK; LH; With Horn and Bi-Directional Buttons; Includes 86983311 Base Valve; See Figure 08-52; Replaces 87443741; Part Number Stamped On Valve Base; If Used

1шт.

3

87388708

JOYSTICK

LH; With Horn and Bi-Directional Buttons; Includes 87398960 Base Valve; See Figure 08-52; Part Number Stamped On Valve Base; No Longer Available, For Service Order 87685952

1шт.

3

87685952

JOYSTICK

LH; With Horn and Bi-Directional Buttons; Includes 87687141 Base Valve; See Figure 08-52; Part Number Stamped On Valve Base; If Used

1шт.

4

87308847

JOYSTICK

RH; Includes 86983311 Base Valve; See Figure 08-54; Replaces 87443743; Part Number Stamped On Valve Base; No Longer Available, For Service Order 87685955

1шт.

4

87388705

JOYSTICK

RH; Includes 87398960 Base Valve; See Figure 08-54; Part Number Stamped On Valve Base; No Longer Available, For Service Order 87685955

1шт.

4

87685955

JOYSTICK

Joystick; RH; Includes 87687141 Base Valve; See Figure 08-54; Part Number Stamped On Valve Base; If Used

1шт.

5

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

Incl. 237-6006 O-Ring

4шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

6

87434621

CONTROL VALVE

Pressure Reducing, 4 Spool; See Figure 08-49

1шт.

7

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl. 237-6004 O-Ring

4шт.

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

8

87437633

HYD TUBE

To Lower Extendable Dipper Port

1шт.

B Port White/Blue to E

1шт.

9

87437635

HYD TUBE

To Upper Extendable Dipper Port

1шт.

A Port White to F

1шт.

10

87440835

HYD TUBE

To Lower Auxiliary Port

1шт.

11

87440837

HYD TUBE

To Upper Auxiliary Port

1шт.
