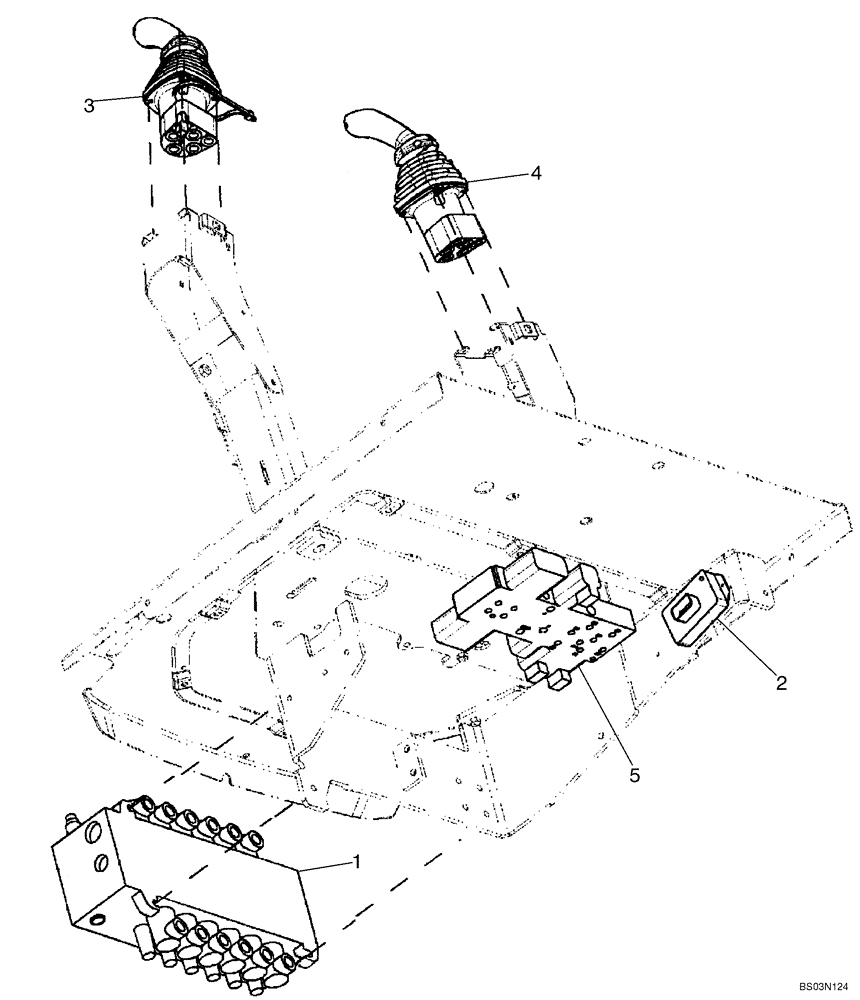

Запчасти Case 580M (08-15) - HYDRAULICS - VALVE, PILOT CONTROL AND JOYSTICKS (6 SPOOL, W/O EXT DIPPER, W/O AUX HYDS) (08) - HYDRAULICS

REF

INSTRUCTION

SIX SPOOL VALVE WITHOUT EXTENDABLE DIPPER; WITH AUTO-UP; WITHOUT AUXILIARY HYDRAULICS, WITHOUT UNI-DIRECTIONAL OR BI-DIRECTIONAL

1шт.

1

86987459

CONTROL VALVE

Backhoe, 6 Spool; Rexroth No. 08 401 414; Check Data Plate On Valve For Part Number; See Figure 08-36; For Mounting See Figure 08-22; If Used

1шт.

1

87577343

CONTROL VALVE

Backhoe, 6 Spool; Rexroth No. 08 403 273; Check Data Plate On Valve For Part Number; See Figure 08-36; For Mounting See Figure 08-22; If Used

1шт.

2

87419454

MODULE

Box, Pilot Control Power Supply Module

1шт.

840-1416

SCREW,Pan, M4 x 16mm, Cl 4.8

2шт.

3

87308844

JOYSTICK

LH; With Horn Button; Includes 86983311 Base Valve; See Figure 08-50; Replaces 87443740; Part Number Stamped On Valve Base; No Longer Available, For Service Order 87388704

1шт.

3

87388704

JOYSTICK

LH; With Horn Button; Includes 87398960 Base Valve; See Figure 08-50; Part Number Stamped On Valve Base; If Used

1шт.

3

87685948

JOYSTICK

LH; With Horn Button; Includes 87687141 Base Valve; See Figure 08-50; Part Number Stamped On Valve Base; If Used

1шт.

4

87308840

JOYSTICK

RH; Includes 86983311 Base Valve; See Figure 08-53; Replaces 87443739; Part Number Stamped On Valve Base; No Longer Available, For Service Order 87388706

1шт.

4

87388706

JOYSTICK

RH; Includes 87398960 Base Valve; See Figure 08-53; Part Number Stamped On Valve Base; If Used

1шт.

4

87685954

JOYSTICK

RH; Includes 87687141 Base Valve; See Figure 08-53; Part Number Stamped On Valve Base; If Used

1шт.

5

85827472

HYDRAULIC VALVE

Pressure Reducing, 2 Spool; See Figure 08-47

1шт.
