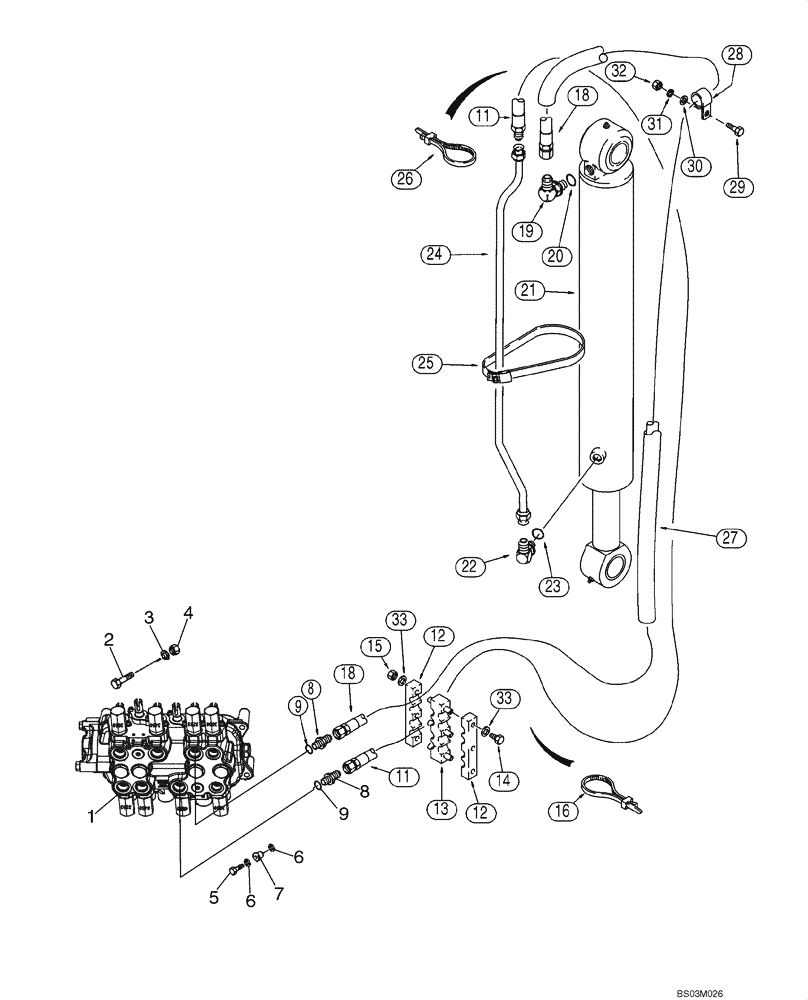

Запчасти Case 580M (08-10) - HYDRAULICS - CYLINDER, BACKHOE BOOM (08) - HYDRAULICS

1

REF

INSTRUCTION

Valve Assy, Control; Backhoe Control Valve; For Correct Assembly and Components, See Figures 08-32 - 08-39

1шт.

2

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

2шт.

3

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

4

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

5

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

Replaces 614-10040 M10 x 40 Bolt Used On Some Models

1шт.

6

496-41041

WASHER,13/32" x 1 1/8" x .134"

2шт.

7

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

1шт.

8

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref 9

2шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss Seal

1шт.

11

397786A1

HOSE ASSY.,12.7mm ID x 3470mm L

3470 mm (136-5/8 in), Lower Valve Port

1шт.

12

178951A1

CLAMP

2шт.

13

178952A1

CLAMP

1шт.

14

814-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 8.8

3шт.

15

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

4шт.

18

393369A1

HOSE ASSY.,15.88mm ID x 3495mm L

3495 mm (137-5/8 in)

1шт.

19

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. Ref 20

1шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss Seal

1шт.

21

189653A2

CYLINDER ASSY.,Double Acting, 57.2mm Rod, 981.5mm Stroke

114 ID x 982 mm strk, Boom Cylinder, See Figure 08-63

1шт.

21

189653A2R

REMAN-HYD CYLINDER

580M SERIES 2 LOADER BACKHOE (TIER 2) (NA), Boom Cylinder (2/04-)

1шт.

21

189653A2C

CORE-HYD CYLINDER

Return Number

1шт.

22

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. Ref 23

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss Seal

1шт.

24

357471A1

TUBE,15.88 mm OD, 923, 75 mm Length

1шт.

25

214-1488

HOSE CLAMP,130.05mm - 152.4mm

2шт.

26

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

4шт.

27

224057A1

SLEEVE

946 mm (37-15/64 in)

2шт.

28

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

28

R24840

CLAMP,1.12", Coat, 0.41" Bolt Hole, P Type

1-1/8 in ID

1шт.

29

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

30

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

31

892-11010

LOCK WASHER,M10

2шт.

32

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

33

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.
