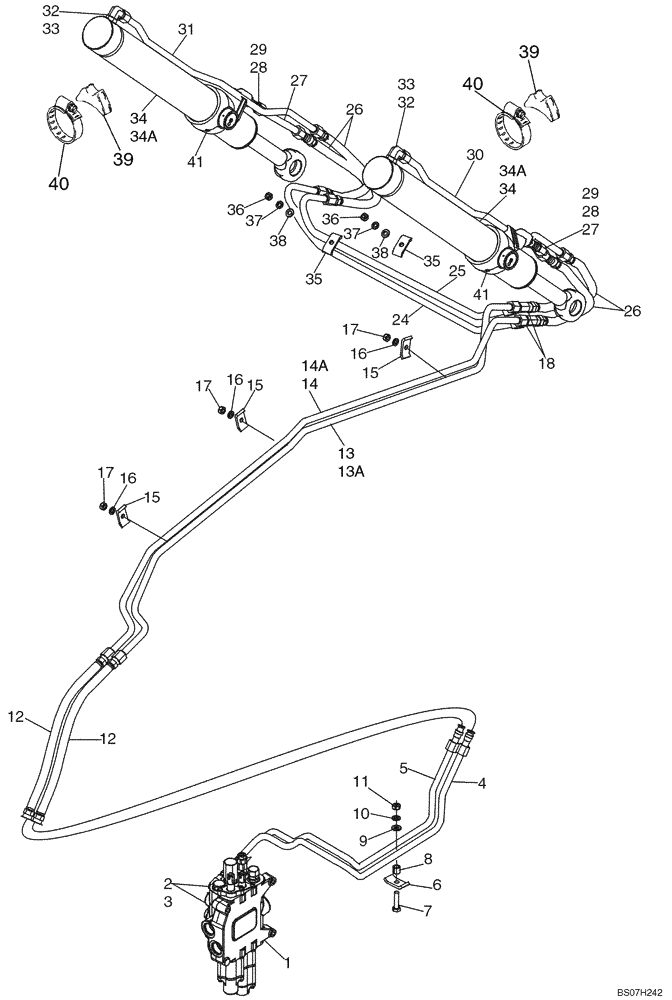

Запчасти Case 580M (08-05) - HYDRAULICS - CYLINDER, LOADER BUCKET (08) - HYDRAULICS

1

REF

INSTRUCTION

LOADER CONTROL VALVE; For Correct Assembly and Components, See Figures 08-34, 08-35; For Mounting, See Figure 09-01

1шт.

2

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. Ref 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss Seal

1шт.

4

87421918

HYDRAULIC HOSE

Upper Bucket Port

1шт.

5

87421920

HYDRAULIC HOSE

Lower Bucket Port

1шт.

6

D138055

CLAMP

1шт.

7

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

8

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

1шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

10

892-11010

LOCK WASHER,M10

1шт.

11

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

12

87429287

HYDRAULIC HOSE,7/8" - 14 JIC, 710mm L

710 mm (28 in)

2шт.

13

418789A1

HYD TUBE

To Upper Port; Used With 87426379 Loader Arm, See Figure 09-04

1шт.

13a

87610317

HYD TUBE

To Upper Port; Used With 87566994 Loader Arm, See Figure 09-04A

1шт.

14

418791A1

HYD TUBE

Used With 87426379 Loader Arm, See Figure 09-04

1шт.

14a

87610320

HYD TUBE,15.88 mm OD x 1607 mm L

Used With 87566994 Loader Arm, See Figure 09-04A

1шт.

15

D138055

CLAMP

3шт.

16

892-11010

LOCK WASHER,M10

3шт.

17

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

18

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

2шт.

24

196815A1

TUBE

Rear

1шт.

25

196813A1

TUBE

Front

1шт.

26

371031A1

HYDRAULIC HOSE,3/8" ID x 940mm L

840 mm (33")

4шт.

27

87316049

RIGID TUBE

Bucket Cylinder Rod End; Replaces 192152A1

2шт.

28

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Incl. Ref 29

2шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss Seal

1шт.

30

87316270

TUBE

Right-Hand Cylinder Closed End; Replaces 192156A1

1шт.

31

87316264

RIGID TUBE

Left-Hand Cylinder Closed End; Replaces 192154A1

1шт.

32

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. Ref 33

2шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss Seal

1шт.

34

113133A2

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 522.3mm Stroke

76 ID x 522 mm strk; Loader Bucket Cylinder; See Figure 08-63; Used With 87426379 Loader Arm, See Figure 09-04

2шт.

34

113133A2R

REMAN-HYD CYLINDER

Bucket Cylinder - For N.A. Only

1шт.

34

113133A2C

CORE-HYD CYLINDER

Bucket Cylinder - For N.A. Only

1шт.

34a

87609669

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 522.3mm Stroke

76 ID x 522 mm strk; Loader Bucket; See Figure 08-63A; Used With 87566994 Loader Arm, See Figure 09-04A

2шт.

35

D138055

CLAMP

2шт.

36

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

37

892-11010

LOCK WASHER,M10

2шт.

38

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

39

L79937

SADDLE

2шт.

40

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

2шт.

41

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.
