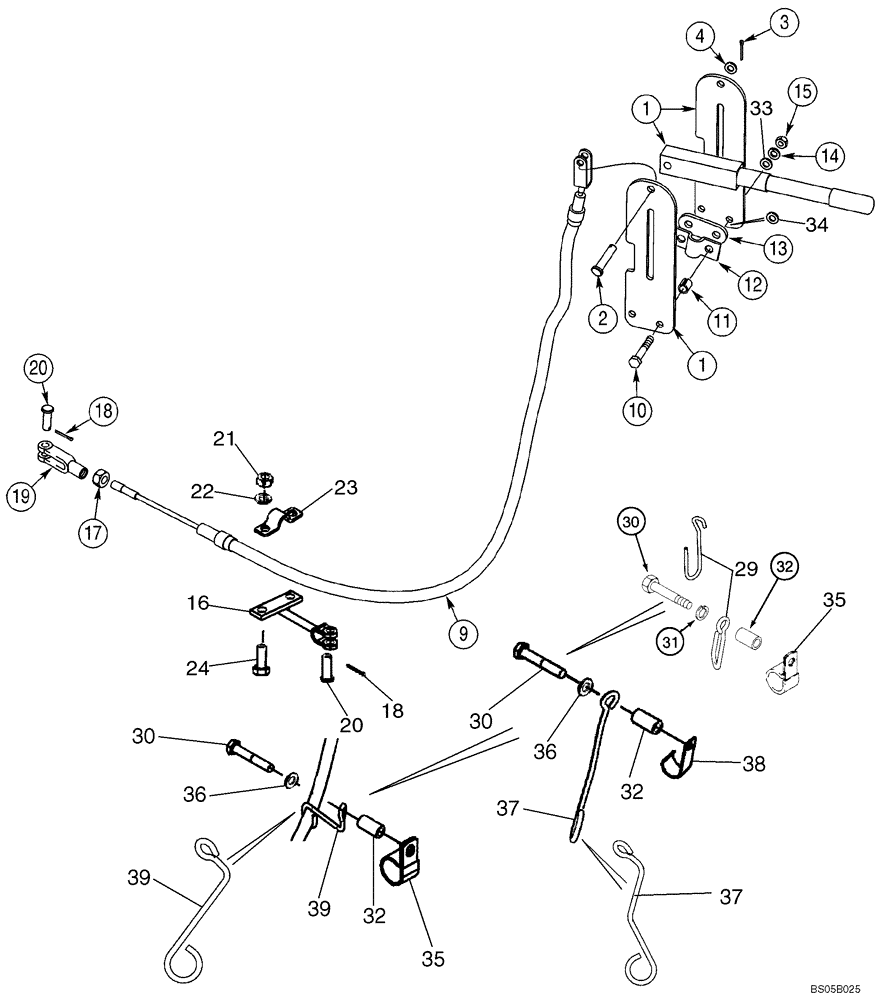

Запчасти Case 580M (07-06) - CONTROLS - BRAKE, PARKING (07) - BRAKES

367977A1

LEVER

Incl. Ref 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

Lever

1шт.

2

NSS

NOT SOLD SEPARAT

Pin, Clevis

1шт.

3

432-612

COTTER PIN,3/32" x 3/4"

1шт.

4

495-21038

WASHER,5/16"

1шт.

9

280681A1

CABLE,1325mm L

1325 mm (52-3/16 in); If Used

1шт.

9

87331077

CABLE ASSY.

1262 mm (49-11/16 in); If Used

1шт.

10

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

2шт.

11

87311354

SPACER,10.7mm ID x 17.1mm OD x 14.2mm L

Replaces D150633

2шт.

12

D121608

CLAMP

1шт.

13

D129747

PLATE

1шт.

14

892-11008

LOCK WASHER,8mm ID

2шт.

15

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

16

326348A1

SUPPORT

151 mm (6 in)

1шт.

17

425-156

JAM NUT,Jam, 3/8"-24, G5

1шт.

18

432-612

COTTER PIN,3/32" x 3/4"

2шт.

19

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

1шт.

20

D149288

PIN,8.33mm OD x 30.66mm L

2шт.

21

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

22

892-11010

LOCK WASHER,M10

2шт.

23

A188028

CLAMP

1шт.

24

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

29

87424794

SUPPORT

If Used

1шт.

30

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

31

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

If Used

1шт.

32

130245A1

SPACER

1шт.

33

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

34

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

35

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

P-Type, 1 inch Insulated Closed Clamping; Replaces 515-23254 & R14668 1 in P-Clamps; If Used

1шт.

36

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

If Used

1шт.

37

87453949

SUPPORT

If Used

1шт.

38

87032428

CLAMP,22.2mm, Coat, 10.3mm Bolt Hole, J Type

J-Type; 22.2 Clamp diameter; If Used

1шт.

39

87327489

WIRE

If Used

1шт.
