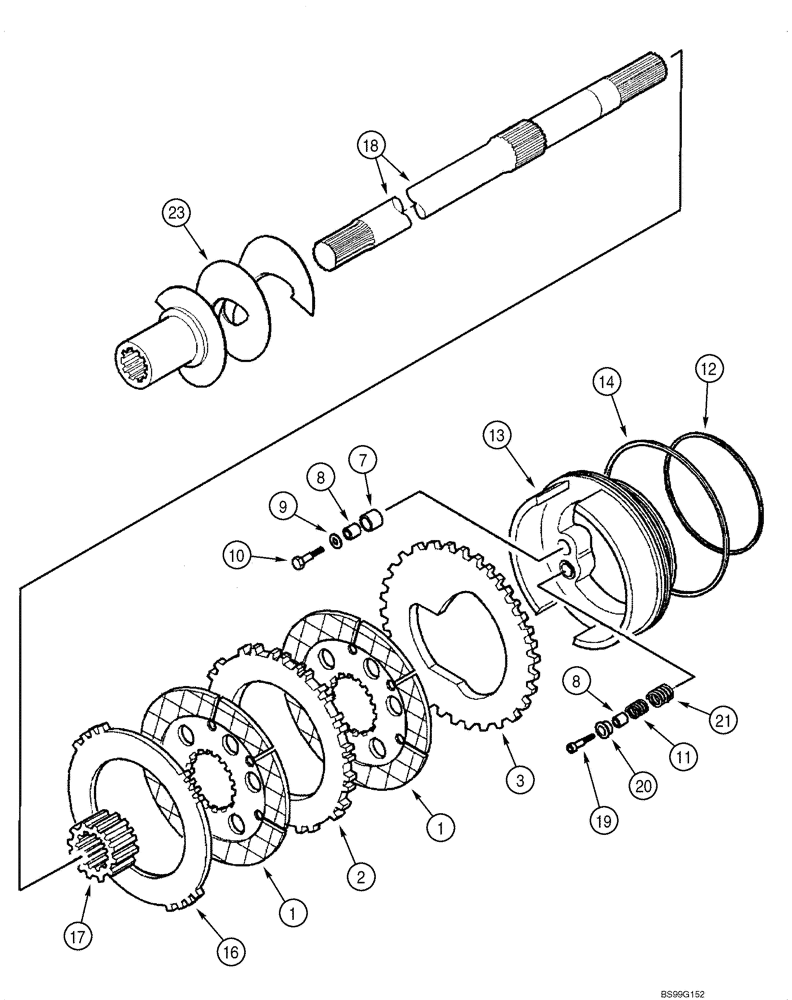

Запчасти Case 580M (07-01) - AXLE, REAR DRIVE - BRAKE, DIFFERENTIAL (07) - BRAKES

384952A1

AXLE, REAR

AXLE REAR Incl. Ref 1 - 25; Also Includes Parts On Figures 06-26 - 06-30, 07-01, 07-02; Two Spider Differential; If Used

1шт.

87422891

AXLE, REAR

AXLE REAR Incl. Ref 1 - 25; Also Includes Parts On Figures 06-26 - 06-30, 07-01, 07-02; Four Spider Differential; If Used

1шт.

87422891R

REMAN-REAR AXLE

Remanufactured, Rear, 4 Spider Differential

1шт.

87422891C

CORE-REAR AXLE

Return Part Number Rear, 4 Spider Differential

1шт.

384952A1R

REMAN-AXLE

Reman For New P/N 87422891

1шт.

384952A1C

CORE-AXLE

Return Part Number Four Spider Differential

1шт.

1

237021A1

LARGE PLATE

PLATE, LARGE Disc

4шт.

2

237022A1

LARGE PLATE

PLATE, LARGE Friction

2шт.

3

308029A1

PLATE

Piston

2шт.

358212A1

KIT

Brake Self Adjuster, Incl. Ref 7, 8

1шт.

7

190449A1

SPLIT PIN

Spacer, 18 x 20 mm, No Longer Sold Separately, Order 358212A1 Kit

6шт.

8

190496A1

BUSHING

No Longer Sold Separately, Order 358212A1 Kit

12шт.

9

190450A1

WASHER

6шт.

10

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

6шт.

11

237026A1

SPRING

6шт.

12

308036A1

O-RING,172mm ID x 3.5mm Thk

2шт.

13

359653A1

PISTON

2шт.

14

190493A1

O-RING,0.139" Thk x 8.234" ID, -267, 90 Duro

2шт.

16

308030A1

PLATE

Friction

2шт.

17

308042A1

SPLINED COUPLING

Sleeve

2шт.

18

295111A1

SHAFT

2шт.

19

864-6035

HEX SOC SCREW,M6 x 35mm, Cl 8.8

6шт.

20

190500A1

COVER

6шт.

21

237025A1

SPRING

6шт.

23

295113A1

AUGER,LH, 29 Tooth Splined Hub

LH Auger Shown, Oil, Left-Hand, Includes Welded-On Clamp and Bolt, Plus Welded-On Drive Coupling, Incl. Ref 24

1шт.

23

295112A1

AUGER,RH, 29 Tooth Splined Hub

LH Auger Shown, Oil, Right-Hand, Includes Welded-On Clamp and Bolt, Plus Welded-On Drive Coupling, Incl. Ref 24

1шт.

24

863-6020

HEX SOC SCREW,M6 x 20mm, Cl 12.9

Not Illustrated

2шт.
