Запчасти Case 580M (06-30) - AXLE, REAR DRIVE - PLANETARY (06) - POWER TRAIN

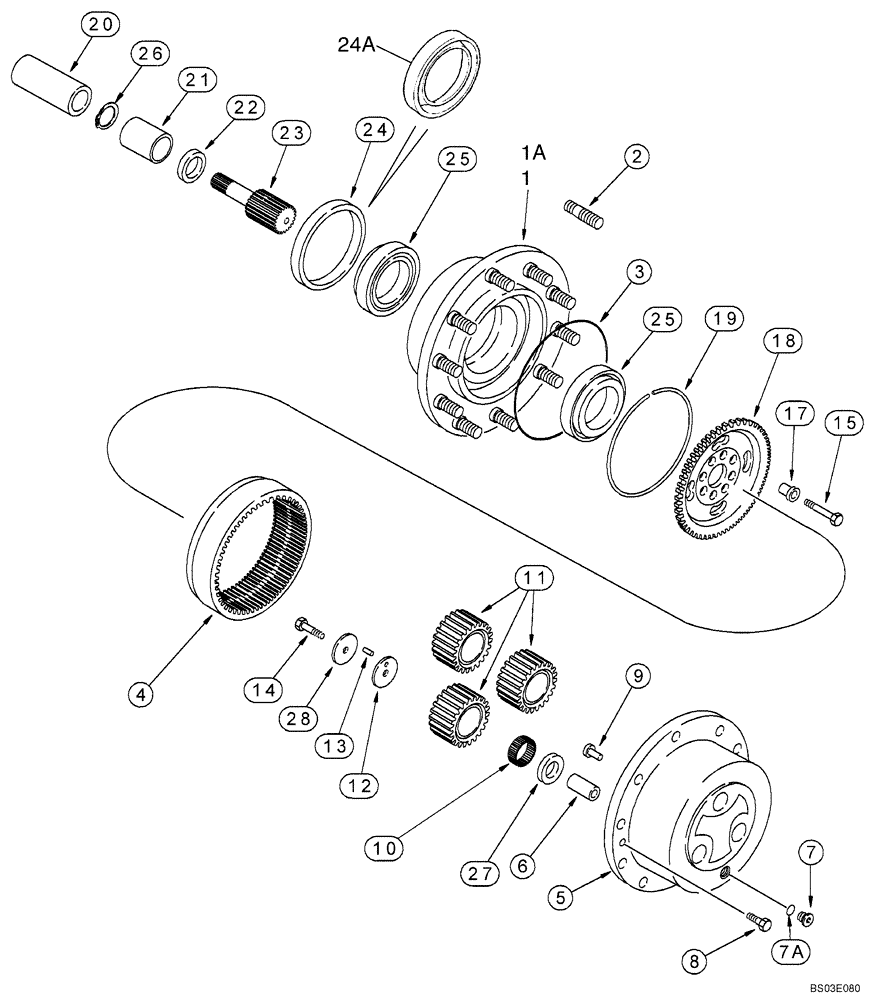

Схема запчастей Case 580M - (06-30) - AXLE, REAR DRIVE - PLANETARY (06) - POWER TRAIN
24
11
18
8
5
13
1
23
28
2
17
27
6
7
10
15
20
7a
12
1a
25
4
21
24a
18
26
9
25
14
3
22

Артикул

Название

Примечание

Количество

384952A1

AXLE, REAR

AXLE REAR Incl. Ref 1 - 28; Also Includes Parts On Figures 06-26 - 06-30, 07-01, 07-02; Two Spider Differential; If Used

1шт.

87422891

AXLE, REAR

AXLE REAR Incl. Ref 1 - 28; Also Includes Parts On Figures 06-26 - 06-30, 07-01, 07-02; Four Spider Differential; If Used

1шт.

87422891R

REMAN-REAR AXLE

Remanufactured, Rear, 4 Spider Differential

1шт.

87422891C

CORE-REAR AXLE

Differential Rear, 4 Spider Differential

1шт.

384952A1R

REMAN-AXLE

Reman For New P/N 87422891

1шт.

384952A1C

CORE-AXLE

Return Part Number Four Spider Differential

1шт.

1

175974A1

HUB

Includes (20) D142986 Studs, Ref 2; Used With 1349265C1 Seal, Ref 24; If Used

2шт.

1a

87416108

SERVICE KIT

HUB ASSY, Includes (10) D142986 Stud, Ref 2; Used With 247546A1 Seal, Ref 24A; If Used

2шт.

2

D142986

STUD,88mm L

Without Flanged Collar

10-20шт.

2

196090A1

STUD,M22 x 88mm

With Flanged Collar, For Recessed Bolt Holes; If Used

10шт.

3

P2930467

SEAL,0.139" Thk x 9.984" ID, -274, Cl 5, 75 Duro

2шт.

4

175976A1

PINION

Ring Gear

2шт.

5

175977A1

CARRIER

Planetary Carrier, Incl. Ref 6, Use With Liquid Gasket Silastic 732, Serial Range: Carrier-Hub

2шт.

6

NSS

NOT SOLD SEPARAT

Shaft

6шт.

7

100557A1

PLUG, DRAIN,M30 x 2

Incl. Ref 7A

2шт.

7a

238-6121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

1шт.

8

K395082

SCREW,M8 x 20mm

4шт.

9

K395093

HEADED PIN,12mm OD x 15mm L

Lock

2шт.

10

175978A1

NEEDLE BEARING

Package of 10 Needles, 168 Needles Required

17шт.

11

175979A1

SUN GEAR

Pinion Gear

6шт.

12

175980A1

THRUST WASHER

6шт.

13

247550A1

NEEDLE BEARING,5 mm OD x 10 mm

Package of 10 Needles, Used As Pins, 6 Needles Required

1шт.

14

175982A1

LOCK BOLT,Hex, M10 x 1.25 x 50mm, Cl 10.9

M10 x 50; 10.9

6шт.

15

K395131

BOLT,Hex, M14 x 1.5 x 65mm, Cl 10.9

16шт.

17

107071A1

BUSHING

20 mm OD

16шт.

18

310492A1

PINION CARRIER

GEAR CARRIER Hub, Ring Gear

2шт.

19

175984A1

RING, LOCKING

RING, LOCK

2шт.

20

NSS

NOT SOLD SEPARAT

Coupling, Welded To and Included With the Differential Brake Oil Auger

2шт.

21

196065A1

BUSHING

2шт.

22

196066A1

OIL SEAL

2шт.

23

358286A1

GEAR

Shaft

2шт.

24

1349265C1

OIL SEAL,149mm ID x 176mm OD x 16mm Thk

149 x 176 x 16, Used With 175974A1 Hub, Ref 1; If Used

2шт.

24a

247546A1

OIL SEAL,150mm ID x 180mm OD x 14.50mm W

Oil, With Internal Garter Spring Seal; Used With 87416108 Hub, Ref 1A; If Used

2шт.

25

K395101

TAPERED BEARING,109.5mm ID x 126mm x 21.4mm L

4шт.

26

800-2136

SNAP RING,M36, Ext

2шт.

27

175989A1

THRUST WASHER

6шт.

28

175990A1

THRUST WASHER

6шт.

Выбрано товаров: 37
