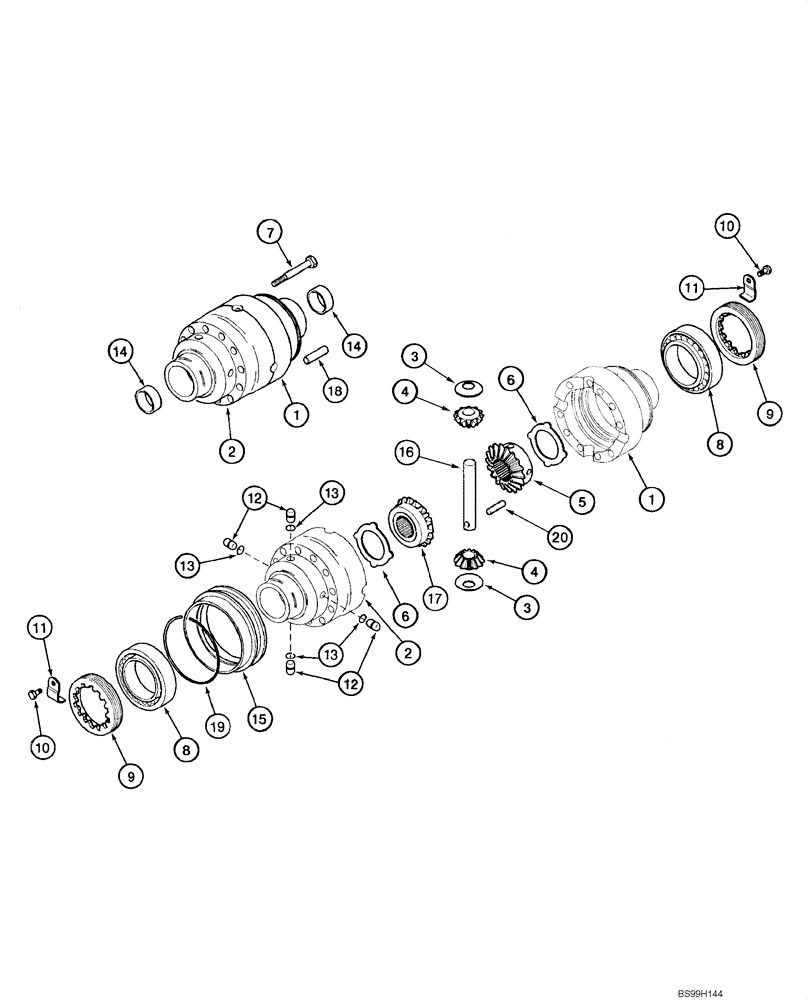

Запчасти Case 580M (06-27) - AXLE, REAR DRIVE - DIFFERENTIAL (384952A1 AXLE / 2 SPIDER DIFFERENTIAL) (06) - POWER TRAIN

384952A1

AXLE, REAR

AXLE REAR Incl. Ref 1 - 20; Also Includes Parts On Figures 06-26 - 06-30, 07-01, 07-02; Two Spider Differential; If Used; To Convert 2 Spider Differential to 4 Spider Differential, See 87422527 Service Kit on Figure 06-27A

1шт.

87422527

SET

Differential Service Kit For Converting 2 Spider Differentials to 4 Spider Differentials; See Figure 06-27A

1шт.

292268A1

HOUSING

Differential, Incl. Ref 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

Housing, Flange Half

1шт.

2

NSS

NOT SOLD SEPARAT

Housing, Plain Half

1шт.

367184A1

DIFFERENTIAL

Gear Set Kit, Service Replacement; Incl. Ref 3 - 6, 16, 17, 20

1шт.

3

E135777

WASHER

Thrust

2шт.

4

190471A1

PINION

Sun Gear, 12T, No Longer Sold Separately, Must Be Replaced As a Set, For Service, Order 367184A1 Differential Gear Set Kit

2шт.

5

D142971

PINION

Side Pinion Gear, No Longer Sold Separately, Must Be Replaced As a Set, For Service, Order 367184A1 Differential Gear Set Kit

1шт.

6

190469A1

THRUST WASHER

2шт.

7

S300976

BOLT,M12 x 1.5 x 90mm

M12 x 90; 12.9

10шт.

8

E135785

BEARING

2шт.

9

P3034505

NUT

Lock Ring

2шт.

10

112486A1

BOLT,Hex, M6 x 12

2шт.

11

175959A1

BRACKET

2шт.

12

292207A1

PIN

4шт.

13

292208A1

O-RING

4шт.

14

190452A1

BUSHING

2шт.

15

191067A1

SLEEVE

1шт.

367184A1

DIFFERENTIAL

Gear Set Kit, Service Replacement; Incl. Ref 3 - 6, 16, 17, 20

1шт.

16

P6427894

SHAFT

No Longer Sold Separately, Must Be Replaced As a Set, For Service, Order 367184A1 Differential Gear Set Kit

1шт.

17

292890A1

GEAR

Side Pinion Gear, No Longer Sold Separately, Must Be Replaced As a Set, For Service, Order 367184A1 Differential Gear Set Kit

1шт.

18

D143033

DOWEL

12 x 40 mm

2шт.

19

175961A1

RING, LOCKING

RING, LOCK

1шт.

20

838-5840

LOCK PIN,M8 x 40, Slotted

1шт.
