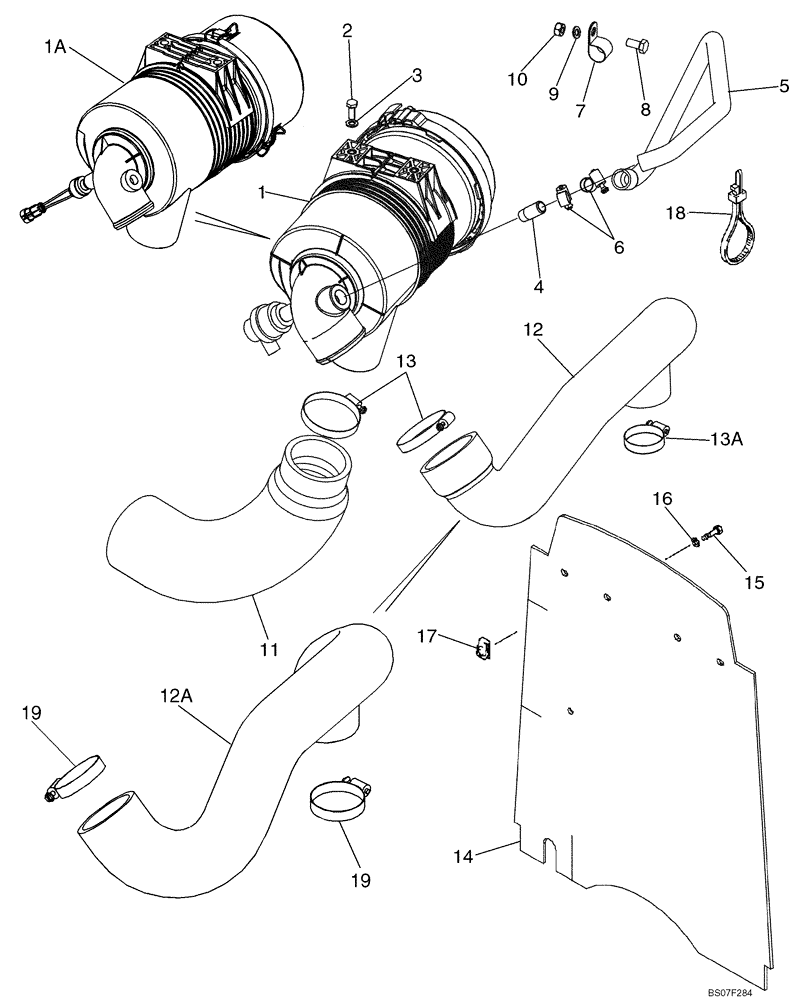

Запчасти Case 580M (02-04) - AIR CLEANER - AIR INTAKE PARTS (WITHOUT TURBOCHARGER) (02) - ENGINE

1

87442619

AIR CLEANER

Models Without Turbocharged Engines, See Figure 02-05; No Longer Available; For Service Order 87615798 Air Cleaner, 87615799 Hose, 86050197 Clamps (qty 2)

1шт.

1a

87615798

AIR CLEANER

Air Cleaner, Models Without Turbocharged Engines; See Figure 02-05C

1шт.

2

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

4

L17985

FITTING,3/8" - 18 NPT

1шт.

5

87454381

HOSE

Replaces 87442308

1шт.

6

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

7

515-25254

CLAMP,1", Insul, 1/2" Bolt

P-type

1шт.

8

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

9

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

1шт.

10

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

11

87454379

LARGE HOSE

HOSE,LARGE Inlet; Replaces 87419135

1шт.

12

87454382

LARGE HOSE

HOSE,LARGE To Intake Manifold; Replaces 87442307; Used With 87442619 Air Cleaner

1шт.

12a

87615799

LARGE HOSE

HOSE,LARGE To Intake Manifold; Used With 87615798 Air Cleaner

1шт.

13

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

If Used

1-2шт.

13a

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

1шт.

14

87652272

CURTAIN

Barrier, Heat and Noise Reduction; Replaces 87434099

1шт.

15

806-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9

4шт.

16

495-81001

WASHER,5/16"

4шт.

17

833-40408

NUT,M8, U

4шт.

18

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

2шт.

19

86050197

HOSE CLAMP,58.6mm - 82.5mm, Worm Gear

If Used

2шт.
