Запчасти Case 580M (06-21A) - TRANSMISSION ASSY (87456843 OR 87456844) - VALVE, CONTROL (06) - POWER TRAIN

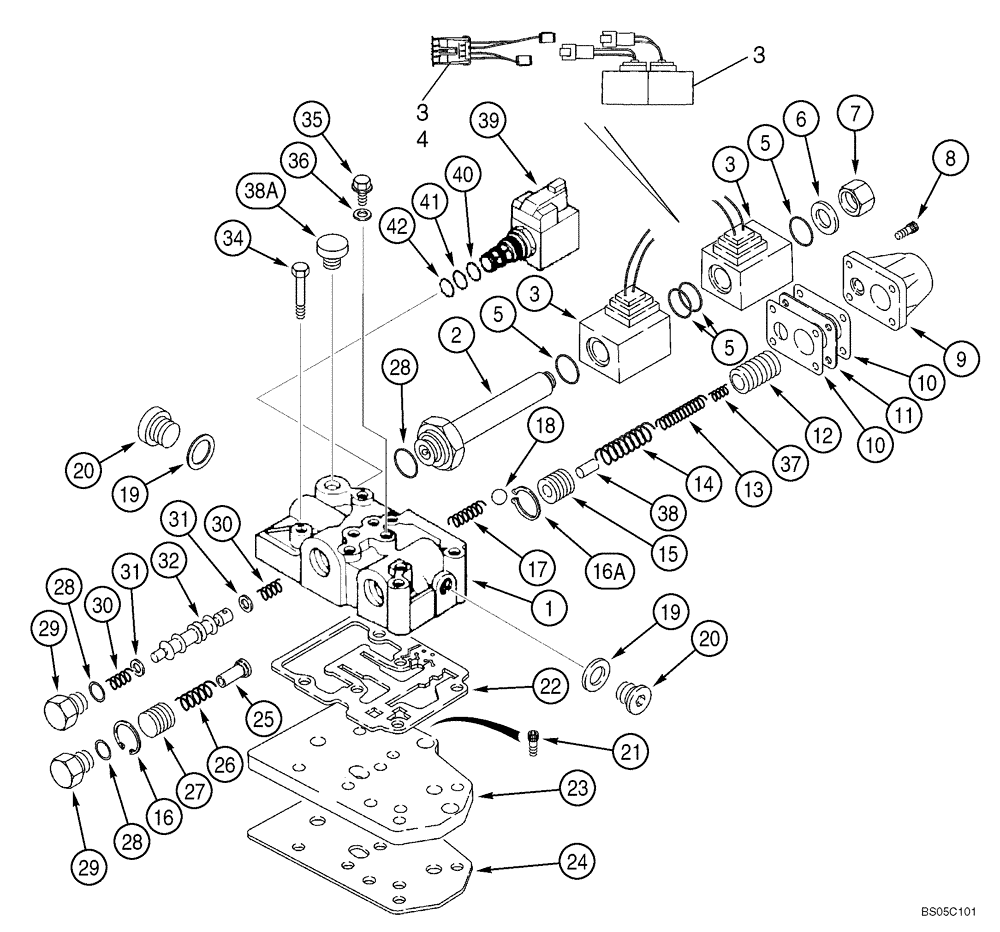

Схема запчастей Case 580M - (06-21A) - TRANSMISSION ASSY (87456843 OR 87456844) - VALVE, CONTROL (06) - POWER TRAIN
20
1
29
24
30
32
30
8
3
27
25
19
13
12
38
16
23
28
35
22
37
15
21
4
26
28
11
31
20
41
5
14
38a
5
5
17
2
3
36
34
7
3
16a
28
39
9
42
31
6
19
40
10
29
10
3
18

Артикул

Название

Примечание

Количество

87456843

TRANSMISSION

Two Wheel Drive, Incl. Ref 1 - 45; Also Includes Parts On Figures 06-12 - 06-21A

1шт.

87396484R

REMAN-TRANSMISSION

2WD Carraro Synchronized Transmission

1шт.

87396484C

CORE-TRANSMISSION

Return Part Number

1шт.

87456844

TRANSMISSION

Four Wheel Drive, Incl. Ref 1 - 45; Also Includes Parts On Figures 06-12 - 06-22

1шт.

87456844R

REMAN-TRANSMISSION

Remanufactured Transmission

1шт.

87456844C

CORE-TRANSMISSION

Return Part Number

1шт.

87456899

VALVE

Transmission Control, Incl. Ref 1 - 45

1шт.

87396485R

REMAN-TRANSMISSION

4WD Carraro Synchronized Transmission

1шт.

87396485C

CORE-TRANSMISSION

Return Part Number

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

190442A1

PLUNGER

1шт.

3

87456900

SERVICE KIT

KIT, Solenoid; (Used for Fwd/Rev) Includes (2) Solenoids, (1) Jumper Wire Used For Transmissions Prior to Ones With The Solenoids With Plastic Connections; See Figure 06-21, Ref 3 For Solenoids With Bullet Connectors

1шт.

4

87456968

WIRE HARNESS

Jumper; If Used; Female Packard Connector; Required On Transmissions Prior To Ones With Deutsch Connector Type Solenoids

1шт.

5

181136A1

O-RING

4шт.

6

181273A1

COPPER WASHER

1шт.

7

181272A1

PLUG

1шт.

8

864-6020

HEX SOC SCREW,M6 x 20mm, Cl 8.8

4шт.

9

181251A1

COVER

1шт.

10

181256A1

GASKET

Cover Gasket

2шт.

11

190439A2

SPACER

1шт.

12

190438A2

PISTON

1шт.

13

190436A1

SPRING

1шт.

14

190441A1

SPRING

1шт.

15

181234A2

PISTON

1шт.

16

299324A1

CIRCLIP

1шт.

16a

368436A1

CIRCLIP

1шт.

17

181261A1

SPRING

1шт.

18

181146A1

BALL

1шт.

19

181107A1

COPPER WASHER

2шт.

20

181103A1

PLUG

2шт.

21

864-8020

HEX SOC SCREW,M8 x 20mm, Cl 8.8

Not Included In Assembly, Purchase Separately

3шт.

22

181166A1

GASKET

Not Included In Assembly, Purchase Separately

1шт.

23

181207A1

PLATE

Not Included in Assembly, Purchase Separately

1шт.

24

181208A1

GASKET

Not Included In Assembly, Purchase Separately

1шт.

25

181254A1

SHAFT

1шт.

26

181260A1

SPRING

1шт.

27

181255A2

PISTON

Flow Divider

1шт.

28

181137A1

O-RING

3шт.

29

181258A1

PLUG

PLUG

2шт.

30

334724A1

SPRING

2шт.

31

181253A1

SPACER

2шт.

32

334725A1

PLUNGER

Spool, Forward/Reverse

1шт.

34

814-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

Not Included In Assembly, Purchase Separately

6шт.

35

181100A1

PLUG,1/8 CAS x 8

4шт.

36

934667R1

SEALING RING,M10 x 14 x 1

4шт.

37

190435A1

SPRING

1шт.

38

190440A1

PIN

1шт.

38a

NSS

NOT SOLD SEPARAT

Plug; Plastic; For Shipping Purposes Only

1шт.

39

349295A1

SOLENOID VALVE

Differential Lock Solenoid Valve; Incl. Ref 40 - 45

1шт.

40

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

41

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

42

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

43

NSS

NOT SOLD SEPARAT

Solenoid Valve, Cartridge, Component Parts Not Serviced Separately, Not Illustrated

1шт.

44

298614A1

SOLENOID

Not Illustrated

1шт.

45

NSS

NOT SOLD SEPARAT

Nut, Not Illustrated

1шт.

368437A2

KIT

Snap Ring, Without Tools, Includes 10, 15, 16A, 22, 25, Plus Instructions

1шт.

368438A2

KIT

Snap Ring, With Tools, Includes 10, 15, 16A, 22, 25, Plus 368439A1 Guide Tool and 368440A1 Pushing Tool for Snap Ring Service

1шт.
