Артикул
Название
Примечание
Количество

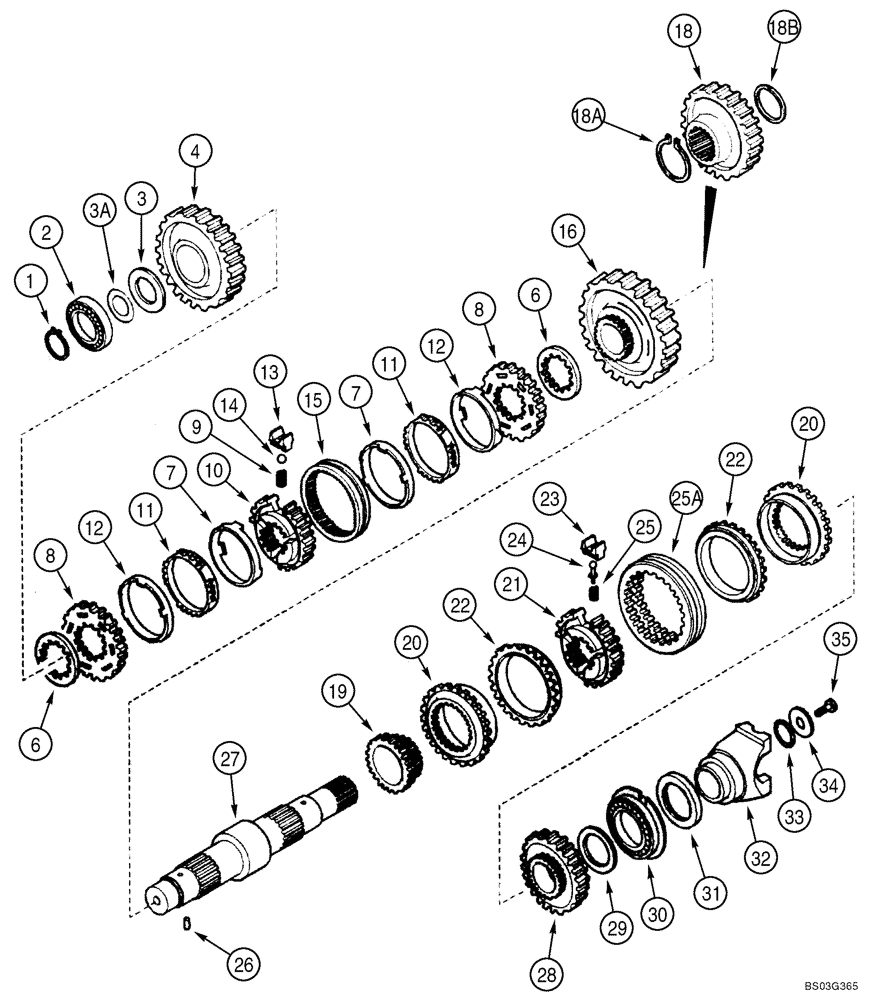

87396484
TRANSMISSION
Two Wheel Drive, Incl. Ref 1 - 35; Also Includes Parts On Figures 06-12 - 06-21B; Replaces 86984097, 87456843
1шт.
87396484R
REMAN-TRANSMISSION
Remanufactured, 2WD Carraro Synchronized Transmission
1шт.
87396484C
CORE-TRANSMISSION
Return Part Number
1шт.
87396485
TRANSMISSION
Four Wheel Drive, Incl. Ref 1 - 35; Also Includes Parts On Figures 06-12 - 06-22; Replaces 86984098, 87456844
1шт.
87396485R
REMAN-TRANSMISSION
Remanufactured, 4WD Carraro Synchronized Transmission
1шт.
87396485C
CORE-TRANSMISSION
Return Part Number
1шт.
1
181118A1
RING, LOCKING,36.5mm ID x 1.75mm Thk
1шт.
2
181132A1
ROLLER BEARING,40mm ID x 80mm OD x 18mm W
1шт.
3
358649A1
THRUST WASHER
Thrust
1шт.
3a
358650A1
SHIM,0.05mm Thk
1шт.
3a
358651A1
SHIM,0.1mm Thk
1шт.
3a
358652A1
SHIM,0.3mm Thk
1шт.
3a
196454A1
SHIM,0.5mm Thk
1шт.
4
358648A1
PINION,43T
Gear, Driven, Second, 43T
1шт.
6
244109A1
SPACER
2шт.
190427A1
SYNCHRONIZER,90T
Synchronizing Service Kit, Incl. Ref 7 - 15
1шт.
7
NSS
NOT SOLD SEPARAT
Ring
2шт.
8
NSS
NOT SOLD SEPARAT
Ring
2шт.
9
384773A1
COIL SPRING
3шт.
10
NSS
NOT SOLD SEPARAT
Hub
1шт.
11
NSS
NOT SOLD SEPARAT
Ring
2шт.
12
NSS
NOT SOLD SEPARAT
Ring
2шт.
13
326865A1
SPACER
3шт.
14
384769A1
BALL
3шт.
15
NSS
NOT SOLD SEPARAT
Sleeve
1шт.
16
358647A1
PINION,49T
Gear, Driven, First, 49T
1шт.
18
358656A1
GEAR,44T
Drive, Four Wheel Drive Models
1шт.
18a
358654A1
RING, SNAP,65.5mm ID, Ext
RING SNAP Four Wheel Drive Models
1шт.
18b
358655A1
RING, SNAP,67.4mm ID, Ext
RING SNAP Four Wheel Drive Models
1шт.
19
358282A1
GEAR,23T
Driven, Fourth
1шт.
87429974
SYNCHRONIZER
Synchronizing Service Kit, Incl. Ref 20 - 25A
1шт.
20
NSS
NOT SOLD SEPARAT
Ring
2шт.
21
NSS
NOT SOLD SEPARAT
Hub
1шт.
22
NSS
NOT SOLD SEPARAT
Ring
2шт.
23
NSS
NOT SOLD SEPARAT
Plate
3шт.
24
NSS
NOT SOLD SEPARAT
Pin
3шт.
25
NSS
NOT SOLD SEPARAT
Spring
3шт.
25a
NSS
NOT SOLD SEPARAT
Sleeve
1шт.
26
181108A1
SPLIT PIN,3mm OD x 8mm L
1шт.
27
366366A1
SHAFT
Secondary, Two Wheel Drive Models
1шт.
27
358653A1
SHAFT
Secondary, Four Wheel Drive Models
1шт.
28
358283A1
DRIVEN GEAR,33T
Third
1шт.
29
358639A1
WASHER
Thrust, 68 x 45 x 4 mm
1шт.
30
181130A1
BEARING, BALL,45 mm ID x 106.5 mm OD x 25 mm
1шт.
32
233284A1
YOKE
Rear Drive Shaft
1шт.
34
181165A1
WASHER,12.5mm ID x 52mm OD x 5mm Thk
1шт.
35
P3533055
SCREW,M12 x 1.25 x 25mm
1шт.
Выбрано товаров: 49
