(02-03) - RADIATOR ASSY (WITH OR WITHOUT AIR CONDITIONING)

Запчасти Case 580M (02-03) - RADIATOR ASSY (WITH OR WITHOUT AIR CONDITIONING) (02) - ENGINE

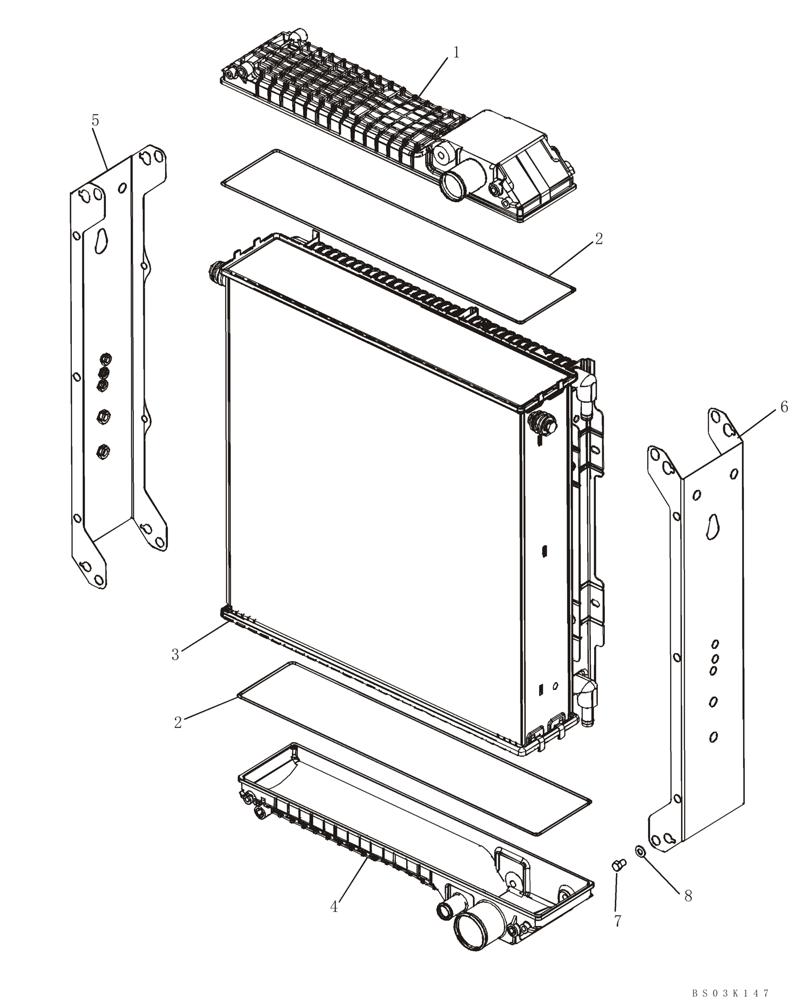

Схема запчастей Case 580M - (02-03) - RADIATOR ASSY (WITH OR WITHOUT AIR CONDITIONING) (02) - ENGINE
bs03k147
4
5
8
2
7
2
1
6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87410096

RADIATOR

3 Row Radiator, Models With or Without Air Conditioning; Incl. Ref 1 - 8

1шт.

1

87429694

RESERVOIR, COOLANT E

Upper Reservoir

1шт.

2

254409A1

GASKET,3.15mm Thk

2шт.

3

87429690

CORE, RADIATOR

Core

1шт.

4

87429695

RESERVOIR, COOLANT E

Lower Reservoir

1шт.

5

87429692

SIDE MEMBER

Left-Hand

1шт.

6

87429693

SIDE MEMBER

Right-Hand

1шт.

7

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

8шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.
