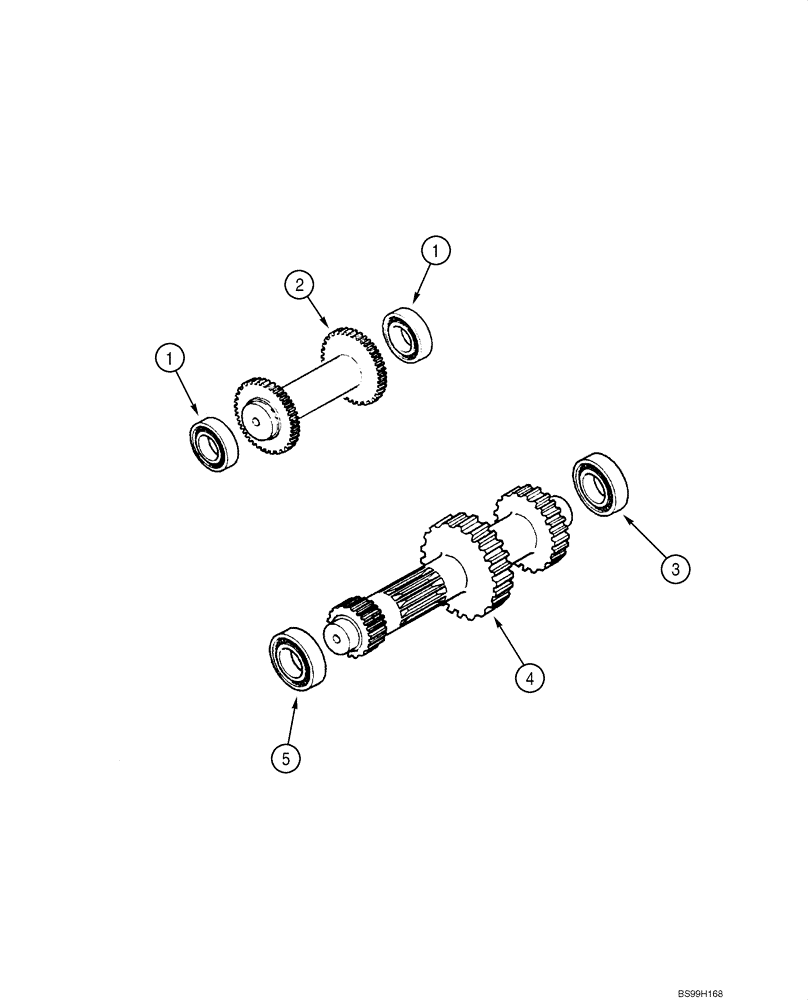

Запчасти Case 580M (06-17) - TRANSMISSION ASSY - SHAFT, IDLER AND PRIMARY (06) - POWER TRAIN

87396484

TRANSMISSION

Two Wheel Drive, Incl. Ref 1 - 6; Also Includes Parts On Figures 06-12 - 06-21B; Replaces 86984097, 87456843

1шт.

87396484R

REMAN-TRANSMISSION

Remanufactured, 2WD Carraro Synchronized Transmission

1шт.

87396484C

CORE-TRANSMISSION

Return Part Number

1шт.

87396485

TRANSMISSION

Four Wheel Drive, Incl. Ref 1 - 6; Also Includes Parts On Figures 06-12 - 06-22; Replaces 86984098, 87456844

1шт.

87396485R

REMAN-TRANSMISSION

Remanufactured, 4WD Carraro Synchronized Transmission

1шт.

87396485C

CORE-TRANSMISSION

Return Part Number

1шт.

1

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

2шт.

2

358636A1

SHAFT,27T

Idler Shaft

1шт.

3

181126A1

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

1шт.

4

358646A1

SHAFT

Primary Shaft

1шт.

5

181132A1

ROLLER BEARING,40mm ID x 80mm OD x 18mm W

1шт.

6

A48041

CIRCLIP,41.5mm ID x 2.5mm Thk

Not Illustrated

1шт.
