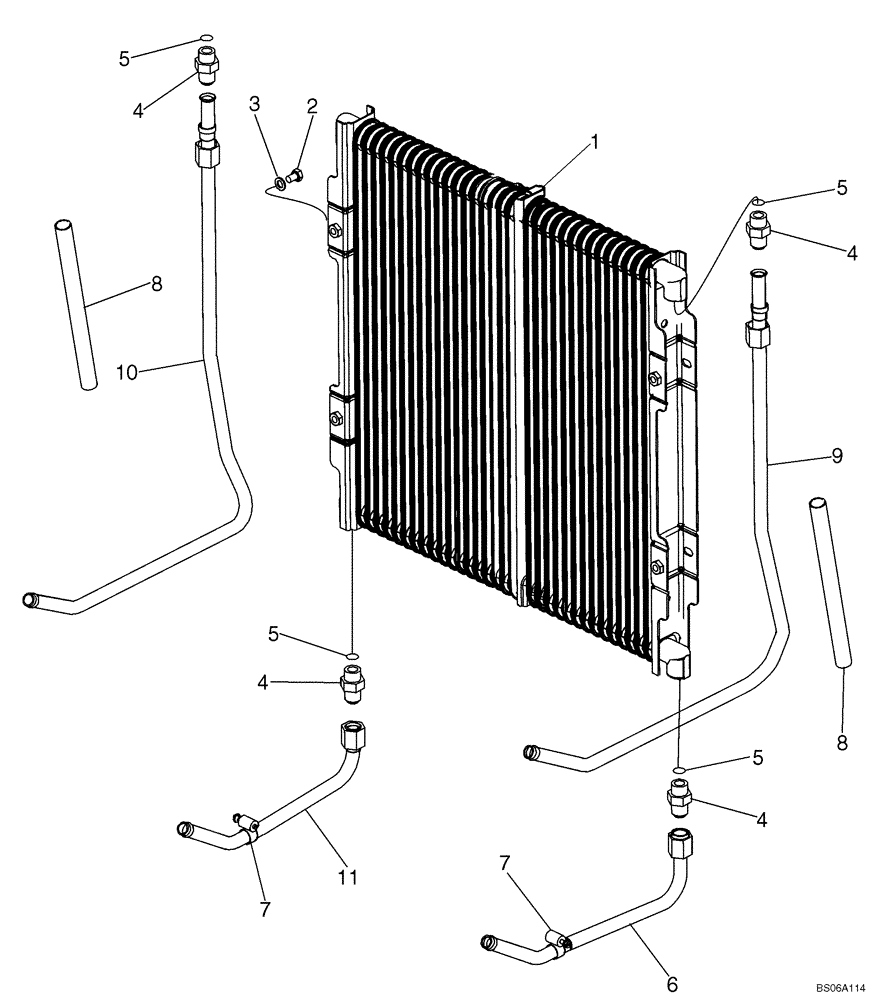

Запчасти Case 580M (06-10A) - COOLING SYSTEM - TRANSMISSION (WITH FLARED FITTINGS AT COOLER) (06) - POWER TRAIN

1

87441876

OIL COOLER

Hydraulic Oil Cooler

1шт.

2

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

4шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

4

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Incl. Ref 5

4шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

6

87435078

TUBE,15.875 mm OD x 315 mm L

Lower Right-Hand

1шт.

7

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

8

87311219

HOSE PROTECTION,16.80 mm ID x 250.00 mm

Sleeve

2шт.

9

87435076

TUBE,15.875 mm OD x 584, 362 mm L

Right-Hand Upper Cooler

1шт.

10

87435080

TUBE,15.875 mm OD x 584, 362 mm L

Left-Hand Upper Cooler

1шт.

11

87435082

TUBE,15.875 mm OD x 315, 64 mm L

Left-Hand Lower

1шт.

12

D132982

PADDLE,26.87mm ID x 400mm L

Hose Guard; Not Illustrated

1шт.
