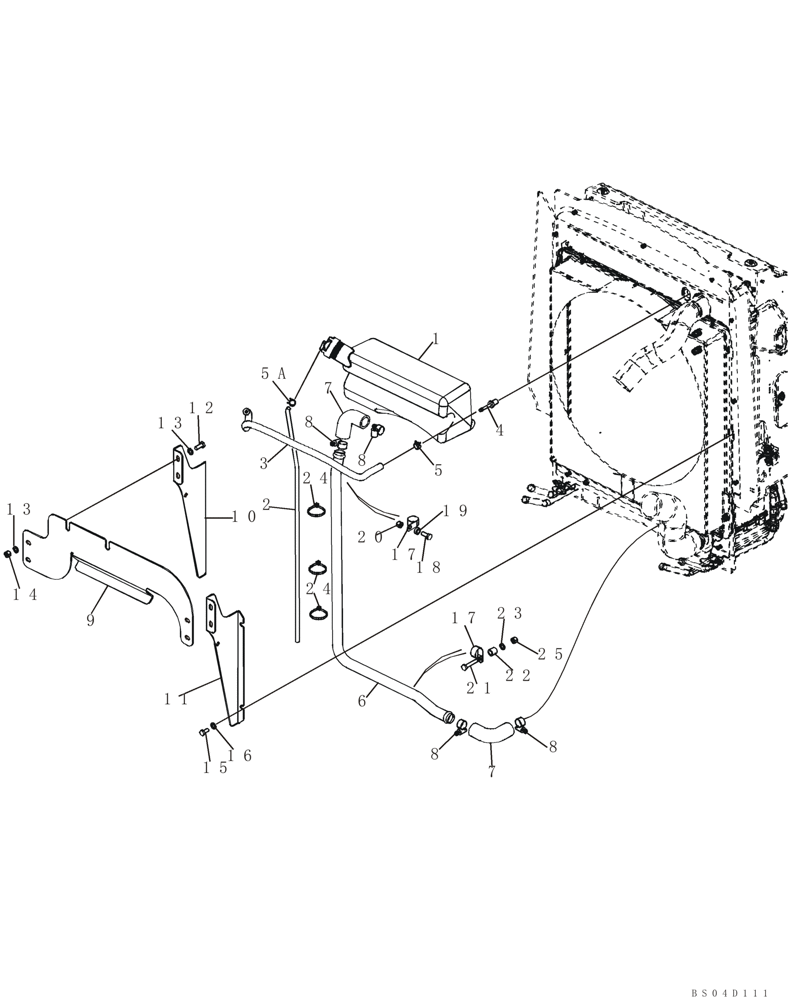

Запчасти Case 580M (02-02) - DEAERATION SYSTEM - MOUNTING (02) - ENGINE

1

87354587

RESERVOIR, COOLANT E

Deaeration Reservoir, 3.5 Liters; Includes 85803019 Cap; Replaces 87412139 Reservoir, Which Also Included 85803019 Cap

1шт.

85803019

RADIATOR CAP

Cap, 13 psi

1шт.

2

87435409

HOSE

Overflow Hose

1шт.

3

87417300

HOSE

Recovery, 5/16 ID x 19/32 OD x 22-11/64; Reservoir to Radiator; If Used

1шт.

3

87306306

HOSE,8.30 mm ID x 565 mm

Recovery, Reservoir to Radiator; If Used

1шт.

4

87301325

FITTING,5/16" Hose X 1/4" NPTF Beaded

1шт.

5

1348264C1

HOSE CLAMP

1шт.

5a

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

1шт.

6

87433503

TUBE,1" OD

1шт.

7

87417299

HOSE

R31.8 Bend Radius; Part Number Not Stamped On Hose; If Used

2шт.

7

87454376

HOSE,25mm ID, 29.95mm OD, 90 Degree

R33 Bend Radius; Part Number Stamped On Hose; If Used

2шт.

8

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

4шт.

9

87448489

BRACKET

Replaces 87417223

1шт.

10

87417225

BRACKET

Left-Hand Bracket

1шт.

11

87417224

BRACKET

Right-Hand Bracket

1шт.

12

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

14

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

15

806-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9

4шт.

16

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

17

515-22254

CLAMP,1", Insul, 5/16" Bolt

2шт.

18

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

19

87418359

SPACER

8 x 6 mm

1шт.

20

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

21

614-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8, Full Thd

1шт.

22

87418360

SPACER,9.8mm ID x 16mm OD x 16mm W

8 x 16 mm

1шт.

23

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

24

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP Tie

3шт.

25

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.
