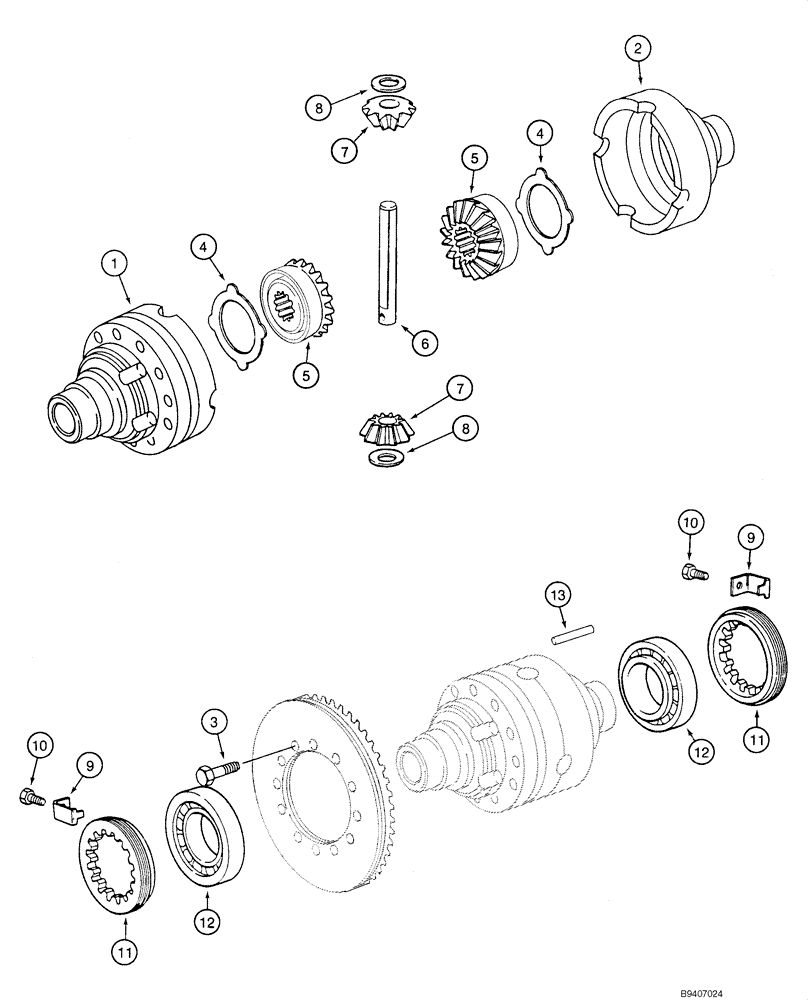

Запчасти Case 580M (06-07) - AXLE, FRONT DRIVE - DIFFERENTIAL (06) - POWER TRAIN

87417387

4WD AXLE ASSY

Front; Incl. Ref 1 - 13; Also Includes Parts On Figures 06-02 - 06-08

1шт.

87417387R

REMAN-AXLE

Remanufactured, 87417387 Axle,

1шт.

87417387C

CORE-AXLE

Return Number, 87417387 Axle, Core, Use This Part Number To Return Core For Credit When Using A Remanufactured Assy.

1шт.

294933A1

HOUSING

Differential, Incl. Ref 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

Housing, Flange Half

1шт.

2

NSS

NOT SOLD SEPARAT

Housing, Plain Half

1шт.

B17575

FLUID

89 ml, Black RTV Silicone, Bolt to Differential Housing

1шт.

3

827-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 10.9

12шт.

4

1967003C1

THRUST WASHER

2шт.

5

231397A1

SERVICE KIT

Differential Gear Set, Service Replacement, Incl. Ref 5 - 8, 13

1шт.

5

N14407

GEAR

Side, No Longer Available, Order 231397A1 Differential Gear Set Kit

2шт.

6

K395087

SHAFT

Pinion Gear, No Longer Available, Order 231397A1 Differential Gear Set Kit

1шт.

7

N14408

SUN GEAR

Pinion Gear, No Longer Available, Order 231397A1 Differential Gear Set Kit

2шт.

8

K395075

THRUST WASHER

No Longer Available, Order 231397A1 Differential Gear Set Kit

2шт.

9

1966153C1

LOCKING PLATE

Bracket

2шт.

10

112486A1

BOLT,Hex, M6 x 12

2шт.

11

1966559C1

NUT

2шт.

12

K395027

TAPERED BEARING

2шт.

13

K395086

PIN

Dowel, No Longer Available, Order 231397A1 Differential Gear Set Kit

1шт.
