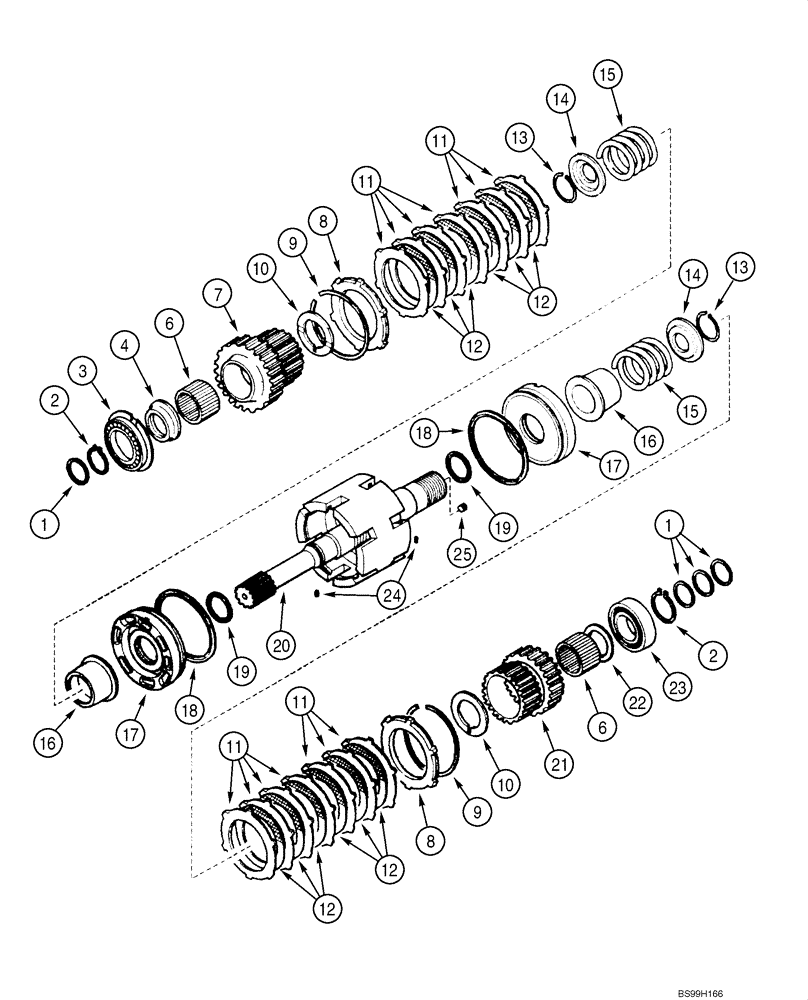

Запчасти Case 580M (06-19) - TRANSMISSION ASSY - SHAFT, INPUT (06) - POWER TRAIN

329076A3

TRANSMISSION

Two Wheel Drive, Incl. Ref 1 - 25; Also Includes Parts On Figures 06-13 - 06-22; Replaces 329076A1, 329076A2

1шт.

329076A3R

REMAN-TRANSMISSION

Remanufactured Transmission

1шт.

329076A3C

CORE-TRANSMISSION

Return Part Number

1шт.

329079A3

TRANSMISSION

Four Wheel Drive, Incl. Ref 1 - 25; Also Includes Parts On Figures 06-13 - 06-23; Replaces 329079A1, 329079A2

1шт.

329079A3R

REMAN-TRANSMISSION

Remanufactured Transmission

1шт.

329079A3C

CORE-TRANSMISSION

Return Part Number

1шт.

1

358645A1

SEALING RING

4шт.

2

A48041

CIRCLIP,41.5mm ID x 2.5mm Thk

2шт.

3

181128A1

BEARING, BALL,45mm ID x 85mm OD x 19mm W

1шт.

4

358635A1

SPACER

68 x 45 x 105 mm

1шт.

6

358633A1

BEARING, NEEDLE,50mm ID x 58mm OD x 25mm W

2шт.

7

358632A1

PINION,35T

Gear, 35T

1шт.

8

310519A1

PLATE

2шт.

9

181116A1

RING, LOCKING,146.6mm ID x 2.5mm Thk

RING, LOCK

2шт.

10

358640A1

WASHER

2шт.

11

181159A1

DISC

Plate

14шт.

12

181158A1

CLUTCH DISC

CLUTCH DISK Plate

12шт.

13

181111A1

RING, LOCKING,47.8mm ID x 1.5mm Thk

RING, LOCK

2шт.

14

181161A1

PLATE, THRUST

Pressure

2шт.

15

358637A1

SPRING

2шт.

16

358641A1

TRANSMISSION SLEEVE

2шт.

17

358644A1

PISTON

2шт.

18

358643A1

SEALING RING,126.83mm ID x 137mm OD x 3.25mm Thk

SEALRING

2шт.

19

358642A1

SEALING RING

SEALRING

2шт.

20

358631A1

SHAFT

Input Shaft

1шт.

21

358638A1

PINION,39T

Gear, 29T

1шт.

22

358639A1

WASHER

Thrust, 68 x 45 x 4 mm

1шт.

23

181126A1

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

1шт.

24

181108A1

SPLIT PIN,3mm OD x 8mm L

2шт.

25

D142898

PLUG,M10 x 1

10 x 1 mm

2шт.
