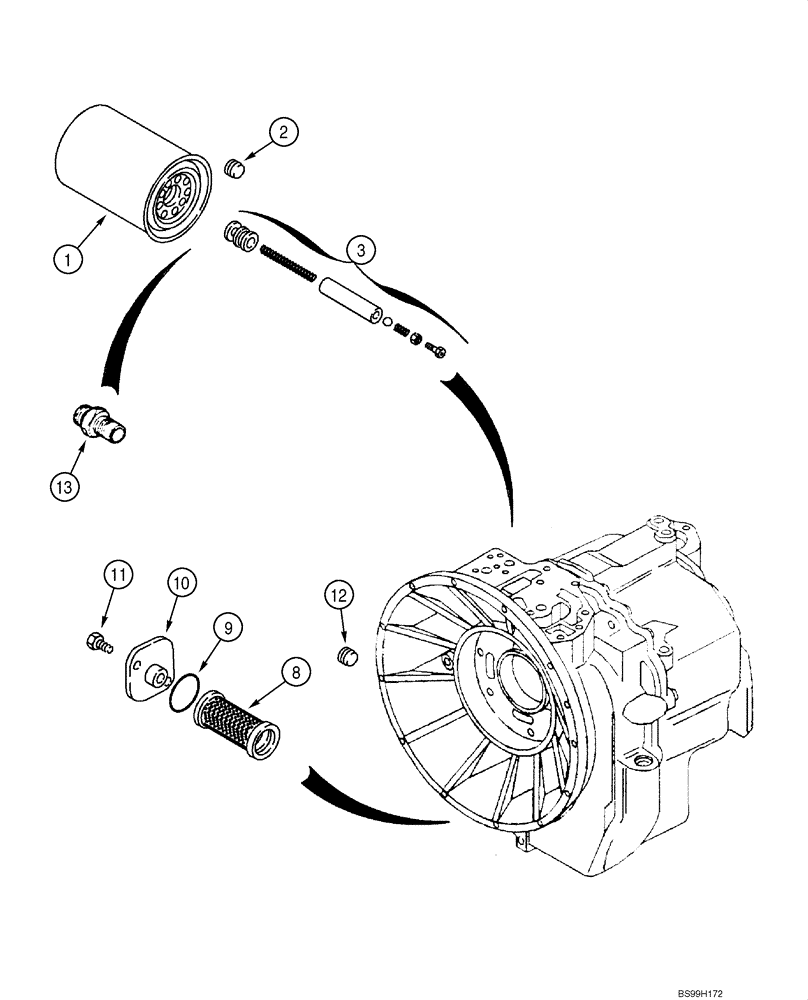

Запчасти Case 580M (06-13) - TRANSMISSION ASSY - FILTER, OIL (06) - POWER TRAIN

329076A3

TRANSMISSION

Two Wheel Drive, Incl. Ref 1, 8 - 11, 13; Also Includes Parts On Figures 06-13 - 06-22; Replaces 329076A1, 329076A2

1шт.

329076A3R

REMAN-TRANSMISSION

Remanufactured Transmission

1шт.

329076A3C

CORE-TRANSMISSION

Return Part Number

1шт.

329079A3

TRANSMISSION

Four Wheel Drive, Incl. Ref 1 - 13; Also Includes Parts On Figures 06-13 - 06-23; Replaces 329079A1, 329079A2

1шт.

329079A3R

REMAN-TRANSMISSION

Remanufactured Transmission

1шт.

329079A3C

CORE-TRANSMISSION

Return Part Number

1шт.

1

254686A2

FILTER,Spin-on, 13/16” – 16, 97mm OD x 151.6mm L

Oil; Replaces 254686A1

1шт.

2

181101A1

PLUG,M14 x 1.5

14 - 1.5 mm; Four Wheel Drive Models Only

1шт.

3

181274A1

REPAIR KIT

Valve; Four Wheel Drive Models Only

1шт.

8

278534A1

FILTER SCREEN

Oil

1шт.

9

100748A1

O-RING,1.421" ID x 1.699" OD x 0.139"

1шт.

10

181219A1

COVER

1шт.

11

614-8018

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

M8 x 18

2шт.

12

181102A1

PLUG

Four Wheel Drive Models Only

1шт.

13

181202A1

FITTING

1шт.
