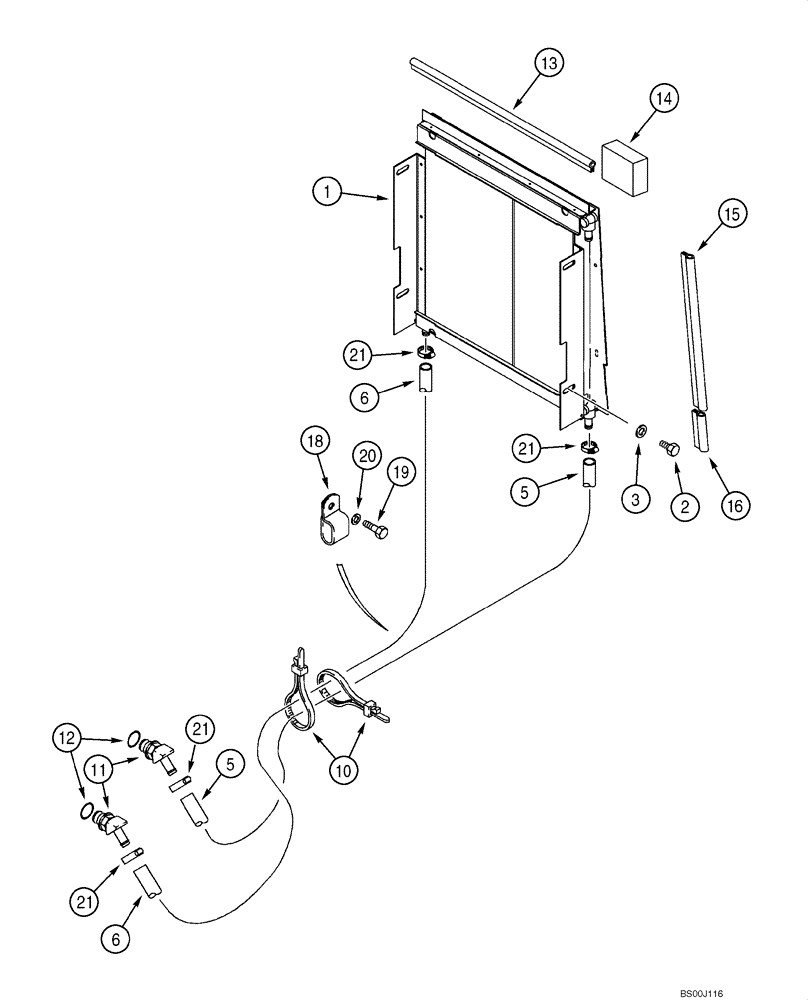

Запчасти Case 580M (06-11) - COOLING SYSTEM - TRANSMISSION (WITH AIR CONDITIONING) (06) - POWER TRAIN

1

383355A2

OIL COOLER

For Mounting Hardware, See Figure 09-38; For Additional Hydraulic Routing, See Figure 08-03

1шт.

2

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

5

319889A2

HOSE

1360 mm (53-9/16 in), Transmission to Cooler Inlet

1шт.

6

301340A2

HOSE

2000 mm (78-3/4 in), Cooler, Serial Range: Outlet-Transmission

1шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

2шт.

11

217-314

FITTING,45 Degree Elbow, 5/8" Hose Barb x 7/8" - 14 Male ORB

45 deg, 5/8 stem x 7/8 Or, Incl. Ref 12

2шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

13

233972A1

SEAL

564 mm (22-7/32 in), Horizontal

1шт.

14

234719A1

SEAL

Seal, 70 x 100 x 32 mm, Upper Corner, Use With 345-44 Adhesive

2шт.

345-44

ADHESIVE

Spray Can, 3M No. 74, 23 ounce

1шт.

15

233970A1

SEAL

472 mm (18-5/8 in), Vertical, Cooler to Radiator Wrapper

2шт.

16

233971A1

SEAL

103 mm (4-1/16 in), Lower

2шт.

18

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

1шт.

19

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

1шт.

20

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

21

328186A1

HOSE CLAMP,400mm L

4шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 20 x 2 mm

2шт.
