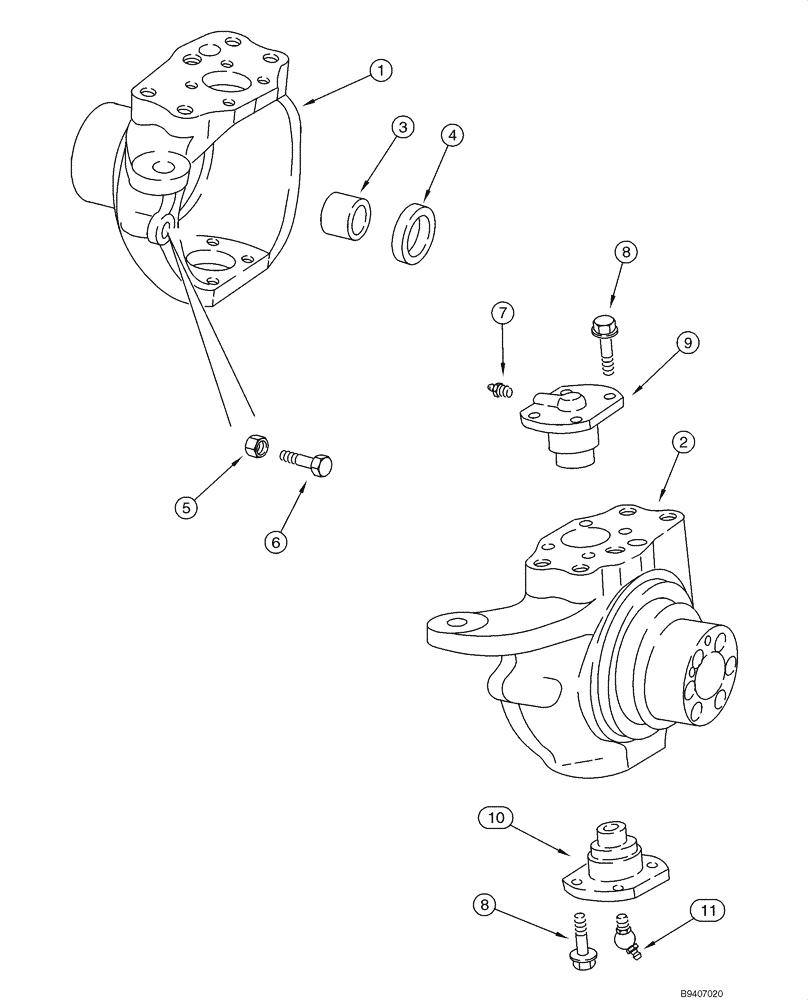

Запчасти Case 580M (06-03) - AXLE, FRONT DRIVE - HOUSING, SWIVEL (06) - POWER TRAIN

381380A1

4WD AXLE ASSY

Front, Prior to P.I.N. JJG0308359, Incl. Ref 1 - 11; Also Includes Parts On Figures 06-02 - 06-08; No Longer Available, Order 427084A1 Axle

1шт.

Repair and exchange component available - call Avatar Components, 1-800-453-3544, ext. 122.

1шт.

427084A1

4WD AXLE ASSY

Front, P.I.N. JJG0308359 & After; Incl. Ref 1 - 11; Also Includes Parts On Figures 06-02 - 06-08

1шт.

1

144455A1

HOUSING

Left-Hand, 65 mm Diameter Axle Shaft Seal Counterbore; 381380A1 Axle

1шт.

1

397653A1

AXLE HOUSING

Left-Hand, 60 mm Diameter Axle Shaft Seal Counterbore; 427084A1 Axle

1шт.

B17575

FLUID

89 ml, Black RTV Silicone, Wear Ring to Swivel Housing

1шт.

2

144456A1

HOUSING

Right-Hand, 65 mm Diameter Axle Shaft Seal Counterbore; 381380A1 Axle

1шт.

2

397654A1

AXLE HOUSING

Right-Hand, 60 mm Diameter Axle Shaft Seal Counterbore; 427084A1 Axle

1шт.

3

100532A1

BUSHING

Used With Right-Hand or Left-Hand Swivel Housing, Not Included With Housing, Purchase Separately

2шт.

4

100529A1

OIL SEAL,45mm ID x 65mm OD x 12mm Thk

45 x 65 x 12 mm thk; 381380A1 Axle

2шт.

4

402359A1

OIL SEAL

45 x 60 x 16 mm thk, Triple Lip; 427084A1 Axle

2шт.

5

85805986

NUT,M16

2шт.

6

1537664C1

BOLT,M16 x 100mm

2шт.

7

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

2шт.

8

100533A1

BOLT,Self-Lock, M12 x 30mm

M12 x 30

16шт.

9

122265A1

PIN,35mm / 45mm OD x 45.5mm L

King

2шт.

10

122264A1

PIN

King

2шт.

11

N13505

LUBE NIPPLE,45 Degree, M6 x 1

2шт.
