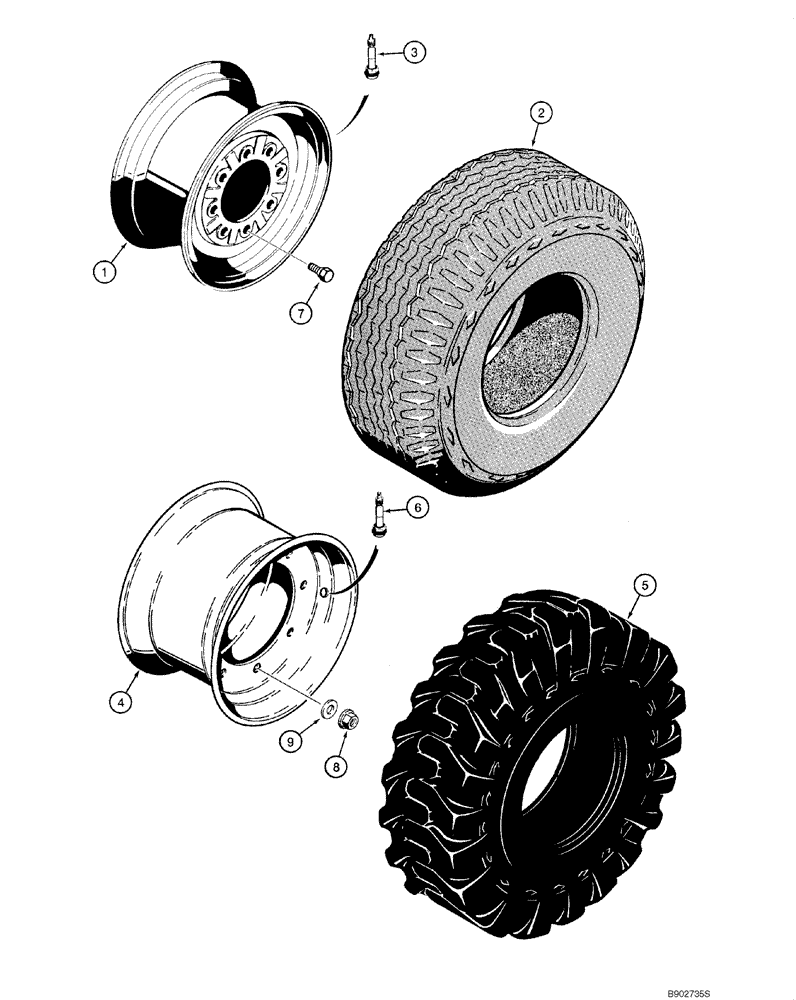

Запчасти Case 580M (05-12) - WHEELS, FRONT - TIRES (05) - STEERING

1

D125223

WHEEL,W8Lx16, 8 Holes, CASE Power Tan

For 11L x 16 - 10 PR F3 Tires; 2WD Models

2шт.

2

REF

INSTRUCTION

Tire, Purchase Locally

2шт.

3

A38261

VALVE

2шт.

4

119243A1

WHEEL,16.5x9.75, 8 Holes, CASE Power Tan

For 12 x 16.5 - 8 or 10 PR Tires; Four Wheel Drive Models

2шт.

5

REF

INSTRUCTION

Tire, Purchase Locally

2шт.

6

A38261

VALVE

2шт.

7

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

2WD Models

16шт.

8

825-11418

NUT,M18 x 1.5, Cl 8

M18; Wheel Nuts; Four Wheel Drive Models

16шт.

9

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

Wheel Nuts; 4WD Models

16шт.
