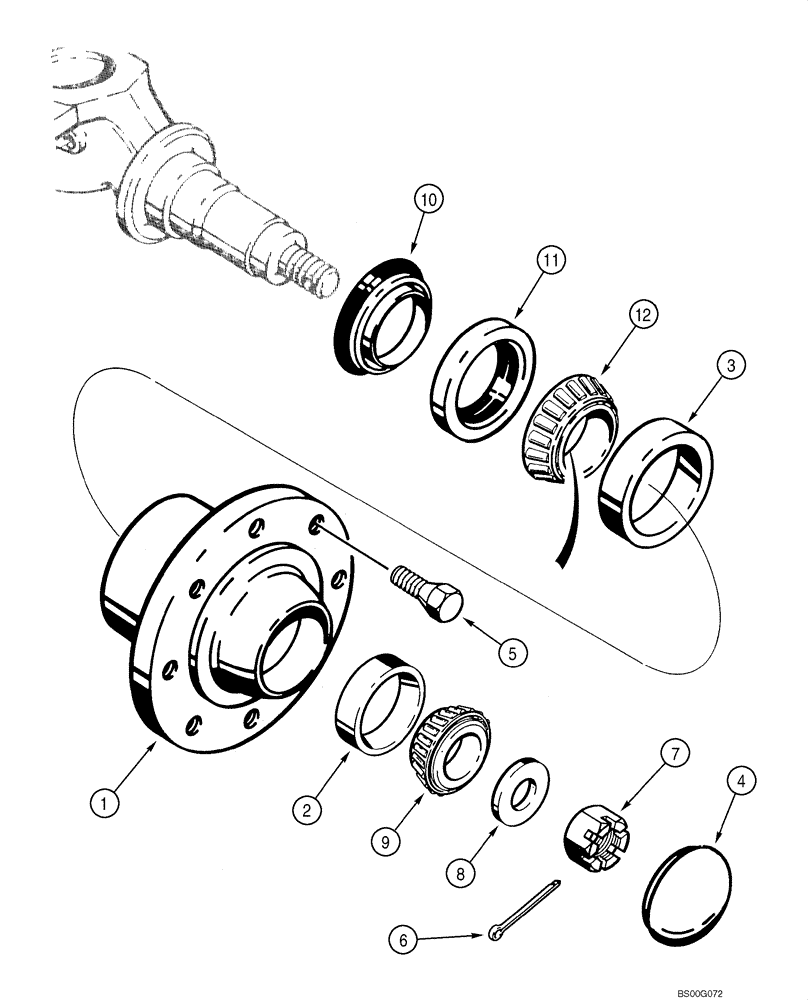

Запчасти Case 580M (05-06) - AXLE, FRONT (D138954 / 437320A1) - HUB AND BEARINGS (IF USED) (05) - STEERING

D75103

HUB

Assembly, Incl. Ref 1 - 3, 11, 12; Order Ref 1 - 3

2шт.

1

A66759

HUB

1шт.

2

619387R1

BEARING CUP

3-1/16 OD

1шт.

3

625743C1

BEARING CUP,90mm OD x 18.5mm W

3-35/64 OD

1шт.

4

D143405

CAP

2шт.

5

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

16шт.

6

432-1232

COTTER PIN,3/16" OD x 2" L

2шт.

7

425-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

1-1/8 NF

2шт.

8

D74949

WASHER,28.96mm ID x 60.45mm OD x 4.88mm Thk

2шт.

9

G15215

ROLLER BEARING

2шт.

10

A61449

SEAL,64.97mm ID x 94.67mm OD x 12.45mm Thk

Spindle

2шт.

11

A61448

OIL SEAL,67.26mm ID x 97.16mm OD x 12.7mm Thk

Hub

2шт.

12

296824A1

TAPERED BEARING,55mm ID x 23mm W

2шт.
