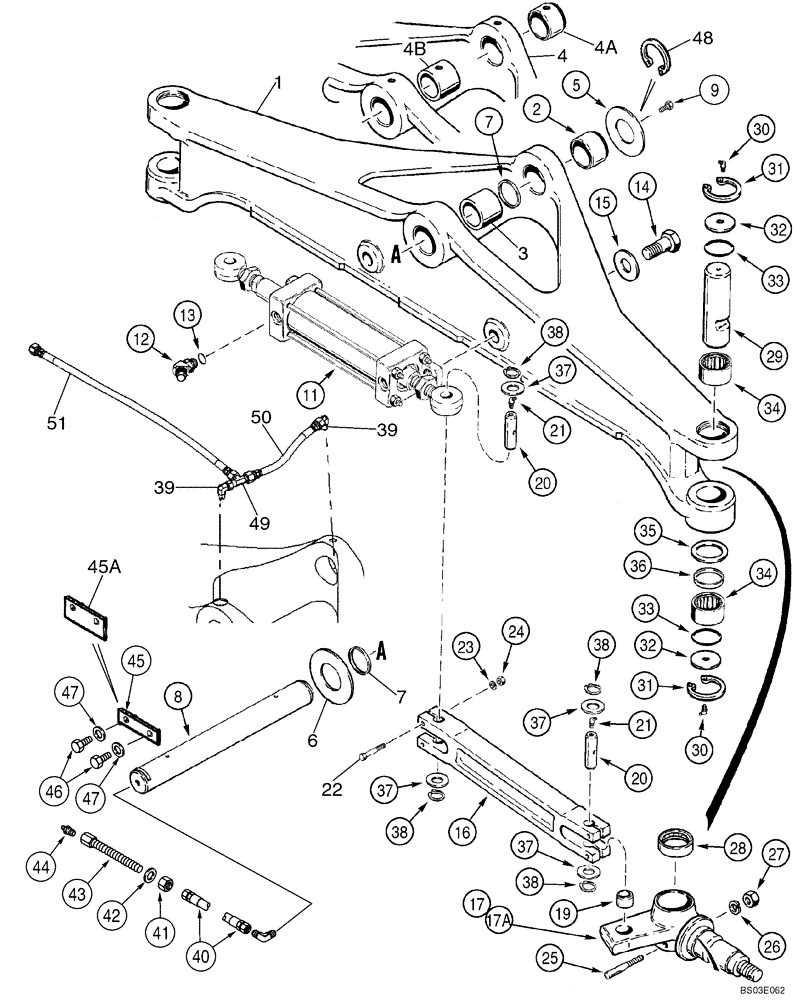

Запчасти Case 580M (05-05) - AXLE, FRONT (D138954 / 437320A1) - SPINDLES (IF USED) (05) - STEERING

111663A1

CENTER AXLE

Used In Production, For Service Order D138954 Axle, Ref 1

1шт.

1

D138954

AXLE, FRONT

Incl. Ref 2, 3, 7; If Used

1шт.

D138954R

REMAN-FRT AXLE wo DL

580M

1шт.

D138954C

CORE-FRONT AXLE

Return Number

1шт.

2

D137345

BUSHING,50.19mm ID x 60mm OD x 36mm L

1шт.

3

D138047

BUSHING,50.22mm ID x 60mm OD x 54mm L

1шт.

4

437320A1

FRONT AXLE

Incl. Ref 4A, 4B; If Used

1шт.

4a

441132A1

BUSHING,50.19mm ID x 60mm OD x 36mm W

36 mm (1-13/32 in) lg

1шт.

4b

441131A1

BUSHING,50.22mm ID x 60mm OD x 65mm L

1шт.

5

191796A1

WASHER,51.6mm ID x 92mm OD x 1.98mm Thk

1шт.

6

D123684

WASHER,52.3mm ID x 114mm OD x 4.78mm Thk

Thrust

1шт.

7

D123655

SEAL,50mm ID x 60.15mm OD x 4.06mm Thk

Grease

2шт.

8

397783A1

PIVOT PIN,50mm OD x 427mm L

Holes on Both Ends, Plus Two On Top; If Used

1шт.

8

378290A1

PIN,50mm OD x 431.5mm L

Holes on Both Ends, Plus Two On Top; If Used

1шт.

8

391451A1

PIVOT PIN,50mm OD x 431.5mm L

One Hole Opposite Tapered End; If Used

1шт.

9

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

If used

1шт.

11

G107720

CYLINDER,Double Acting, 38.1mm Rod, 85.1mm Stroke

Steering, See Figure 05-04

1шт.

11

G107720R

REMAN-HYD CYLINDER

580M

1шт.

11

G107720C

CORE-HYD CYLINDER

Return Number

1шт.

12

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. Ref 13

2шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

14

13-1638

BOLT,Hex, 1" - 8 x 2-3/8", Gr 5, Full Thd

No Longer Used, For Service Order 446106A1 Bolt

2шт.

14

446106A1

BOLT (MACHINE),Hex, 1" - 8 x 2 3/8", Gr 5

Lock

2шт.

15

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

Hardened

2шт.

16

D123806

LINK, CONNECTING

2шт.

17

320977A1

SPINDLE

Right-Hand, .137 Inch Radius, Does Not Include Bushing, Order Bushing Separately, For Service Order 335130A1, Ref 17A

1шт.

17a

335130A1

SPINDLE

Right-Hand, .137 Inch Radius, Incl. Ref 19

1шт.

18

303428A1

SPINDLE

Left-Hand, .137 Inch Radius, Does Not Include Bushing, Order Bushing Separately, For Service Order 335132A1, Ref 18A, Not Illustrated

1шт.

18a

335132A1

SPINDLE

Left-Hand, .137 Inch Radius, Incl. Ref 19, Not Illustrated

1шт.

19

D127507

BUSHING,22.33mm ID x 32.25mm OD x 25mm L

1шт.

20

D150155

PIN,22.2mm OD x 89mm L

4шт.

21

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

4шт.

22

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

8шт.

23

492-11038

LOCK WASHER,3/8"

8шт.

24

425-106

NUT,3/8"-16, Cl 5

8шт.

25

D57486

PIN

2шт.

26

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

27

425-118

NUT,1/2"-20, G5

2шт.

28

A27602

THRUST BEARING,2.041" ID x 2.9475" OD x 0.635"

2шт.

29

D123865

PIVOT PIN,50.8mm OD x 168.91mm L

2шт.

30

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

4шт.

31

100-21237

SNAP RING,2.375", Int, #237

4шт.

32

D72371

WASHER,3.17mm ID x 60.2mm OD x 4.57mm Thk

Used As A Spacer

4шт.

33

238-5139

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

4шт.

34

A28230

NEEDLE BEARING,Needle, 50.78mm ID x 60.34mm OD x 25.4mm W

4шт.

35

D72372

WASHER,50.85mm ID x 69.6mm OD x 0.81mm Thk

Thrust

2шт.

36

D61297

SEAL,50.8mm ID x 60.22mm OD x 6.4mm Thk

2шт.

37

495-11094

WASHER,7/8", SAE

8шт.

38

103-1687

SNAP RING,#87, Ext

8шт.

39

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

1-2шт.

40

399554A1

HOSE ASSY.,1/8" ID x 550mm L, ES-B120 Class 16

550 mm (21-21/32 in) lg, Lubrication Line; If Used

1шт.

41

218-1275

NUT,Blkhd, 7/16"-20

1шт.

42

495-11047

WASHER,7/16", SAE

1шт.

43

381442A1

CONNECTION

1шт.

44

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1-2шт.

45

377009A1

BACK PLATE

No Longer Available, Order 377009A2, Ref 45A

1шт.

45a

377009A2

BACK PLATE

60 x 38; If Used

1шт.

46

607-10020

BOLT,Hex, M10 x 20mm, Cl 10.9

Replaces 627-10020 Non-Locking Bolt Used On Some Models; If Used

2шт.

47

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

If Used

2шт.

48

800-44050

SNAP RING,M50, Ext

If Used

2шт.

49

218-5478

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

Tee; If Used

1шт.

50

447737A1

HOSE ASSY.,1/8" ID x 210mm L, ES-B120 Class 16

210 mm (8-9/32 in) lg, Remote Lube; If Used

1шт.

51

381386A1

HOSE ASSY.,1/8" ID x 500mm L, ES-B120 Class 16

500 mm (19-11/16 in) lg, Remote Lube; If Used

1шт.

D103626

PACKAGE

King Pin Kit, Incl. Ref 25, 28 - 36

1шт.
