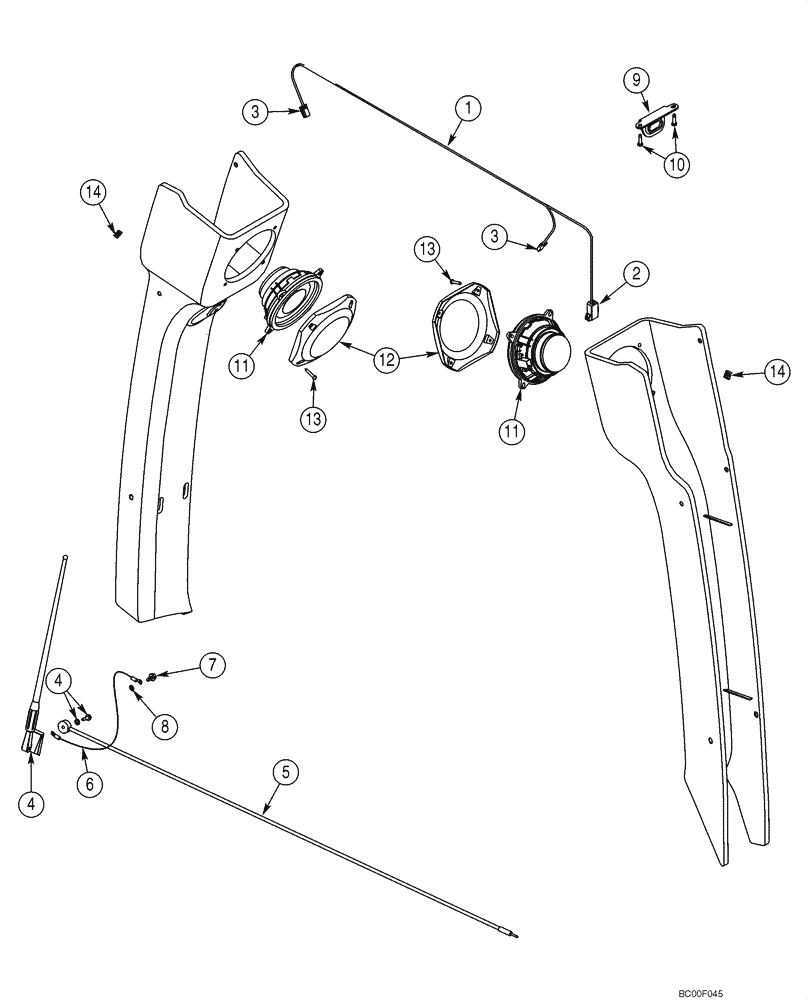

Запчасти Case 580M (04-18) - ANTENNA, RADIO - HARNESS, RADIO (04) - ELECTRICAL SYSTEMS

1

382664A2

WIRE HARNESS

Speaker, Incl. Ref 2, 3

1шт.

2

227389A1

CONNECTOR, ELEC

CONNECTOR To Cab Harness

1шт.

3

195552A1

ELEC CONNECTOR,Female, 2 Pin

Speaker

2шт.

4

197745A1

ANTENNA

Radio; Incl. Flat Washer and Nut Which Are Not Serviced Separately

1шт.

5

381659A1

ELECTRIC CABLE

1шт.

6

291010A1

ELECTRICAL WIRE

WIRE Ground

1шт.

7

282-17512

SCREW,Hex Wshr Hd, #10 - 16 x 3/4"

No 10 x 3/4

1шт.

8

893-11005

LOCK WASHER,Ext Tooth, M5

1шт.

9

386927A1

BRACKET

1шт.

10

276-26512

SELF-TAP SCREW,Hex Hd, #10 x 3/4"

No. 10 x 3/4, st

2шт.

11

182721A2

SPEAKER

5-1/2

2шт.

12

187281A1

COVER

2шт.

13

761-17325

SELF-TAP SCREW,Pan Hd, M4.2 x 25

8шт.

14

177269A1

SPRING NUT,M4.2

8шт.
