(04-13) - ELECTRICAL - LAMPS, ROPS CANOPY

Запчасти Case 580M (04-13) - ELECTRICAL - LAMPS, ROPS CANOPY (04) - ELECTRICAL SYSTEMS

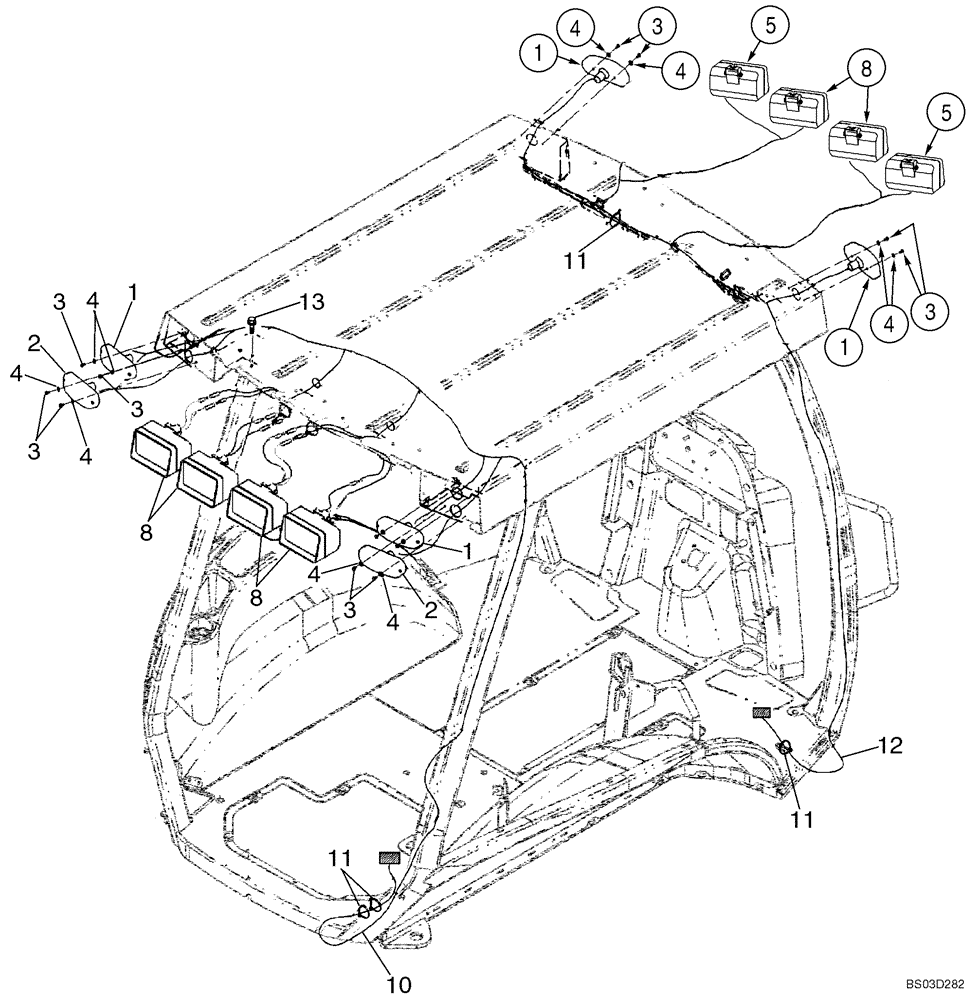

Схема запчастей Case 580M - (04-13) - ELECTRICAL - LAMPS, ROPS CANOPY (04) - ELECTRICAL SYSTEMS
5
11
12
4
2
13
10
1
1
4
11
8
4
3
4
4
8
3
11
4
8
5
4
1
3
4
3
3
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D135384

LAMP,12V

Turn Signal and Flasher; See Figure 04-15

4шт.

2

D121152

LAMP,12V

Stop And Tail; See Figure 04-15

2шт.

3

329032A1

SELF-TAP SCREW,Hex WAHR HD TPG #10 x 0.375 END TT

No. 10 x 3/8

12шт.

4

495-31022

WASHER,#10

12шт.

5

398846A3

LIGHT ASSY.

Front Driving; Incl. 1312210C2, 404996A1

2шт.

1312210C2

BULB,Halogen H3, 12V, 55W

12V, 55W, H3

1шт.

NSS

NOT SOLD SEPARAT

Lens

1шт.

8

398847A3

WORK LAMP,Halogen, 12V, 55W, Clear

Front and Rear Flood and Work Lamps, Incl. 1312210C2, 276498A1

4-6шт.

1312210C2

BULB,Halogen H3, 12V, 55W

12V, 55W, H3

1шт.

276498A1

LENS

With Hardened Glass; Replaces 1964801C1 Non-Hardened Lens Used In Production

1шт.

10

396023A2

WIRE HARNESS

Canopy Lamps, Rear

1шт.

11

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

8шт.

12

404617A1

WIRE HARNESS

Canopy Lamps, Front

1шт.

13

128312A1

FLANGE BOLT,Hvy Hex, M10 x 1.5 x 15mm, Gr 8.8

M10 x 15

8шт.
