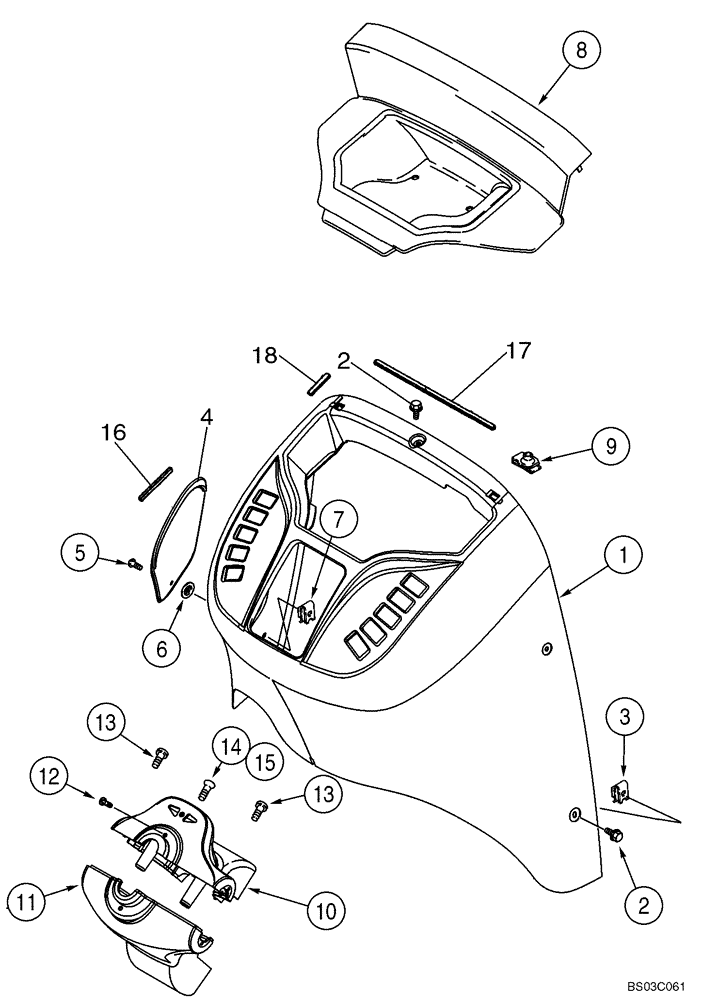

Запчасти Case 580M (04-10) - INSTRUMENT PANEL, FRONT - COVERS (04) - ELECTRICAL SYSTEMS

1

355827A2

CONSOLE

Front

1шт.

2

555-10

BOLT,Hvy Hex, M6 x 16mm, Cl 8.8

6шт.

3

833-40406

NUT,M6, U

6шт.

4

360244A1

COVER

Fuse Access

1шт.

5

182276A1

SCREW

1шт.

6

127009A1

CLIP,ELECTRICAL

1шт.

7

131-861

SPRING NUT,Tinn, U, #10-24

1шт.

8

360245A2

COVER

Relay Access

1шт.

9

278316A2

CLIP

2шт.

10

373689A2

COVER

Steering Column, Upper; Incl. Ref 10A - 10E; Components Not Illustrated

1шт.

10a

360242A2

COVER

1шт.

10b

303465A2

LAMP,12V, 2W

1шт.

10c

303466A1

SYMBOLS

SYMBOL RH Flasher

1шт.

10d

303467A1

SYMBOLS

SYMBOL LH Flasher

1шт.

10e

373693A1

SCREW,Torx, #8 - 18 x 7/16"

1шт.

11

360243A2

COVER

Steering Column, Lower

1шт.

12

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

2шт.

13

140-106

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

2шт.

14

260-1358

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

1шт.

15

131-121

SPRING NUT,Tinn, U, #10-24

1шт.

16

414572A1

STRIP

100 mm, Adhesive Back

1шт.

17

414034A1

STRIP,330mm

330 mm, Adhesive Back

1шт.

18

414033A1

STRIP,60mm

60 mm, Adhesive Back

4шт.
