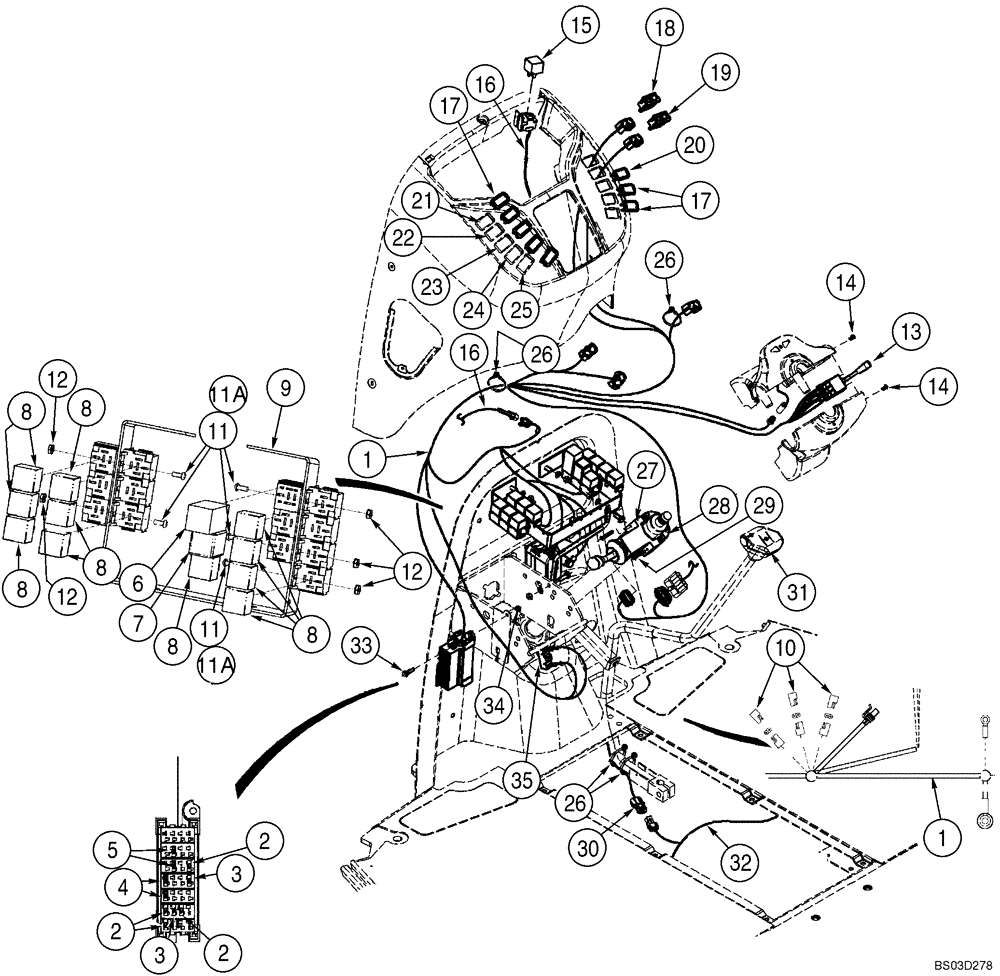

Запчасти Case 580M (04-07) - HARNESS, FRONT CONSOLE - SWITCHES (04) - ELECTRICAL SYSTEMS

1

396015A1

HARNESS

Front Console, Incl. Ref 13

1шт.

2

121412A1

FUSE,10A, Mini, Red

Red

4шт.

3

121413A1

FUSE,15A, Mini, Blue

Blue

2шт.

4

121414A1

FUSE,20A, Mini, Yellow

Yellow

2шт.

5

121416A1

FUSE,30A, Mini, Green

Green

2шт.

6

87578455

RELAY,12V, Turn Signal and Hazard

Flasher; Hazard, Turn Signal; Replaces D147166

1шт.

7

347706A3

RELAY,12V, 5A

Sealed Time Delay; Shuttle Interlock Timing Relay, Forward Reverse Control

1шт.

8

314451A1

RELAY

40 amp, 12V

11шт.

9

361900A1

BRACKET

Relay Mounting

1шт.

10

L71879

DIODE ELEMENT,400V, 3A

3шт.

11

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

6шт.

11a

490-1106

SCREW,Cross Pan Hd, #10-32 x 3/8"

No. 10 x 3/8

1шт.

12

193-1000

NUT,Keps, w/LW,#10-32

No. 10 NF, With External Tooth Lock Washer

1шт.

13

389487A1

LIGHT SWITCH

Turn Signal/Driving Lamp High/Low Beam

1шт.

14

84178909

SCREW,M4 x 12mm

M4 x 12

2шт.

15

314451A1

RELAY

40 amp, 12V, Air Conditioning; Attaches To Front Console Options Harness

1шт.

16

390519A3

HARNESS

Front Console Options, Front Options Incl. Hand Held Auxiliary Hydraulics Switch, Front Windshield Washer Switch, Loader Tool Quick Coupler Switch, and Air Conditioner Relay; Incl. L71879

1шт.

L71879

DIODE ELEMENT,400V, 3A

1шт.

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

Mounts Relay Recepticle

1шт.

193-1000

NUT,Keps, w/LW,#10-32

Mounts Relay Recepticle

1шт.

17

86000535

PLUG,1.427" x .62", Plastic

Accessory, If used

2-8шт.

18

386849A1

ROCKER SWITCH

Front Work Lamps

1шт.

19

386850A1

ROCKER SWITCH

Hazard Lamps

1шт.

20

386851A1

BEACON SWITCH

Rotating Beacon, If Used

1шт.

21

191532A1

SWITCH

Hand Held Auxiliary Hydraulics, If Used

1шт.

22

386785A1

WINDSHIELD WIPER SWI

Front Wiper, If Used

1шт.

23

386787A1

WINDSHIELD WASHER SW

Front, If Used

1шт.

24

398675A2

ROCKER SWITCH

Loader Tool Quick Coupler, If Used

1шт.

25

386791A1

SWITCH

Cold Start, If Used

1шт.

26

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

4шт.

27

278328A1

SWITCH

Shuttle Shift, Transmission Forward/Neutral/Reverse Switch

1шт.

28

366889A2

HALF-COLLAR

HALF COLLAR Shuttle Lever, Includes Threaded Insert

1шт.

29

397990A1

SCREW,Phillips Drive, Pan HD, M5 x 0.8 x 35mm

M5 x 35

2шт.

30

123809A2

WIRE HARNESS

Clutch Cutout, Transmission Gear Shift Lever, For Lever, See Figure 06-12

1шт.

31

123097A1

SWITCH

Clutch Cutout, For Lever and Knob, See Figure 06-12

1шт.

32

396014A1

HARNESS

Engine, Incl. L71879

1шт.

L71879

DIODE ELEMENT,400V, 3A

3шт.

33

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

1шт.

34

832-10406

NUT,M6 x 1, Cl 8

1шт.

35

D148108

SWITCH

Brake Lamp, Incl. Hardware, For Mounting, See Figure 07-03

1шт.

390520A2

HARNESS

Chassis Options, Chassis Options Incl. Ride Control Solenoids, Hand Held Auxiliary Hydraulics Solenoid

1шт.

L71879

DIODE ELEMENT,400V, 3A

4шт.
