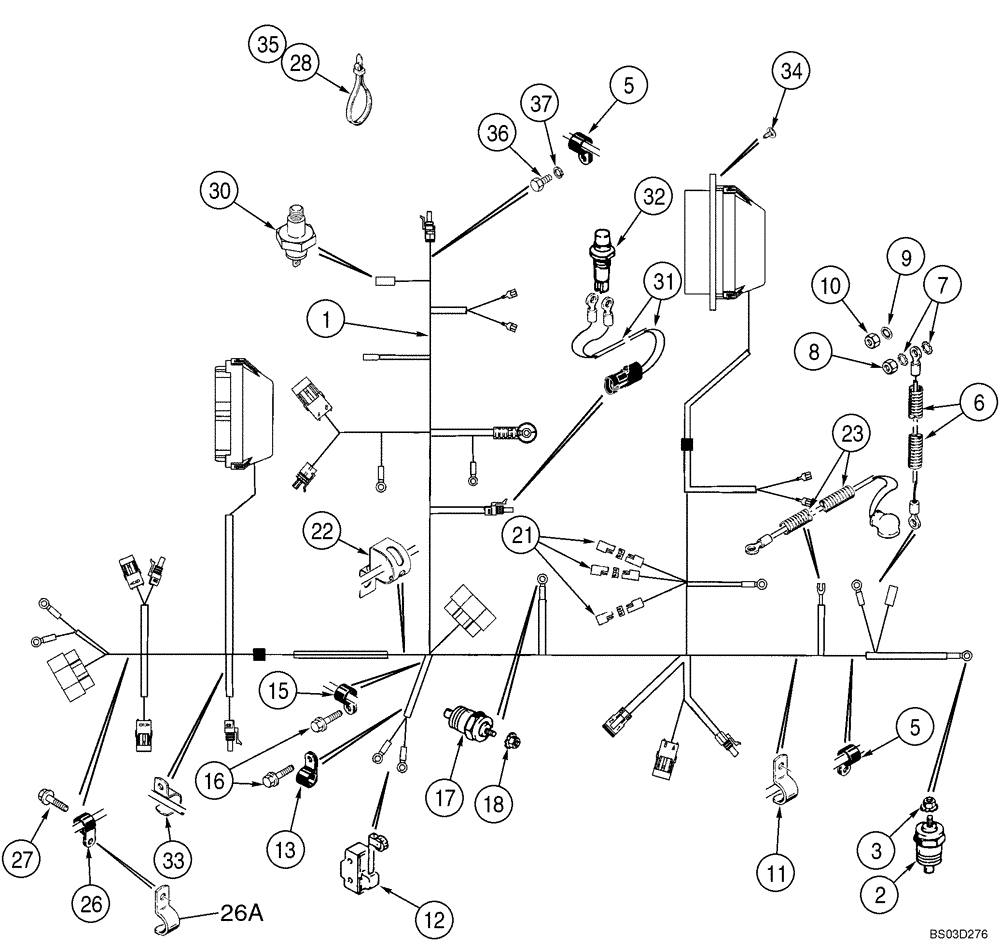

Запчасти Case 580M (04-04) - HARNESS, ENGINE - MOUNTING AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

396014A1

HARNESS

Engine

1шт.

2

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

Engine Water Coolant Temperature

1шт.

3

193-1000

NUT,Keps, w/LW,#10-32

No. 10 NF, With External Tooth Lock Washer

1шт.

5

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

(7.9 mm), Use Existing Hardware

2шт.

6

D143830

CABLE

, Serial Range: Alternator-Starter

1шт.

7

493-21033

LOCK WASHER,Int Tooth, 5/16"

2шт.

8

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

9

493-21020

LOCK WASHER,Int Tooth, #10

(3/16")

1шт.

10

824-1405

NUT,M5, Cl 5

1шт.

11

D147383

CLIP,5/8" J

Use Existing Hardware

1шт.

12

D137363

SWITCH

Return To Dig, For Mounting, See Figure 04-04

1шт.

13

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

At Return To Dig Limit Switch

1шт.

15

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

16

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

2шт.

17

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

Transmission Temperature

1шт.

18

193-1000

NUT,Keps, w/LW,#10-32

No. 10 NF, With External Tooth Lock Washer

1шт.

21

L71879

DIODE ELEMENT,400V, 3A

3шт.

22

192196A2

CLAMP

Attaches to Backup Alarm Wire

1шт.

23

381262A1

ELECTRICAL WIRE

WIRE Power

1шт.

26

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

For Brake Cable Bracket, See Figure 07-06

1шт.

26a

D147383

CLIP,5/8" J

Clamp, For Brake Cable Bracket, See Figure 07-23, If Used

1шт.

27

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

28

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

32шт.

30

277016A1

PRESSURE SWITCH

Oil, M10, Incl. Ref 30A

1шт.

30a

637-62081

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

Not Illustrated

1шт.

31

123809A2

WIRE HARNESS

Clutch Cutout, Transmission Gear Shift Lever, Incl Ref 31A, 31B

1шт.

31a

246526A1

CONNECTOR, ELEC

CONNECTOR Not Illustrated

1шт.

31b

NSS

NOT SOLD SEPARAT

Eye, Not Illustrated

2шт.

32

123097A1

SWITCH

Push Button, Clutch Cutout, Transmission Gear Shift Lever, For Lever and Knob, See Figure 06-12

1шт.

33

D147383

CLIP,5/8" J

Use Existing Hardware

1шт.

34

781-24613

SELF-TAP SCREW,Hex Flg, M6 x 1 x 13mm

M6 x 13

4шт.

35

305342A1

STRAP,450mm L

450 mm (18 in), Air Filter Restriction Branch to Air Filter Inlet Tube

1шт.

36

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

If Used

1шт.

36

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

For Models with Attenuator Hose

1шт.

37

892-11008

LOCK WASHER,8mm ID

1шт.
