Запчасти Case 580M (04-02) - ALTERNATOR (04) - ELECTRICAL SYSTEMS

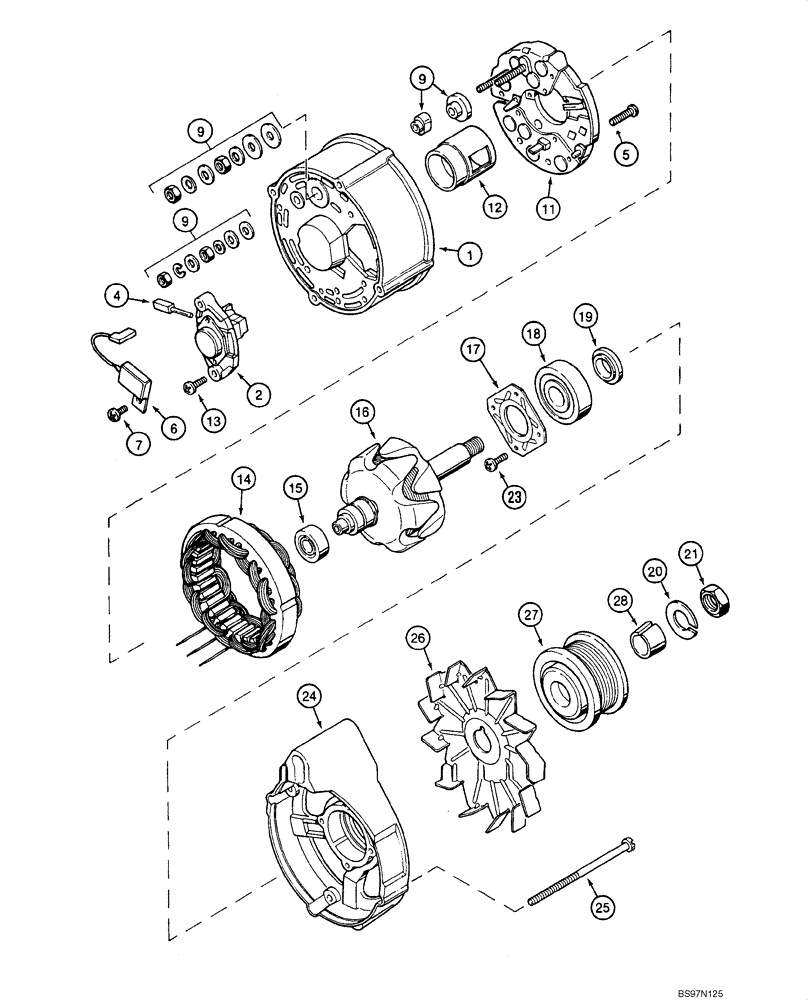

Схема запчастей Case 580M - (04-02) - ALTERNATOR (04) - ELECTRICAL SYSTEMS
1
9
13
4
19
18
5
15
11
9
16
17
7
12
21
25
14
6
24
9
27
26
23
20
28
2

Артикул

Название

Примечание

Количество

A187873

ALTERNATOR,12V, 65A

12V, 65 amp; Incl. Ref 1 - 25

1шт.

AR187873

REMAN-ALTERNATOR

Reman for New PN A187873

1шт.

AC187873

CORE-ALTERNATOR

Return number

1шт.

A187873GV

ALTERNATOR

Value, 12V, 65A

1шт.

1

A187903

COVER

Collector Ring End

1шт.

2

A187906

VOLTAGE REGULATOR

1шт.

4

1964968C1

COMMUTATOR BRUSH

Set Of Two

1шт.

5

1530431C1

BOLT,Hex, 1 1/4" - 7 x 7", Gr 8, W/ Wshr

With Washer

2шт.

6

3079134R1

CAPACITOR

1шт.

7

840-1510

SCREW,Pan, M5 x 10mm, Cl 4.8

1шт.

9

A187904

MULTIPOLE CONNECTOR

Hardware

1шт.

11

360330A1

RECTIFIER

1шт.

12

A187899

INNER SHIELD

1шт.

13

A187504

SCREW

2шт.

14

1964966C1

STATOR

1шт.

15

A186186

BALL BEARING,12mm ID x 32mm OD x 10mm W

1шт.

16

1964964C1

ROTOR

1шт.

17

A187901

FIXING PLATE

1шт.

18

A186183

BALL BEARING,17 mm ID x 47 mm OD x 14 mm

1шт.

3078897R1

SET OF PARTS

Incl. Ref 19 - 23

1шт.

19

NSS

NOT SOLD SEPARAT

Ring

1шт.

20

NSS

NOT SOLD SEPARAT

Washer

1шт.

21

NSS

NOT SOLD SEPARAT

Nut

1шт.

22

NSS

NOT SOLD SEPARAT

Key, Not Used In This Application

1шт.

23

NSS

NOT SOLD SEPARAT

Screw

4шт.

24

A186182

HOUSING

Drive End

1шт.

25

A186193

BOLT,Pan, Cross Recess Phillips, M5 x 110mm

4шт.

26

221425R1

FAN

Not Included In Assembly, Purchase Separately

1шт.

27

J908560

PULLEY

Not Included In Assembly, Purchase Separately; Ref 28 Retainer Not Required With Replacement Pulley 84538542

1шт.

28

J908563

RETAINER

Not Included In Assembly, Purchase Separately; Not Used With Replacement Pulley 84538542

1шт.

Выбрано товаров: 30
