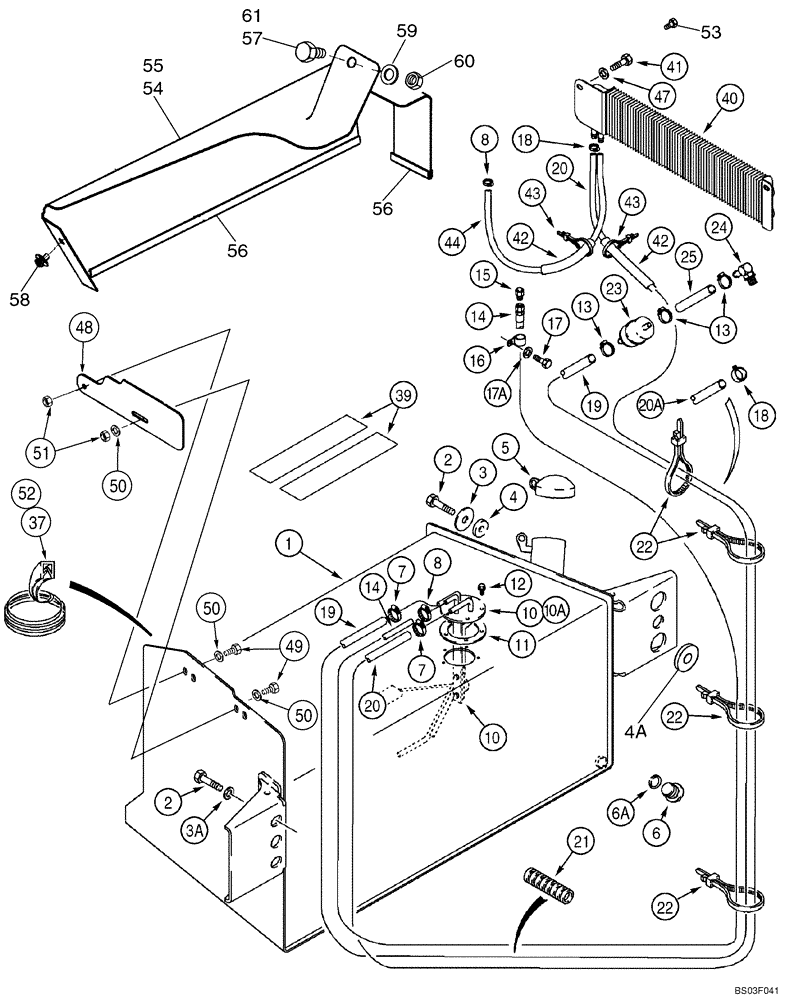

Запчасти Case 580M (03-01) - FUEL LINES, RESERVOIR - FILTER, IN-LINE FUEL (03) - FUEL SYSTEM

1

360629A6

FUEL TANK

31 gal, Incl. Ref 6; Without Welded Fuel Sender Tubes; Includes Left Hand Steps, Mounts to Left Hand Side of Chassis; Replaces 360629A4, 360629A5; If Used

1шт.

1

87419482

FUEL TANK

31 gal, Incl. Ref 6; With Welded Fuel Sender Tubes; Includes Left Hand Steps, Mounts to Left Hand Side of Chassis; If Used

1шт.

1a

360630A4

FUEL TANK

40 gal, Incl. Ref 6, Optional; Without Welded Fuel Sender Tubes; Includes Left Hand Steps, Mounts to Left Hand Side of Chassis, Not Illustrated; If Used

1шт.

1a

87419585

FUEL TANK

40 gal, Incl. Ref 6, Optional; With Welded Fuel Sender Tubes; Includes Left Hand Steps, Mounts to Left Hand Side of Chassis, Not Illustrated; If Used

1шт.

2

443375A1

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9

M20 x 60; With Loctite; Replaces 627-20060 Bolt Without Loctite Used On Some Models

4шт.

3

302358A1

WASHER,21mm ID x 54mm OD x 4mm Th

2шт.

3a

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

2шт.

4

185926A1

SPACER,21mm x 40mm x 6.6mm Th

Upper Left Hand Side of Tank

1шт.

4a

409472A1

SPACER

Lower Left Hand Side Of Tank

1шт.

5

130049A1

FILLER CAP

Cap

1шт.

6

86625138

PLUG,7/18" - 14

Drain, Includes Ref 6A, Included with Ref 1, 1A

1шт.

6a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

7

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

2шт.

8

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

10

380440A1

SENDER UNIT

SENDER Fuel Level, 31 Gallon Tank, With Tubes, Includes Grounding Nut, Lock Washer and Flat Washer; If Used

1шт.

10

86989676

SENDER UNIT

Fuel Level, 31 Gallon Tank, Without Tubes, Used With 87419482 Tank; If Used

1шт.

10a

380442A1

SENDER UNIT

SENDER Fuel Level, 40 Gallon Tank, With Tubes, Includes Grounding Nut, Lock Washer and Flat Washer; If Used

1шт.

10a

87408480

SENDER UNIT

Fuel Level, 40 Gallon Tank, Without Tubes, Used With 87419585 Tank; If Used

1шт.

11

188311A2

GASKET,2.38mm Thk

1шт.

12

D75465

SCREW,#10 - 32 x 5/8"

5шт.

13

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

3шт.

14

234892A1

HOSE

HOSE,LARGE 1100mm (43-5/16 in), Vent

1шт.

15

130047A1

BREATHER ASSY.

Vent

1шт.

16

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

17

276-24924

SELF-TAP SCREW,3/8" - 16 x 1 1/2"

1шт.

17a

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

1шт.

18

1348264C1

HOSE CLAMP

3/8 ID

1-2шт.

19

234888A1

FUEL HOSE,12.70 mm ID x 1280.00 mm , SAE 30R7

Fuel Supply, to Fuel Lift Pump

1шт.

20

244552A1

FUEL HOSE,9.53 mm ID x 2550.00 mm, SAE 30R7

Return, Fuel Cooler to Tank, Models Without Turbocharged Engine

1шт.

20a

284452A2

FUEL HOSE,9.53 mm ID x 1900.00 mm, SAE 30R7

Fuel Return, Attaches to Injector Return Line on Engine, Models Without Turbocharged Engine

1шт.

21

399004A1

HOSE PROTECTION,38.90 mm ID x 270.00 mm

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.

23

194199A1

FUEL FILTER

In-Line Fuel Filter

1шт.

24

410847A1

FITTING

Elbow, 90 deg, 12 stem x 1/4 PT, With Loctite; To Engine Fuel Lift Pump; Replaces 217-372 Elbow Without Loctite Used On Some Models

1шт.

25

393827A1

FUEL HOSE,12.70 mm ID x 152.00 mm, SAE 30R7

Fuel Filter to Lift Pump

1шт.

37

D40442

MOLDING

Trim, 305 mm (12 in), Cut From F42827; If Used

1шт.

39

D80270

ANTI-SKID STRIP,635mm / 25 Inch

Non-Slip, 635 mm (25 in) x 51 mm (2 in), 31 Gallon Tank

2шт.

39

307348A1

ANTI-SKID STRIP

700 mm (27-9/16"), 40 gallon tank

2шт.

40

379499A2

COOLER

FUEL, Ref 40 - 44 Are Used on Models Without Turbocharged Engine

1шт.

41

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

If used

2шт.

42

143219A1

HOSE PROTECTION,19mm ID x 24mm OD x 450mm L

Sleeve

2шт.

43

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

4шт.

44

303922A1

FUEL HOSE

1225 mm (48-1/4 in), Injection Pump to Fuel Cooler

1шт.

47

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

If Used

2шт.

48

397548A3

PLATE

Mud

1шт.

49

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

51

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

52

399923A1

RUBBER STRIP

Trim, 203 mm; If Used

1шт.

53

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

If Used

2шт.

54

189602A3

COVER

Used With Two Spool Loader Valves

1шт.

55

188009A3

COVER

Used With Three Spool Loader Valves

1шт.

56

191046A1

ORNAMENTAL STRIP

Trim, Left-Hand, Cut Into 575 mm and 75 mm Strips

1шт.

57

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

Use with 188009A3 Cover on Models with Three Spool Loader Valve

1шт.

58

307577A1

BOLT

M8 x 20

1шт.

59

892-11010

LOCK WASHER,M10

1шт.

60

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

61

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

Used with 189602A3 Cover On Models With Two Spool Loader Valve

1шт.

50

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.
