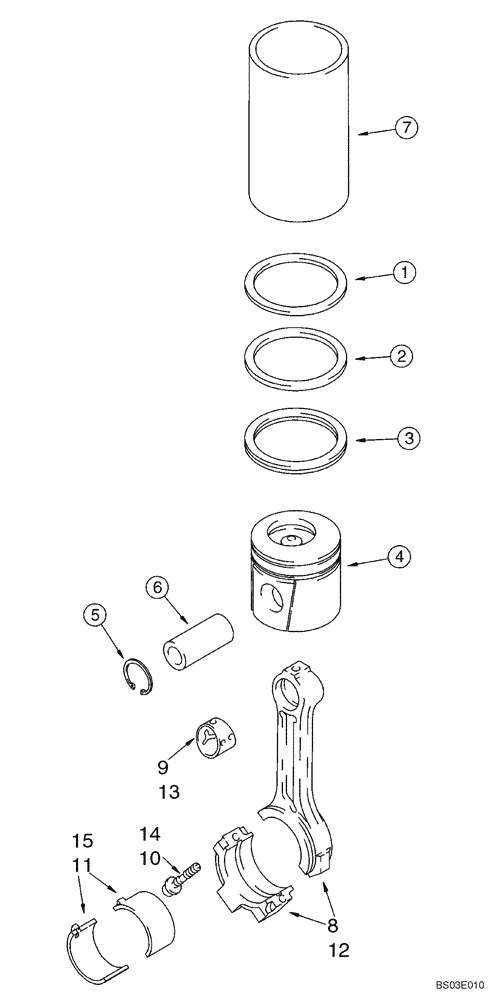

Запчасти Case 580M (02-28) - PISTONS AND CONNECTING ROD - 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

J802747

PISTON & RINGS KIT,100MM PISTON DIAMETER

Standard, Incl. 1 - 5, J802746

4шт.

J802746

PISTON RING SET

Incl. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

Ring, Top

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Oil

1шт.

4

NSS

NOT SOLD SEPARAT

Piston, Standard

1шт.

5

J920691

SPECIAL RING

2шт.

6

J934047

PIN,40mm OD x 82.68mm L

1шт.

J802764

PISTON & RINGS KIT

0,5 mm, Oversize, Incl. 1 - 5, J802422

4шт.

J802422

PISTON RING SET

0,5 mm, Incl. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

Ring, Top

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Oil

1шт.

4

NSS

NOT SOLD SEPARAT

Piston, Oversize

1шт.

5

J920691

SPECIAL RING

2шт.

6

J934047

PIN,40mm OD x 82.68mm L

1шт.

J802765

PISTON & RINGS KIT

1,0 mm, Oversize, Incl. 1 - 5, J802423

4шт.

J802423

PISTON RING SET

1,0 mm, Incl. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

Ring, Top

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Oil

1шт.

4

NSS

NOT SOLD SEPARAT

Piston

1шт.

5

J920691

SPECIAL RING

2шт.

6

J934047

PIN,40mm OD x 82.68mm L

1шт.

7

J904166

SLEEVE

Connecting Rods

1шт.

8

J942581

ROD, CONNECTING

Incl. 8 - 10; N.A. Built Engines Prior to SN 46231395; Great Britain Built Engines Prior to SN 21486151; Machined Rods; Machined Rods and Fractures Rods Can Not Be Used In The Same Engine Due To Weight Differences

4шт.

8

JR942581

REMAN-CONNECTING ROD

Machined Rod. Built Engines Prior to SN 46231395

4шт.

8

JC901569

CORE-ROD CONNECTING

Return Number

4шт.

9

J941476

BUSHING

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

M11 x 59

2шт.

11

A77465

BEARING SET

Standard

4шт.

11

A77466

BEARING SET

0,25 mm, Oversize

4шт.

11

A77467

BEARING LINER

0,50 mm, Oversize

4шт.

11

A77468

BEARING SET

0,75 mm, Oversize

4шт.

11

A77469

BEARING SET

1,0 mm, Oversize

4шт.

12

87413279

ROD, CONNECTING

Incl. 12 - 14; N.A Built Engines SN 46231395 And After; Great Britain Built Engines SN 21486150 And After; Fractured Split; Machined Rods and Fractures Rods Can Not Be Used In The Same Engine Due To Weight Differences

4шт.

12

87417069

REMAN-CONNECTING ROD

Built Engines SN 46231395 And After, Fractured Split

4шт.

12

87417070

CORE-ROD CONNECTING

Core-Connecting Rod, Return Number, Fractured Split

4шт.

13

87403209

BUSHING,40.03mm ID x 43.1mm OD x 38.1mm L

1шт.

14

87413283

BOLT,Flng, M11 x 1.25 x 58mm, Cl 10.9

2шт.

15

87425525

CRANKSHAFT BEARING

BEARING, CON. ROD, Standard

4шт.

15

87425526

CRANKSHAFT BEARING

BEARING, CON. ROD, 0,25 mm, Oversize

4шт.

15

87425527

BEARING SET

BEARING, CON. ROD, 0,50 mm, Oversize

4шт.

15

87425528

CRANKSHAFT BEARING

BEARING, CON. ROD, 0,75 mm, Oversize

4шт.

15

87425529

CRANKSHAFT BEARING

BEARING, CON. ROD, 1,00 mm, Oversize

4шт.
