Запчасти Case 580M (02-26) - CRANKSHAFT - 4-390/4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

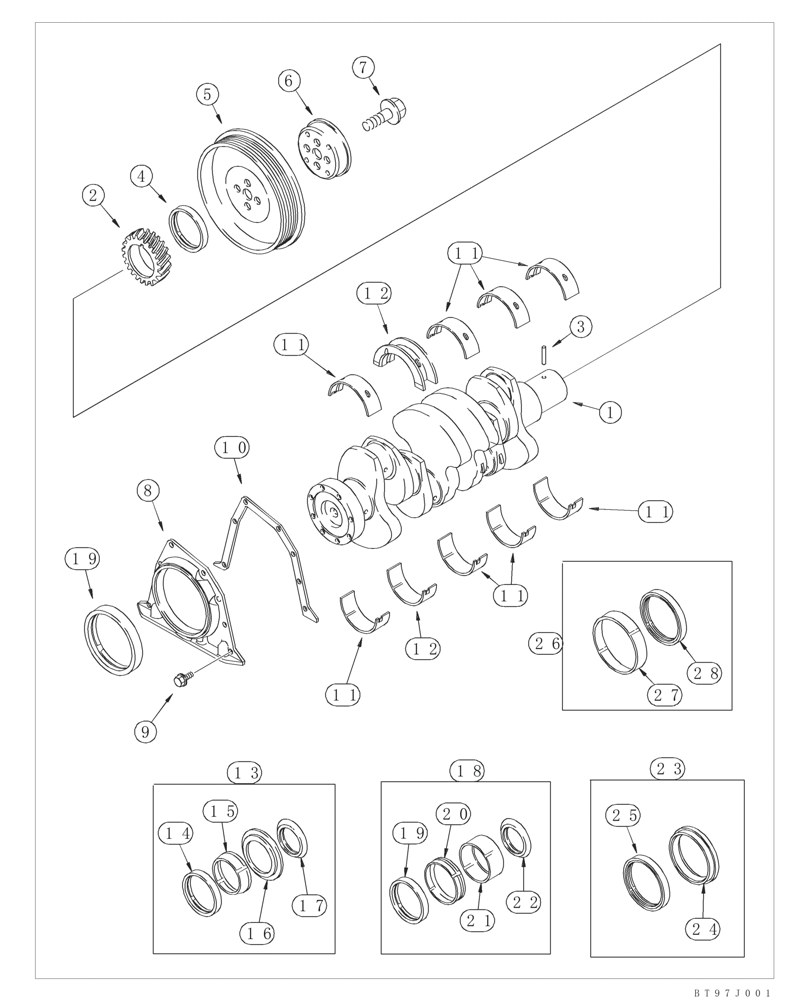

Схема запчастей Case 580M - (02-26) - CRANKSHAFT - 4-390/4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
4
11
13
1
12
17
16
5
12
11
8
6
26
20
22
19
3
14
28
24
19
9
27
bt97j001
7
15
21
18
23
10
11
11
2
11
25

Артикул

Название

Примечание

Количество

JR908031

CRANKCASE

Remanufactured; No Longer Available, Order J908031

1шт.

J929036R

REMAN-CRANKSHAFT

580M EMISSIONS, Reman for New P/N JR908031

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

JC908031

CORE-CRANKSHAFT

Return Number

1шт.

1

J908031

CRANKSHAFT

Incl. 2, 3

1шт.

J929036R

REMAN-CRANKSHAFT

580M EMISSIONS, Reman for New P/N J908031

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

2

J929027

PINION

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

1шт.

4

NSS

NOT SOLD SEPARAT

Seal, Order REF 13, A77889

1шт.

5

J914494

PULLEY,181.25mm OD

1шт.

6

J905820

ADAPTER

1шт.

7

J903857

BOLT,Hex, M12 x 1.25 x 36mm

M12 x 36

4шт.

8

J936904

REAR COVER

1шт.

9

87409160

SCREW,Hex, M6 x 1 x 16mm, Cl 10.9

M6 x 16; 10.9; Replaces 845-6015

6шт.

10

J938159

GASKET

Replaces J928493

1шт.

11

J804940

BEARING SET

4-390 Emissions Certified Engine

4шт.

11

A77405

CRANKSHAFT BEARING

4T-390 Emissions Certified Engine

4шт.

11

A77472

BEARING SET

0,25 mm, Undersize

4шт.

11

A77474

BEARING SET

0,50 mm, Undersize

4шт.

11

A77476

BEARING SET

0,75 mm, Undersize

4шт.

11

A77478

BEARING SET

1,0 mm, Undersize

4шт.

12

A77895

THRUST BEARING,KIT

4-390 Emissions Certified Engine

1шт.

12

A77896

BEARING SET

4T-390 Emissions Certified Engine

1шт.

12

A77473

THRUST BEARING

0,25 mm, Undersize

1шт.

12

A77475

THRUST BEARING

0,50 mm, Undersize

1шт.

12

A77477

THRUST BEARING

0,75 mm, Undersize

1шт.

12

A77479

THRUST BEARING

1,0 mm, Undersize

1шт.

12

A77841

THRUST BEARING

0,50 mm, Undersize

1шт.

12

A77840

THRUST BEARING

1,0 mm, Undersize

1шт.

13

A77889

SEAL PACKAGE

Front, Incl. 14 - 17

1шт.

14

NSS

NOT SOLD SEPARAT

Seal

1шт.

15

NSS

NOT SOLD SEPARAT

Tool

1шт.

16

NSS

NOT SOLD SEPARAT

Tool

1шт.

17

NSS

NOT SOLD SEPARAT

Shield

1шт.

18

A77890

SEAL PACKAGE

Front, Incl. 19 - 22

1шт.

19

NSS

NOT SOLD SEPARAT

Seal

1шт.

20

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

21

NSS

NOT SOLD SEPARAT

Tool

1шт.

22

NSS

NOT SOLD SEPARAT

Shield

1шт.

23

J934486

SERVICE KIT

Rear, Incl. 24, 24A, 25

1шт.

24

NSS

NOT SOLD SEPARAT

Tool

1шт.

24a

NSS

NOT SOLD SEPARAT

Tool, Not Illustrated

1шт.

25

J933262

OIL SEAL,130mm ID x 150.44mm OD x 14.73mm Thk

1шт.

26

A77810

SERVICE KIT

Rear, Incl. 27, 28

1шт.

27

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

28

NSS

NOT SOLD SEPARAT

Seal

1шт.

Выбрано товаров: 47
