Запчасти Case 580M (02-20) - CYLINDER HEAD COVERS - 4-390/4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

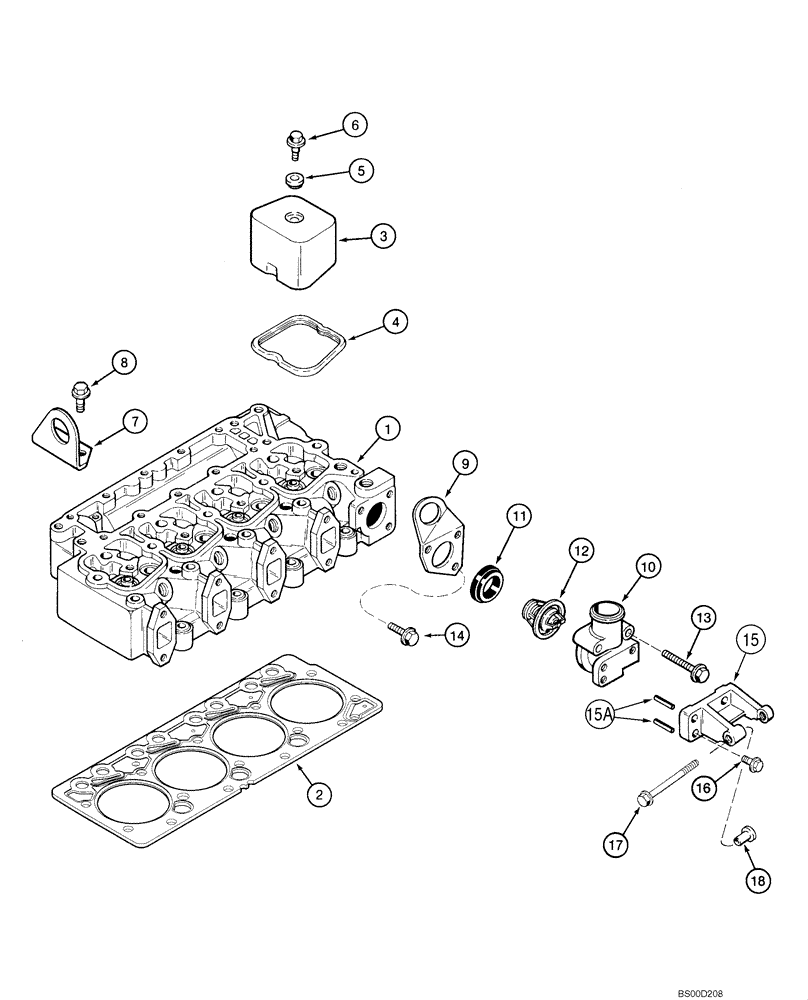

Схема запчастей Case 580M - (02-20) - CYLINDER HEAD COVERS - 4-390/4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
18
1
15
17
13
5
9
4
2
14
11
3
15a
6
16
12
10
8
7

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

Head, See Figure(s) 02-21, 02-22

1шт.

2

J283333

CYLINDER HEAD GASKET,2.32mm Thk

Standard

1шт.

2

J283336

GASKET

0,25 mm, Notch 1

1шт.

2

J283338

GASKET

0,50 mm, Notch 2

1шт.

3

J928404

COVER

4шт.

4

J930906

GASKET

4шт.

5

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

4шт.

6

J907049

BOLT,Hex

M8 x 21

4шт.

6a

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16"), Use with J907049, Not illustrated

4шт.

7

J908118

BRACKET

Rear

1шт.

8

844-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 8.8

2шт.

9

J903757

BRACKET

Front

1шт.

10

J285102

HOUSING

1шт.

A77736

THERMOSTAT

Incl. 11, 12

1шт.

11

J923331

GASKET

1шт.

12

NSS

NOT SOLD SEPARAT

Thermostat

1шт.

13

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

2шт.

14

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

1шт.

15

J287096

SUPPORT

Incl.15A; Replaces J285113

1шт.

15a

838-5310

LOCK PIN,M3 x 10, Slotted

2шт.

16

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

3шт.

17

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

4T-390 Emmision Certified Engine, Models with Viscous Drive

1шт.

18

J902469

SPACER

4T-390 Emmision Certified Engine, Models With Viscous Drive

1шт.

Выбрано товаров: 23
