Запчасти Case 580M (02-19) - BALANCER, ENGINE - 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

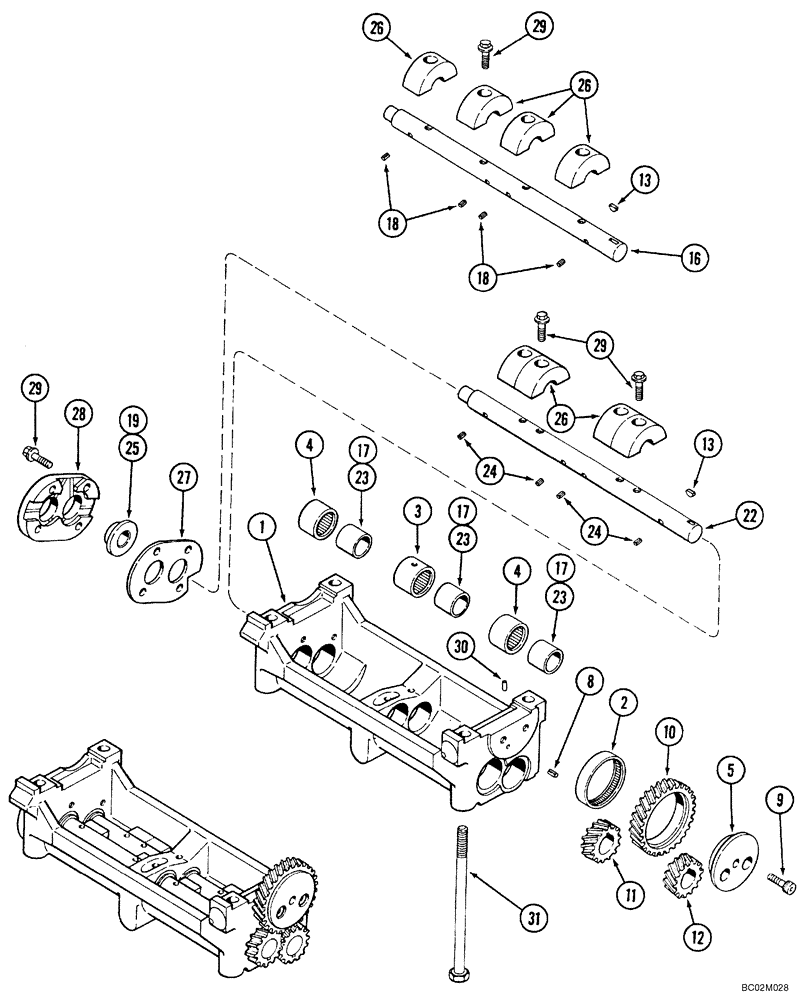

Схема запчастей Case 580M - (02-19) - BALANCER, ENGINE - 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
13
26
17
17
3
23
27
17
4
1
8
26
29
4
29
18
28
12
23
2
23
25
11
26
24
24
19
5
18
10
16
31
22
9
29
30
13

Артикул

Название

Примечание

Количество

J963388

BALANCER

Engine; Incl. 1 - 29

1шт.

1

J285651

HOUSING

1шт.

2

J901352

BEARING, NEEDLE

1шт.

3

J906378

BEARING, NEEDLE

2шт.

4

J907201

BEARING, NEEDLE

4шт.

5

J907572

RETAINER

Gear, Idler

1шт.

8

J904701

PIN, ROLL

1шт.

9

864-10030

HEX SOC SCREW,M10 x 30mm, Cl 8.8

2шт.

10

J907571

GEAR, IDLER

GEAR,IDLE

1шт.

11

J906064

GEAR

Upper

1шт.

12

J906065

GEAR

Lower

1шт.

13

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

2шт.

J906376

SHAFT ASSY.

BALANCER ASSY; Upper; Incl. 16 - 19

1шт.

16

J906373

SHAFT

Upper

1шт.

17

J906069

RACE

Bearing, Inner

3шт.

18

J906072

PIN

Spiral

4шт.

19

J906068

COLLAR

Thrust

1шт.

J906377

SHAFT ASSY.

BALANCER ASSY; Lower; Incl. 22 - 25

1шт.

22

J906374

SHAFT

Lower

1шт.

23

J906069

RACE

Bearing, Inner

3шт.

24

J906072

PIN

Spiral

4шт.

25

J906068

COLLAR

Thrust

1шт.

26

J906073

WEIGHT

Counterbalance

8шт.

27

J906066

PLATE

Thrust

1шт.

28

J906067

PLATE

Thrust

1шт.

29

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

12шт.

30

J907307

DOWEL

Pin, 6 x 13 mm

1шт.

31

J927949

FLANGE BOLT,Hex, M12 x 1.5 x 231mm, Gr 12.9

Flange, M12 x 231

4шт.

Выбрано товаров: 28
