Запчасти Case 580M (09-83) - DECALS - LATIN AMERICAN SPANISH (09) - CHASSIS/ATTACHMENTS

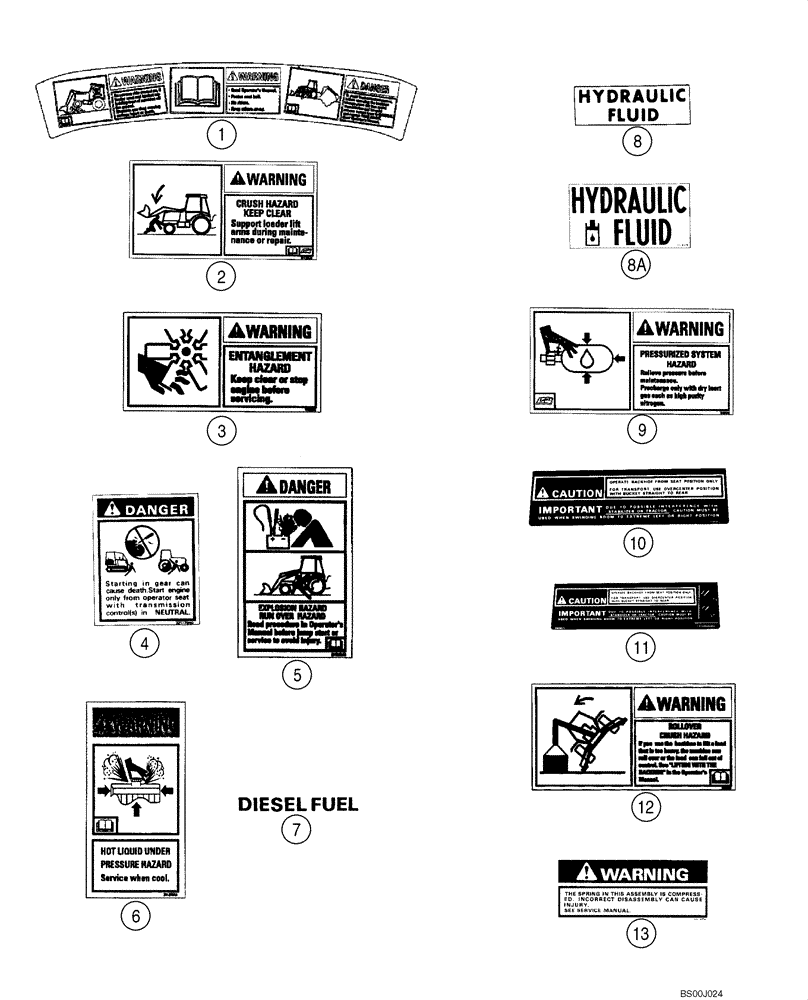

Схема запчастей Case 580M - (09-83) - DECALS - LATIN AMERICAN SPANISH (09) - CHASSIS/ATTACHMENTS
1
3
11
10
5
4
13
9
8a
7
6
8
2
12

Артикул

Название

Примечание

Количество

1

398600A1

WARNING DECAL

Warning/Warning/Danger; Front, With Ride Control; Do Not Turn Ride Control On/Read Operator's Manual/To Avoid Inadvertent Movement

1шт.

2

398578A1

WARNING DECAL

Crush Hazard; Keep Clear; Support Loader Lift Arms During Maintenance

1шт.

3

398580A1

WARNING DECAL

Entanglement Hazard, Fan; Keep Clear or Stop Engine Before Servicing

2шт.

4

398674A1

WARNING DECAL

Starting In Gear

1шт.

5

398582A1

DANGER DECAL

Jump Start

2шт.

6

398570A1

WARNING DECAL

Hot Liquid Under Pressure

2шт.

7

398667A1

DECAL

Diesel Fuel

1шт.

8

398665A1

DECAL

Hydraulic Fluid

1шт.

8a

321-6376

DECAL

Hydraulic Fluid, English Decal Only

1шт.

9

398572A1

WARNING DECAL

Ride Control Accumulator

1шт.

10

398677A1

CAUTION DECAL

For All Models With Foot Swing Backhoe Controls and Standard Backhoe Models With Hand Swing

1шт.

11

398669A1

CAUTION DECAL

Extendahoe Backhoe Models With Hand Swing

1шт.

12

398574A1

DECAL

Rollover Crush Hazard; If You Use The Backhoe To Lift A Load

1шт.

13

398670A1

WARNING DECAL

Seat Spring

1шт.

Выбрано товаров: 14
