Запчасти Case 580M (09-81) - DECALS - CANADIAN FRENCH (09) - CHASSIS/ATTACHMENTS

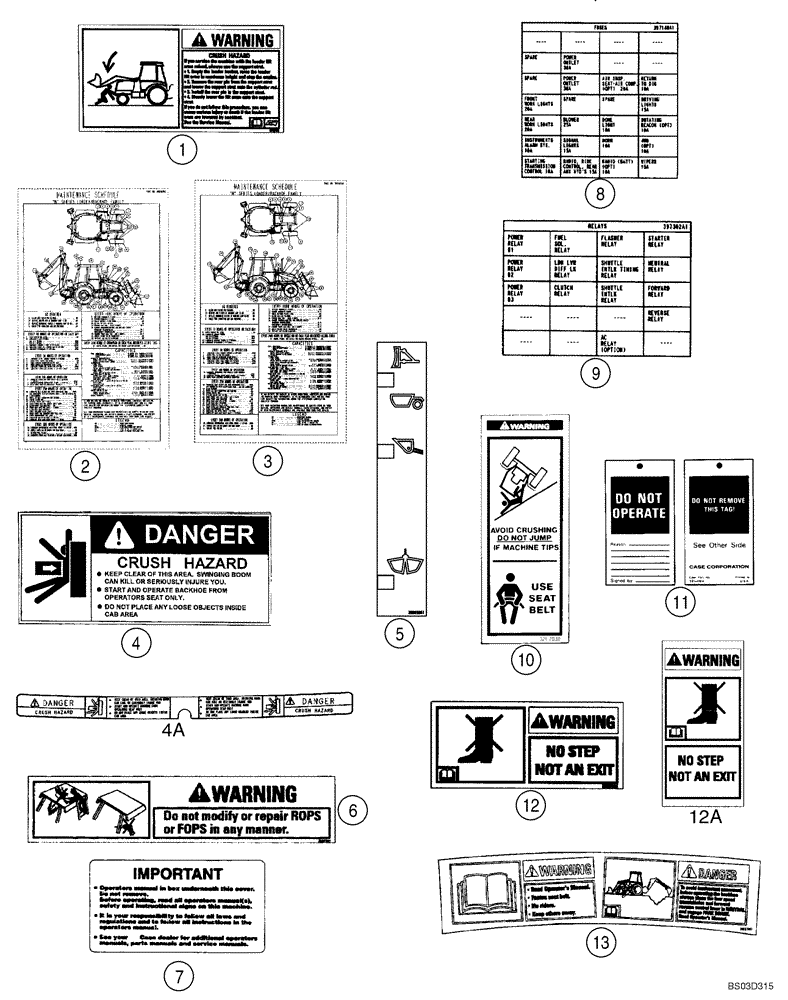

Схема запчастей Case 580M - (09-81) - DECALS - CANADIAN FRENCH (09) - CHASSIS/ATTACHMENTS
13
6
1
7
5
9
8
4
12a
11
3
10
12
4a
2

Артикул

Название

Примечание

Количество

1

398577A1

WARNING DECAL

Crush Hazard; Loader Arm Support Strut

1шт.

2

404805A1

DECAL

Maintenance Schedule; Supplied by Parts and Components; Used With D138954 2WD Front Axle; If Used

1шт.

2

419753A1

DECAL

Maintenance Schedule; If Used

1шт.

2

451599A1

DECAL

Maitenance Schedule; With Balanced Engine; If Used

1шт.

3

398588A1

Maintenance Schedule; Supplied by Parts and Components; Used With 377979A1 2WD Front Axle

1шт.

4

398653A1

DECAL

Crush Hazard; Keep Clear Of This Area; Swinging Boom; If Used

2шт.

4a

86992979

DANGER DECAL

Crush Hazard; If Used

1шт.

5

398658A1

DECAL

Clam Bucket Position

1шт.

6

389730A1

WARNING DECAL

Do Not Modify or Repair ROPS or FOPS In Any Manner

1шт.

7

398663A1

IMPORTANT DECAL

Operator's Manual In Box Underneath This Cover; Glove Box Lid

1шт.

8

398595A1

DECAL

Fuse Location

1шт.

9

398597A1

DECAL

Relay

1шт.

10

398673A1

WARNING DECAL

Avoid Crushing; Do Not Jump / Use Seat Belt

2шт.

11

321-5675

TAG

Do Not Operate

1шт.

12

398586A1

DECAL

50 x 110; No Step / Not An Exit; If Used

2шт.

12a

86992978

WARNING DECAL

54 x 110; No Step/Not An Exit; If Used

2шт.

13

398599A1

WARNING DECAL

Warning/Danger; Read the Operator's Manual

1шт.

Выбрано товаров: 17
