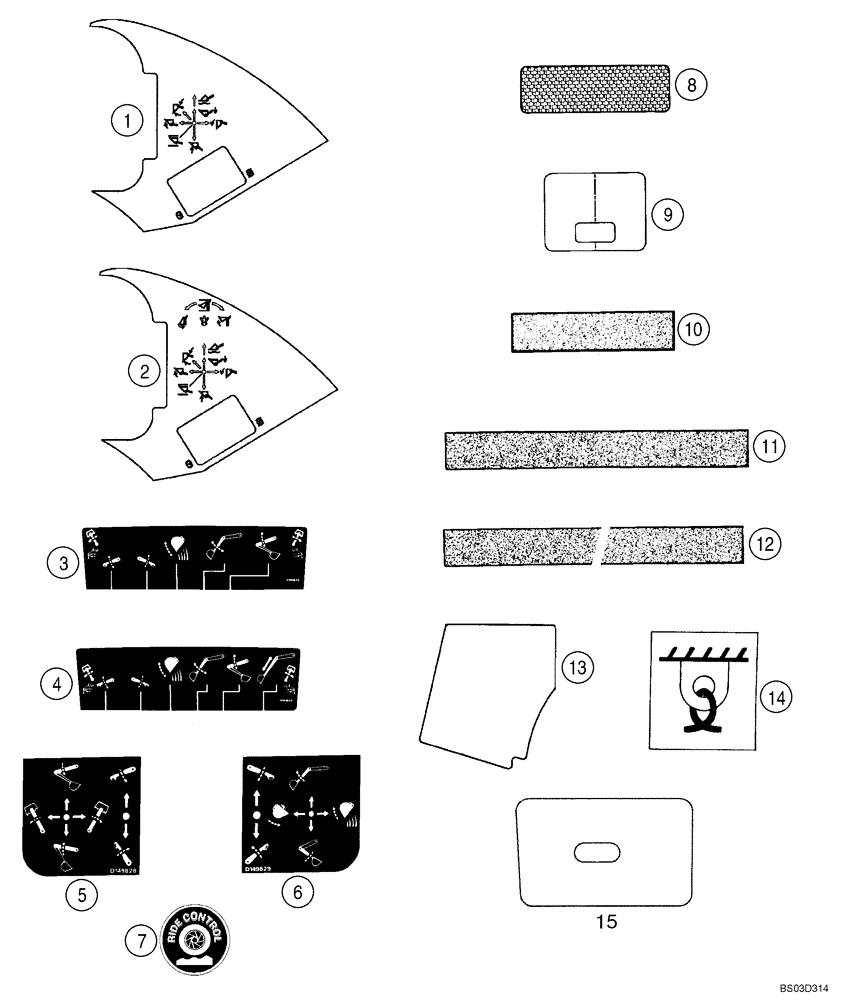

Запчасти Case 580M (09-77) - DECALS (09) - CHASSIS/ATTACHMENTS

1

384930A2

DECAL

Two Function Loader Control

1шт.

2

384931A2

DECAL

Three Function Loader Control

1шт.

3

D149824

DECAL

Upper, Standard Backhoe Control Pattern

1шт.

4

D149825

DECAL

Upper, Extendahoe Control Pattern, With Foot Swing

1шт.

5

D149828

DECAL

Upper, Standard Backhoe Control Pattern, With Hand Swing; Left-Hand Side Of Console

1шт.

6

D149829

DECAL

Upper, Standard Backhoe Control Pattern, With Hand Swing; Right-Hand Side Of Console

1шт.

7

304083A1

DECAL

Ride Control

2шт.

8

449842A1

REFLECTOR,160mm x 50.8mm H - Red

2 x 6-5/16 in, Red; Reflector; Replaces D87870

2шт.

9

192450A1

DECAL

Clear Vinyl; Hood

1шт.

10

D55216

PAD,2" x 9"

2 x 9 in; Cab Models (4); Canopy Models (11)

4-9шт.

11

D80270

ANTI-SKID STRIP,635mm / 25 Inch

Non-Slip, 635 mm (25 in) x 51 mm (2 in)

3-4шт.

12

307348A1

ANTI-SKID STRIP

700 mm (27-9/16"), 40 gallon fuel tank

2шт.

13

367848A2

PAD

Anti-Skid; Canopy Models; Replaces 367848A1

1шт.

14

139728A1

DECAL

Tie Down

4шт.

15

406723A1

DECAL

Poly Film; Lock-Up Covers; Canopy Models

1шт.
