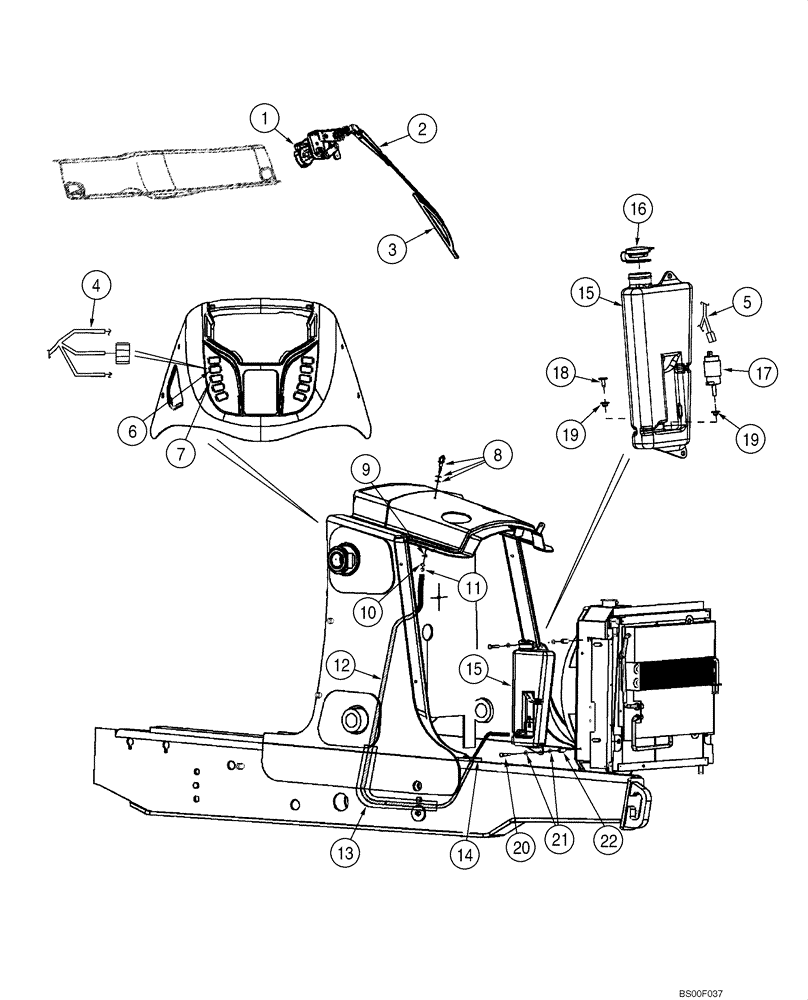

Запчасти Case 580M (09-73) - CANOPY, ROPS - WIPER, FRONT AND WINDSHIELD WASHER (09) - CHASSIS/ATTACHMENTS

1

395137A1

WIPER MOTOR

MOTOR, WIPER 12V

1шт.

814-6050

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8

2шт.

892-11006

LOCK WASHER,M6

2шт.

2

D128745

WIPER ARM

ARM, WIPER

1шт.

3

236194A1

WIPER BLADE

BLADE, WIPER

1шт.

404617A1

WIRE HARNESS

Front Lamps and Wiper

1шт.

4

390519A3

HARNESS

Front Console Options

1шт.

5

390520A2

HARNESS

Chassis Options

1шт.

6

386785A1

WINDSHIELD WIPER SWI

Front Wiper

1шт.

7

386787A1

WINDSHIELD WASHER SW

1шт.

8

284154A1

NOZZLE,3/8" - 16

Includes a Steel and Rubber Washer Which Are Not Serviced Separately

1шт.

9

492-11038

LOCK WASHER,3/8"

1шт.

10

425-106

NUT,3/8"-16, Cl 5

1шт.

11

305578A1

CLAMP,7.65mm - 8.76mm

If Used

1шт.

12

386716A2

HOSE,4.76 mm ID x 1830.00 mm

Cut From 1968141CX

1шт.

13

386718A2

GUARD

1500 mm (59-1/16 in); Cut From 397155A1

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

2шт.

389424A3

RESERVOIR

Windshield Washer, Incl. Ref 15 - 18

1шт.

15

386721A4

RESERVOIR

1шт.

16

307130A1

COVER

1шт.

17

1964696C2

PUMP

1шт.

18

196831A1

PLUG

1шт.

19

196830A1

GROMMET

2шт.

20

806-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

M8 x 50; 10.9

2шт.

21

132215A1

SPACER

2шт.

22

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.
