Запчасти Case 580M (09-68) - CAB - AIR CONDITIONING LINES, EVAPORATOR CORE (09) - CHASSIS/ATTACHMENTS

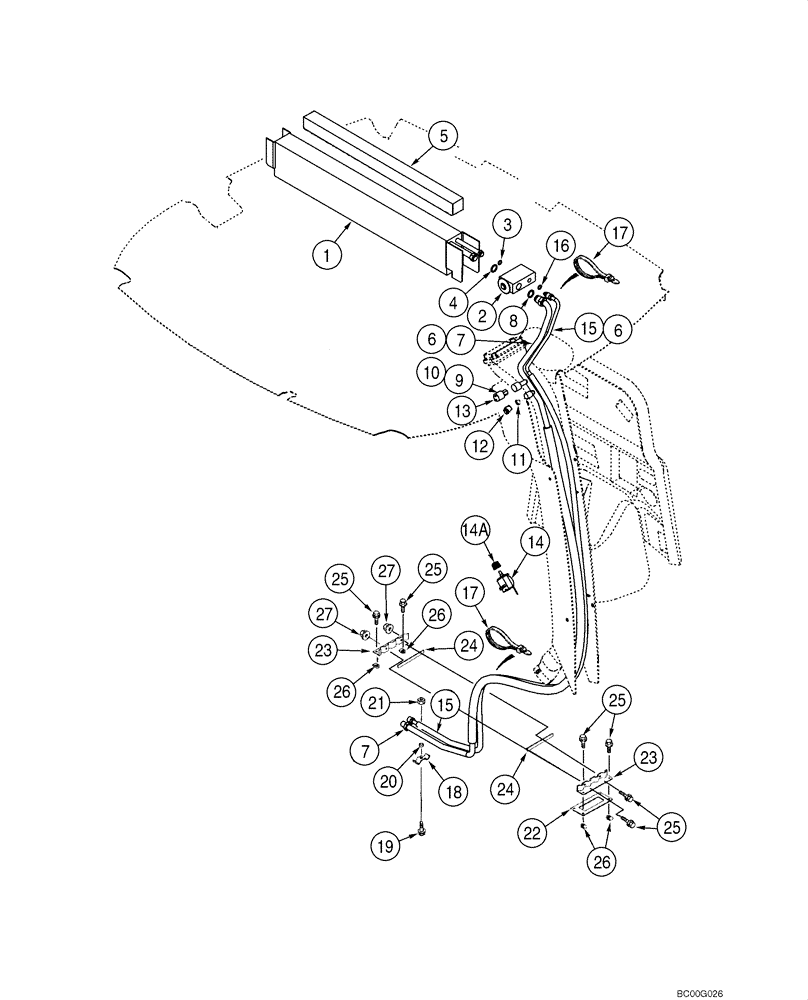

Схема запчастей Case 580M - (09-68) - CAB - AIR CONDITIONING LINES, EVAPORATOR CORE (09) - CHASSIS/ATTACHMENTS
14a
16
19
7
24
13
26
22
8
27
15
10
3
21
17
15
14
25
12
6
5
7
27
20
23
25
11
25
18
1
23
2
26
9
26
4
17
24
6
25

Артикул

Название

Примечание

Количество

363832A5

EVAPORATOR

Incl. Ref 1 - 4; Not Available as An Assembly; Order Components

1шт.

1

360263A4

EVAPORATOR

1шт.

2

386535A1

VALVE

1шт.

3

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16

1шт.

4

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

1шт.

5

406287A1

SEALING STRIP,19mm W x 736mm L x 19mm Thk

19 x 19 x 736 mm, Adhesive Back; Models With Heat and Air, Locate Seal On Top Of Core

1шт.

345-621

TAPE

2 x 6 in

2шт.

7

360257A1

A/C HOSE,0.625 Inch OD x 0.049 Inch Wall, Thermoplastic Core

Suction; Incl. Ref 8 - 12

1шт.

8

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

1шт.

9

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16, Valve Core

1шт.

10

1250594C1

CORE

Low Pressure Switch

1шт.

11

1250594C1

CORE

Low Side Service Port

1шт.

12

122553A1

CAP

1шт.

13

122579A1

SWITCH, A/C LOW PRES

A/C Low; Yellow Wire; Yellow Wire Switch No Longer Used, Order 87540279 Service Kit Below, Ref 28 - 31 To Convert

1шт.

14

370381A1

ROTARY SWITCH

Temperature Control; Air Conditioning

1шт.

14a

400379A1

KNOB,23mm

1шт.

15

360256A1

A/C HOSE,0.375 Inch OD x 0.035 Inch Wall, Thermoplastic Core

Pressure, Incl. Ref 16

1шт.

16

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

2шт.

18

D143427

CLAMP

1шт.

19

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

20

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

1шт.

21

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

22

124011A1

GASKET,149mm L x 64mmL x 5mm L

1шт.

23

123980A1

SHIN

Heater and Air Conditioning Hoses

2шт.

24

181979A1

SEALING STRIP

2шт.

25

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

6шт.

26

833-40406

NUT,M6, U

4шт.

27

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

2шт.

87540279

SERVICE KIT

A/C Low Pressure Cutout; For Models with 122579A1 Yellow Wired A/C Low Pressure Switch to Convert to Blue Wired 87000228 Switch; Incl. Ref 28 - 31, Plus Instructions

1шт.

28

87000228

SWITCH, A/C LOW PRES

Blue Wire

1шт.

29

87538167

WIRE HARNESS

Service; A/C Low Pressure Switch; Connects to A/C Compressor and A/C Relay

1шт.

30

401949A1

FASTENER

Xmas Tree Clips, B Post Cover; Not Illustrated

5шт.

31

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Tie; Not Illustrated

10шт.

Выбрано товаров: 34
